Xray Tube

The Xray tube stands as the heart of modern medical imaging and industrial inspection, serving as the essential vacuum device that converts electrical energy into high-energy electromagnetic radiation. Without this critical component, diagnostic radiology, security scanning, and non-destructive testing would simply not exist. Understanding the inner workings, composition, and maintenance requirements of an Xray tube is vital for medical professionals, engineers, and facility managers alike, as it dictates the quality of imaging and the overall operational efficiency of the entire imaging system.

The Fundamental Physics of an Xray Tube

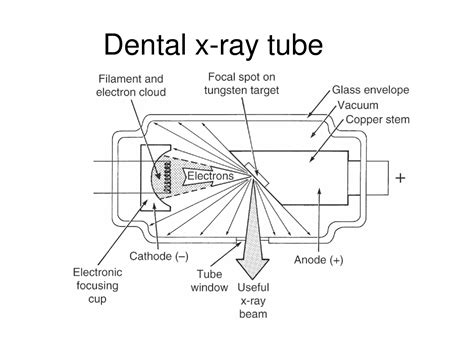

At its most basic level, the Xray tube operates through a process of energy transformation. Within a vacuum-sealed glass or metal envelope, two primary electrodes are present: the cathode (negative electrode) and the anode (positive electrode). When high voltage is applied, the cathode is heated, causing it to emit electrons through a process known as thermionic emission. These electrons are then accelerated at extreme speeds toward the anode, often made of a target material like tungsten. Upon striking the anode, the kinetic energy of these electrons is abruptly stopped, resulting in the production of heat (about 99%) and X-ray radiation (about 1%).

Key Components of the Xray Tube

To produce high-quality, diagnostic-grade images, the Xray tube relies on several precision-engineered components working in harmony:

• Cathode Assembly: Usually composed of a filament (often made of thoriated tungsten) that provides the electron source through heating.
• Anode Assembly: The target where electron impact occurs. Many modern tubes use a rotating anode design to distribute heat across a larger surface area, preventing damage.
• Vacuum Envelope: A durable glass or metal housing that maintains a vacuum, preventing the electrons from interacting with air molecules, which would scatter them and reduce efficiency.
• Tube Housing: An outer layer made of lead or other shielding materials that prevents X-rays from escaping in unwanted directions and provides cooling support.

Comparative Analysis of Tube Designs

Choosing the right Xray tube depends heavily on the application, whether for general radiography, computed tomography (CT), or industrial NDT (Non-Destructive Testing). The following table illustrates the key differences between various tube configurations:

⚠️ Note: Always check the cooling system status before initiating a high-load study, as the life expectancy of an Xray tube is significantly shortened by repeated overheating.

Maintenance and Longevity Optimization

Extending the lifespan of an Xray tube requires strict adherence to operating protocols. Because these components represent a significant financial investment for hospitals and clinics, preventing premature failure is a top priority. Proper maintenance involves monitoring the “heat units” (HU) accumulated during a session. Most modern control consoles are equipped with sensors that track the thermal state of the anode; ignoring these warnings can lead to pitting of the target material, which permanently degrades image quality.

Best practices for prolonging tube life include:

• Tube Warm-up Procedures: Always follow the manufacturer’s recommended warm-up sequence at the start of the day to prevent cracking the anode due to thermal shock.
• Consistent Cooling: Ensure the oil cooling system is unobstructed and that the heat exchanger fans are operational.
• Optimized Exposure Settings: Avoid using extreme mAs or kVp settings unless absolutely necessary, as these stress the filament and target significantly.

Modern Advancements in Xray Technology

Recent innovations in Xray tube technology have focused on modular designs and advanced material sciences. The shift from glass to metal-envelope tubes has allowed for more robust vacuum stability and improved thermal dissipation. Furthermore, advancements in micro-focus Xray tubes have revolutionized 3D printing inspection and electronics testing, allowing for imaging at a microscopic level that was previously impossible. Digital control systems now allow for “smart” exposure, where the tube automatically adjusts output to minimize patient radiation dose while maintaining peak diagnostic clarity.

💡 Note: When replacing an Xray tube, ensure the tube insert is compatible with the existing generator calibration to avoid potential safety risks or hardware malfunction.

Safety Protocols and Shielding

Radiation safety is non-negotiable when dealing with high-voltage Xray tube operation. The housing must contain the primary beam, and secondary leakage radiation must be strictly controlled through heavy lead lining. Regular quality assurance (QA) tests—including checks for radiation leakage and mechanical alignment—are essential to comply with international radiation safety standards. Technicians should always wear appropriate dosimetry badges and maintain distance during exposures to ensure cumulative dose levels remain well below occupational limits.

The continuous evolution of imaging technology places the Xray tube at the center of medical progress. By balancing the physical demands of high-energy electron bombardment with precise thermal management and rigorous maintenance, facilities can achieve reliable, high-resolution diagnostic results. Whether used in a small dental clinic or a high-traffic hospital CT suite, the longevity and performance of the tube are directly linked to how well the operator manages thermal thresholds and adheres to safety-first protocols. As material science continues to advance, we can expect future iterations of these essential devices to become even more efficient, durable, and precise, further cementing their role as the cornerstone of visual diagnostics.
