Welding Rigs

For professional welders and fabrication experts, the backbone of a successful mobile operation is the setup of their welding rigs. Whether you are working on massive cross-country pipeline projects, agricultural machinery repair, or remote construction sites, your truck is not just a vehicle—it is a self-contained mobile workshop. A well-engineered rig minimizes downtime, improves safety, and maximizes the quality of your welds in the most challenging environments. Investing time into the proper organization and outfitting of these units is what separates a novice contractor from a high-earning, efficient professional.

Essential Components of High-Performance Welding Rigs

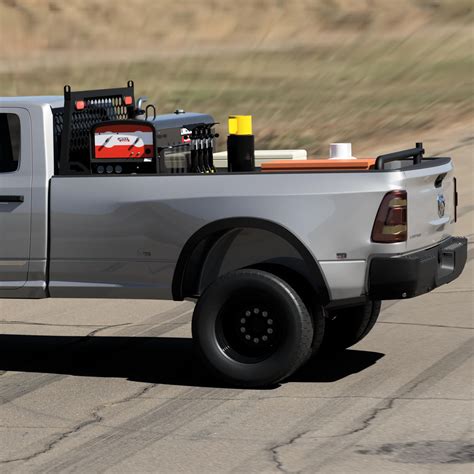

Building effective welding rigs requires a balance between heavy-duty functionality and organizational efficiency. The primary goal is to ensure that every tool, gas cylinder, and power source is securely mounted and easily accessible when you arrive on the job site. Most professional setups are built on heavy-duty pickup trucks or flatbed chassis, providing the necessary payload capacity for heavy equipment.

Key components that should be integrated into your build include:

• Welding Power Source: The engine-driven welder is the heart of your operation, providing the high-amperage output needed for SMAW, GTAW, or GMAW processes.
• Storage Solutions: Custom-fabricated steel or aluminum toolboxes are essential for keeping grinders, clamps, levels, and consumables protected from the elements.
• Material Racks: A sturdy overhead rack allows you to transport pipes, steel beams, and various stock materials without compromising the space in your truck bed.
• Gas Management: Securely mounted racks for oxygen, acetylene, or shielding gas cylinders are critical for safety and compliance with workplace regulations.
• Electrical Outlets: Integrating an inverter or auxiliary power from your welder allows you to run power tools like plasma cutters, lights, or battery chargers.

Selecting the Right Welding Equipment

When selecting the power source for your welding rigs, you must consider the duty cycle and the versatility of the machine. An engine-driven welder that offers multi-process capabilities is often a smarter investment than a single-purpose unit. It allows you to pivot between stick welding on a pipeline and TIG welding on sensitive stainless steel components without needing to head back to the shop.

The following table outlines standard equipment considerations for different types of mobile welding operations:

Safety and Organization Strategies

Safety within your welding rigs is non-negotiable. Every piece of equipment, from the leads to the cylinders, must be lashed down securely. In the event of a sudden stop or an uneven terrain shift, loose equipment can become dangerous projectiles. Furthermore, maintaining a clean workspace inside your truck prevents the frustration of searching for tools during a time-sensitive job.

⚠️ Note: Always ensure your engine-driven welder is positioned to allow for adequate ventilation of exhaust gases, preventing carbon monoxide buildup in enclosed compartments.

Optimizing Workflow on the Job Site

Efficiency in welding rigs is often determined by the placement of your cables. Using high-quality, lightweight cable reels can save you significant time during the setup and breakdown process. Instead of spending twenty minutes untangling thick, heavy welding leads, you can have your station ready in minutes, allowing you to focus on the weld itself. Additionally, consider installing LED work lights on the perimeter of your rig for night-shift repairs, ensuring you maintain a clear view of your work area at all times.

Another often overlooked aspect is the grounding strategy. A permanent, easily accessible ground lug on the frame of your truck can expedite the connection process. When your welding rigs are organized to support a rapid workflow, you can handle more jobs per week, directly impacting your bottom line and reputation in the industry.

Advanced Customizations and Maintenance

For those looking to take their setup to the next level, custom fabrication is the way to go. Many professional rig welders opt for custom-built “bed liners” that feature integrated workbenches and vise mounts. This turns the entire truck bed into a stable platform where you can perform precision cuts, grinding, and fit-up tasks. Maintenance is equally vital; regular checks of your rig’s hydraulic systems, electrical connections, and fuel lines will ensure you aren’t left stranded in the middle of a remote project.

💡 Note: Periodically inspect your welding cable insulation for nicks or exposed wires, as these can cause shorts against the metal truck bed or lead to current loss.

Ultimately, the effectiveness of your career as a field welder is inextricably linked to the quality and reliability of your equipment setup. By prioritizing a logical layout, investing in high-grade power sources, and maintaining a strict safety and organizational standard, you transform your truck into a high-functioning asset. The time and capital invested in your welding rigs will pay dividends through increased speed, improved weld quality, and the professional reliability that keeps clients returning to your services year after year. Focus on modularity and durability to ensure that your rig remains a cornerstone of your business for many projects to come.
