In the vast landscape of electrical engineering, few concepts are as fundamental or as frequently utilized as the Voltage Divider Law. Whether you are a hobbyist soldering your first circuit on a breadboard or an experienced engineer designing complex signal conditioning paths, this simple yet powerful rule serves as the cornerstone for understanding how potential differences are distributed across series components. By grasping this principle, you gain the ability to manipulate voltages precisely, enabling you to interface disparate components, stabilize power lines, and create sophisticated analog sensors.
What is the Voltage Divider Law?
At its core, the Voltage Divider Law is a simple circuit configuration that turns a higher voltage into a lower one. It uses two or more resistors connected in series across a voltage source to create an output voltage that is a fraction of the input. This is particularly useful in electronics when you need to send a signal to a microcontroller that requires a lower voltage than the source provides, or when creating reference voltages for comparators and other sensitive components.
The beauty of this law lies in its simplicity. Because the same current flows through resistors in series, the voltage drop across each component is directly proportional to its resistance. This means that if you know your input voltage and the values of your resistors, you can calculate the exact voltage at the junction point between them using a standard algebraic formula.
The Mathematical Formula

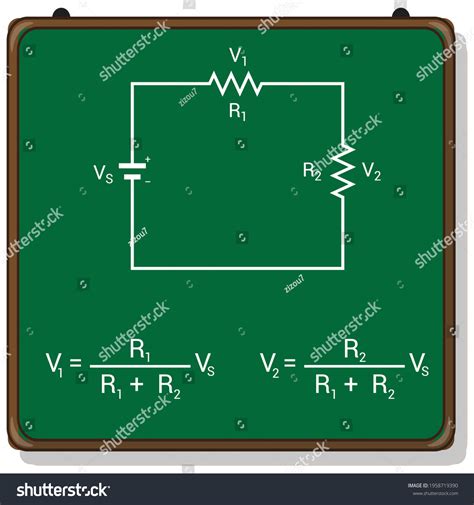

To calculate the output voltage ($V_{out}$) when you have two resistors in series ($R_1$ and $R_2$) connected to an input voltage ($V_{in}$), you apply the following formula:
$V_{out} = V_{in} cdot left( frac{R_2}{R_1 + R_2} ight)$
In this equation, $R_2$ is the resistor across which you are measuring the output voltage. As you can see, the output is essentially a ratio of $R_2$ compared to the total resistance of the circuit ($R_1 + R_2$). This demonstrates that if $R_2$ is very large compared to $R_1$, the output voltage will be very close to the input voltage, whereas if $R_2$ is small, the output voltage will drop significantly.
Key Components and Configuration
Before diving deeper, it is important to understand the layout. The circuit consists of:
- Voltage Source ($V_{in}$): The power supply providing the potential difference.
- Series Resistors: Typically denoted as $R_1$ and $R_2$.
- Output Node: The connection point between $R_1$ and $R_2$ where the divided voltage is tapped.
- Reference Point (Ground): The return path for the circuit, typically connected to the bottom of $R_2$.
Understanding these elements helps in visualizing how the current flows. The current enters $R_1$, experiences a voltage drop, continues through $R_2$, experiences another drop, and returns to ground. By measuring the voltage between the junction and ground, you are essentially measuring the potential drop specifically across $R_2$.
Common Applications
The Voltage Divider Law is ubiquitous in electronics design. Its applications range from simple signal attenuation to complex sensor integration. Below is a table highlighting some of the most common practical uses:
| Application | Primary Purpose |
|---|---|
| Sensor Interfacing | Adapting variable resistance sensors (like LDRs or Thermistors) to a readable voltage. |
| Level Shifting | Reducing a 5V signal to a 3.3V signal for microcontroller compatibility. |
| Potentiometers | Creating an adjustable voltage reference by moving a wiper contact along a resistive track. |
| Reference Voltage | Setting precise bias points for transistors and operational amplifiers. |
⚠️ Note: Always ensure that the load connected to the output of your voltage divider does not draw significant current. If the load resistance is comparable to $R_2$, it will alter the equivalent resistance of that leg, causing the output voltage to drop unexpectedly.
Limitations and Considerations
While the Voltage Divider Law is incredibly useful, it is not a "magic bullet" for power conversion. One major limitation is efficiency. Because the circuit dissipates energy through the resistors in the form of heat, it is not suitable for powering high-current devices. If you try to power a motor or a high-intensity LED strip using a voltage divider, you will likely burn out the resistors and experience massive voltage sag.
Furthermore, the output impedance of a voltage divider is relatively high. This means that if the circuit connected to the output node has low impedance, the voltage will fluctuate wildly. For applications requiring stable, high-current outputs, engineers prefer using dedicated voltage regulators or DC-DC buck converters, which manage energy far more efficiently.
Step-by-Step Practical Calculation
Let's walk through an example to solidify your understanding. Suppose you have a 12V power supply, and you need to provide a 5V signal for a sensor. You have a 1kΩ resistor available for $R_1$. To find the value for $R_2$, you rearrange the formula:
- Identify $V_{in} = 12V$, $V_{out} = 5V$, $R_1 = 1000Omega$.
- The ratio $frac{V_{out}}{V_{in}}$ is $frac{5}{12} approx 0.416$.
- Using the formula $V_{out} = V_{in} cdot (frac{R_2}{R_1 + R_2})$, you can solve for $R_2$.
- After algebraic simplification, $R_2 = R_1 cdot (frac{V_{out}}{V_{in} - V_{out}})$.
- Plugging in the numbers: $R_2 = 1000 cdot (frac{5}{7}) approx 714Omega$.
By selecting a 714Ω resistor (or the closest standard value, like 715Ω), you successfully create a divider that outputs approximately 5V.
💡 Note: When selecting resistors, always consider their power rating (wattage). If the voltage drop is significant, the resistors will get hot; ensure they can handle the power dissipation calculated by $P = frac{V^2}{R}$.
Design Best Practices
To maximize the effectiveness of your divider circuits, keep these tips in mind:
- Use Precision Resistors: If your application requires high accuracy (such as for ADC references), use 1% tolerance resistors rather than standard 5% or 10% parts.
- Mind the Environment: Resistors can change value due to temperature. If your circuit is used in extreme heat, consider the temperature coefficient of the components.
- Buffer the Output: If you are worried about the load affecting the voltage, connect the output node to a voltage follower (a type of op-amp circuit). This provides low impedance while maintaining the correct voltage level.
Mastering this fundamental concept empowers you to take control of the voltages within your projects. By understanding the math behind the Voltage Divider Law and respecting its limitations, you can ensure your circuits are robust, accurate, and reliable. Whether you are scaling down a digital signal or creating a reference point for an analog sensor, this simple network of resistors remains an indispensable tool in the electronics designer’s toolkit. Always double-check your calculations, verify the power requirements, and keep the output impedance in mind for your specific application, and you will find that this elegant solution solves a surprising number of circuit design challenges.
