When it comes to bicycle maintenance and performance, the braking system is arguably the most critical component for rider safety. Among the various types of rim brakes available, V brakes remain a gold standard for simplicity, stopping power, and ease of maintenance. Often found on mountain bikes, hybrids, and older trekking rigs, these linear-pull brakes provide a mechanical advantage that few other rim systems can match. Whether you are a casual commuter or an avid trail rider, understanding how your V brakes function—and how to keep them dialed in—is an essential skill for every cyclist.
What Are V Brakes and How Do They Work?

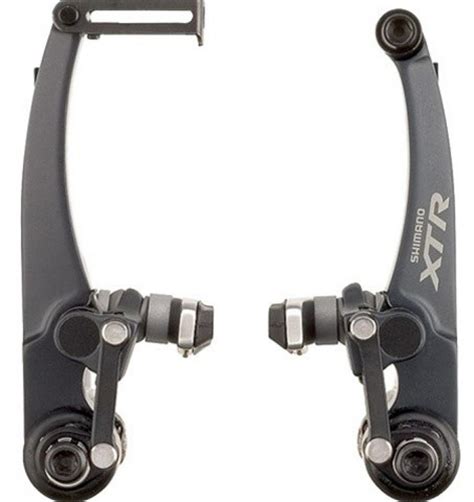

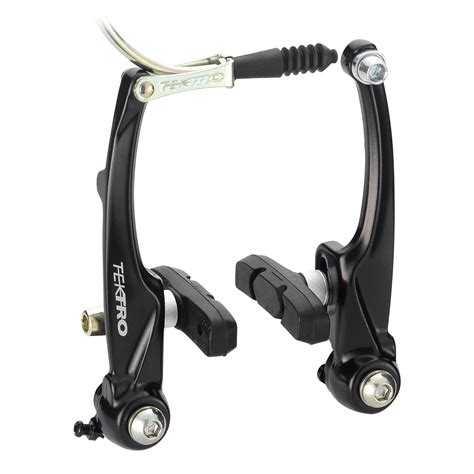

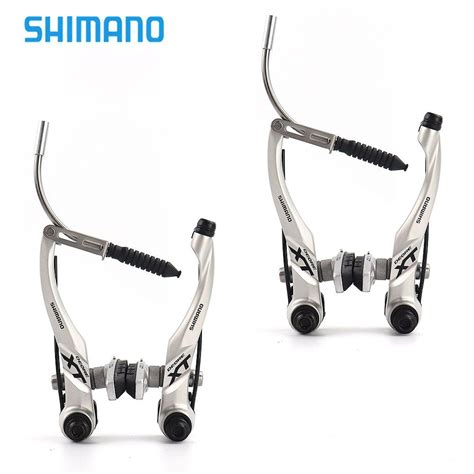

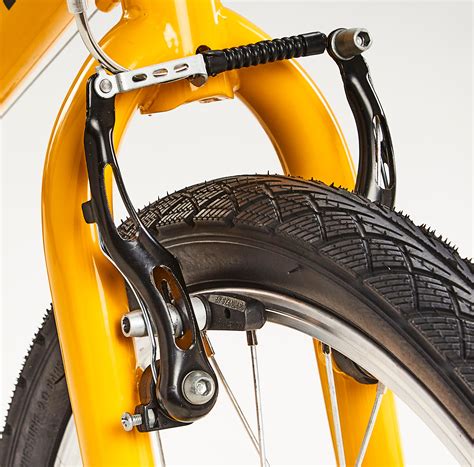

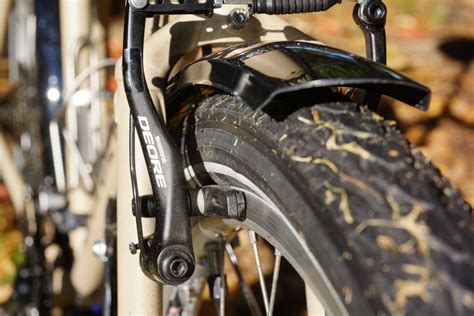

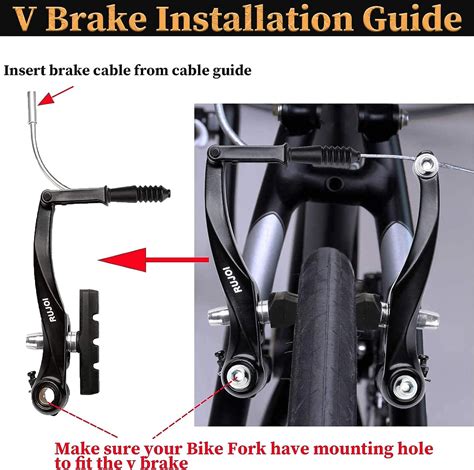

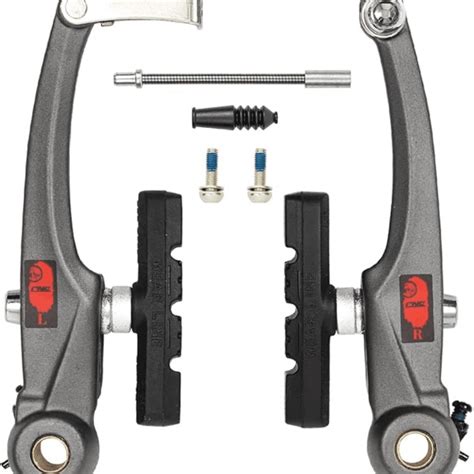

V brakes, technically referred to as linear-pull brakes, represent an evolution of the traditional cantilever brake. They consist of two arms mounted on frame pivots, connected by a cable that pulls the arms together to force the rubber brake pads against the rim of the wheel. The unique “V” shape is what gives them their common name, and this geometry allows for significant leverage, resulting in stronger braking force compared to older styles.
One of the primary advantages of this system is the direct cable pull. Because the cable housing stops at one arm and the bare cable attaches to the other, there is very little friction in the system, provided the cables are kept clean. This translates to a crisp, immediate feel at the brake lever, which is vital for quick stopping in emergency situations or tricky trail conditions.
The Benefits of Choosing V Brakes
If you are debating whether to upgrade or stick with your current setup, consider the following benefits that keep V brakes relevant in the age of hydraulic discs:
- Lightweight Design: Compared to heavy disc brake rotors and calipers, V brakes are incredibly light, making them perfect for weight-conscious builds.
- Simple Maintenance: You do not need a degree in mechanical engineering to adjust them. A simple screwdriver and an Allen key are usually all that is required.
- Cost-Effectiveness: Replacement parts, including pads and cables, are significantly cheaper than hydraulic disc brake components.
- Ease of Rim Inspection: Since the pads interact directly with the rim, you can easily inspect the wear on your braking surface without removing wheels.

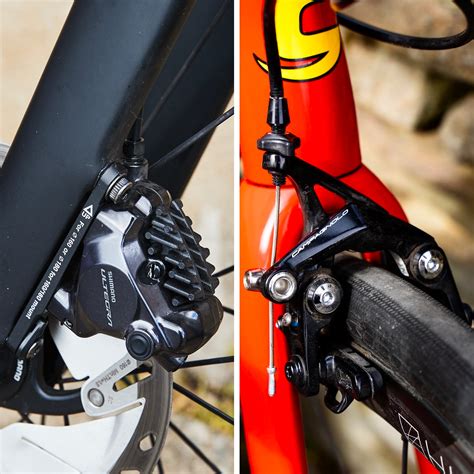

Comparison: V Brakes vs. Disc Brakes
To help you decide which system suits your riding style, refer to the table below for a quick breakdown of how V brakes stack up against common alternatives.
| Feature | V Brakes | Disc Brakes |
|---|---|---|
| Weight | Very Light | Heavier |
| Maintenance | Low/Easy | Moderate/Complex |
| Wet Weather Performance | Moderate | Excellent |
| Cost | Budget Friendly | High |
Essential Maintenance Steps for Your Brakes
Keeping your V brakes performing at their peak requires periodic check-ups. Follow these steps to ensure you maintain consistent stopping power throughout the riding season:

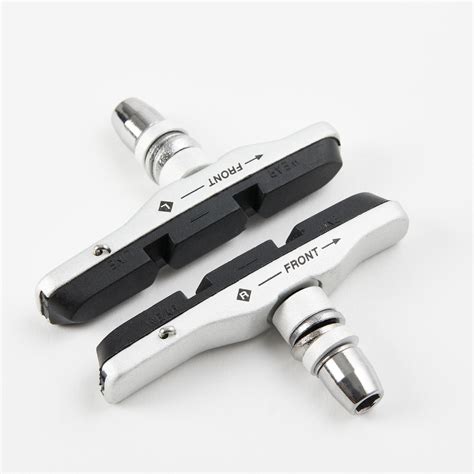

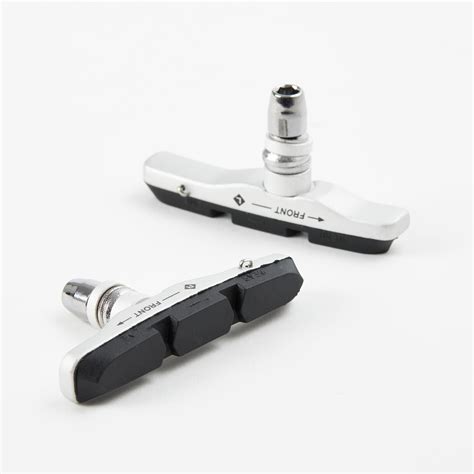

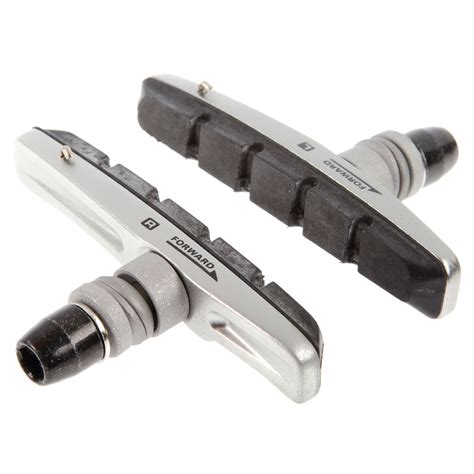

- Check Pad Wear: Look for the wear indicator lines on your brake pads. If the grooves have disappeared, it is time to replace them.
- Adjust Tension: If the brake levers feel “mushy” or pull all the way to the handlebar, use the barrel adjuster on the lever to tighten the cable tension.

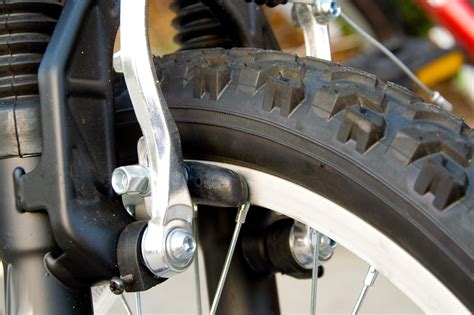

- Align the Pads: Ensure the pads hit the rim squarely, not the tire. Hitting the tire can cause a blowout, which is a major safety hazard.
- Clean the Rims: Wipe your rims down with isopropyl alcohol regularly to remove brake dust and road grime, which can make the brakes noisy or reduce friction.
⚠️ Note: Always ensure that your brake pads are set at least 1-2mm away from the rim surface when the lever is released to prevent constant rubbing and uneven wear.
Troubleshooting Common Issues
Even the best systems encounter problems occasionally. If you notice a high-pitched squeal, it is often due to the pads being parallel to the rim. To fix this, adjust the pads so the front edge touches the rim slightly before the back edge—this is known as toe-in, and it significantly reduces vibration and noise.

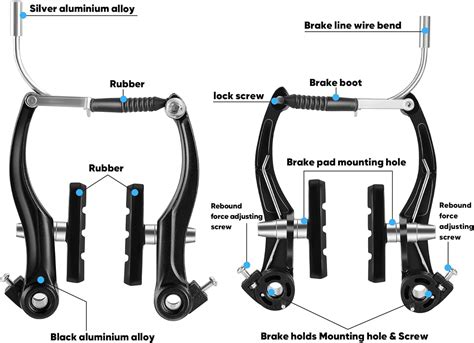

Another common issue is uneven pulling, where one arm moves more than the other. Look at the small adjustment screws on the side of each brake arm. By tightening the screw on the side that is pulling too far, you increase spring tension, which pushes that arm further away, effectively balancing the system.
If you find that the cable is fraying at the anchor bolt, it is highly recommended that you replace the cable immediately. A snapped brake cable is a dangerous scenario, especially on steep descents. Keeping a spare set of cables and housing in your toolkit is a small investment that provides peace of mind for long-distance rides.
Final Thoughts on Brake Performance
Mastering the maintenance of your braking system is one of the most rewarding aspects of cycling. Because V brakes are mechanical and straightforward, they offer a perfect learning platform for riders who want to understand how their machine operates. By regularly inspecting your pads, keeping the rims clean, and ensuring the cable tension is properly balanced, you can enjoy years of reliable performance. Whether you are navigating urban traffic or cruising on a gravel path, a well-tuned set of brakes ensures that you stay in total control of your ride, allowing you to focus on the road or trail ahead with confidence.
