Ultrasound Probe

The ultrasound probe acts as the essential "eyes" of any diagnostic imaging system. Often referred to as a transducer, this sophisticated piece of medical equipment is responsible for both transmitting high-frequency sound waves into the body and receiving the echoes that bounce back. Without a high-functioning probe, even the most advanced ultrasound machine would be unable to produce the clear, real-time images necessary for accurate clinical diagnoses. Whether used in cardiology, obstetrics, or general imaging, the quality and maintenance of this device are paramount to patient outcomes.

Understanding How an Ultrasound Probe Functions

At its core, the ultrasound probe relies on the piezoelectric effect. Inside the housing of the probe, a series of piezoelectric crystals are arranged in specific patterns. When an electrical current is applied, these crystals vibrate at high frequencies, creating ultrasonic sound waves. These waves travel into the body and reflect off internal tissues and structures. The probe then captures these returning echoes and converts them back into electrical signals, which the main computer processes into a visual image on the screen.

Different clinical applications require different types of probes. The shape, frequency range, and configuration of the crystals determine the probe's utility. For example, a curvilinear probe is typically used for deep abdominal imaging due to its wider field of view, while a linear probe is preferred for superficial structures like blood vessels or musculoskeletal tissue due to its high-frequency output.

Key Types of Ultrasound Probes and Their Uses

Choosing the correct ultrasound probe is critical for getting the right diagnostic data. Each type is engineered for specific anatomical depths and tissue densities. Below is a breakdown of the most common probe types found in clinical environments:

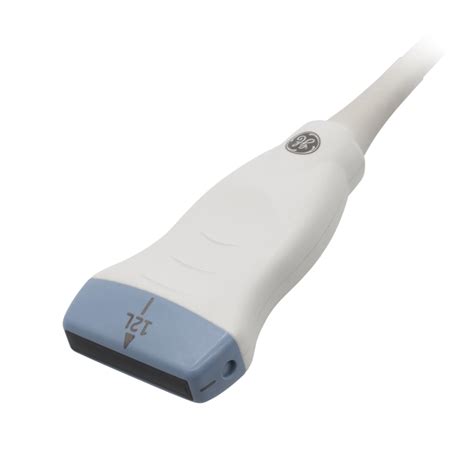

• Linear Array Probes: Best for superficial imaging, such as vascular studies, breast exams, and musculoskeletal evaluations. They offer high resolution but limited depth penetration.

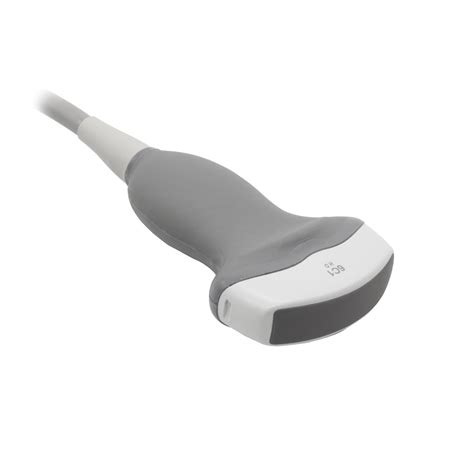

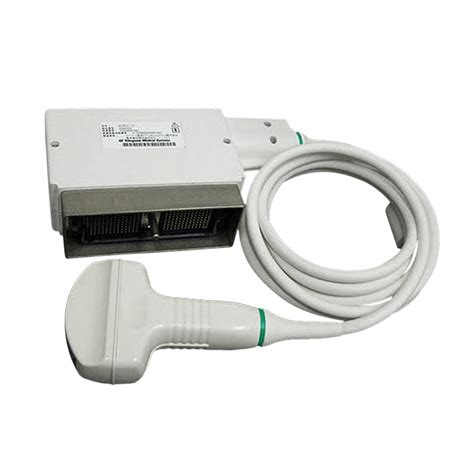

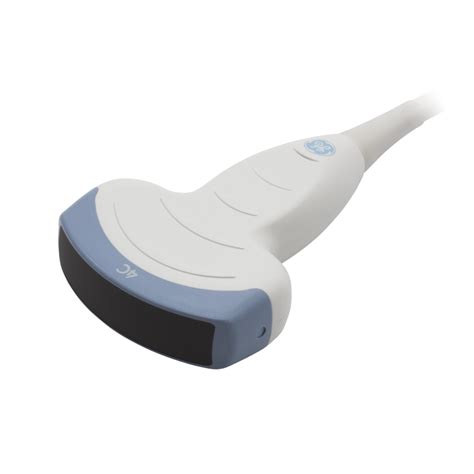

• Curvilinear (Convex) Probes: Designed for deeper imaging, such as abdominal or OB/GYN exams. They provide a wide field of view at the cost of lower resolution at greater depths.
• Phased Array Probes: Compact and ideal for cardiac imaging. Their small footprint allows for "between-the-ribs" access, and they are capable of high-speed beam steering.

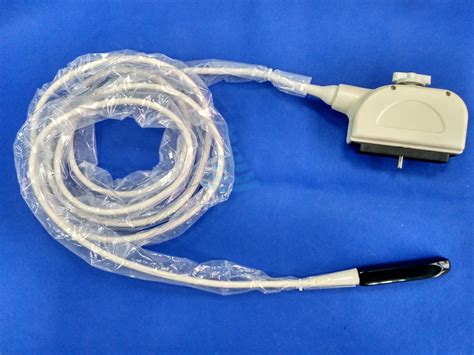

• Endocavity Probes: Specialized probes designed for internal imaging, such as transvaginal or transrectal examinations, offering high-frequency detail for close-range analysis.

⚠️ Note: Always ensure the probe frequency matches the depth of the anatomical structure you intend to scan to avoid image artifacts or loss of detail.

Comparison Table of Common Probe Characteristics

Best Practices for Ultrasound Probe Maintenance

Because an ultrasound probe is a precision instrument, it is highly susceptible to damage. Proper care not only extends the lifespan of the equipment but also ensures patient safety by preventing cross-contamination. Investing time in routine maintenance will prevent costly repairs or replacements in the long run.

Here are several essential care practices to follow:

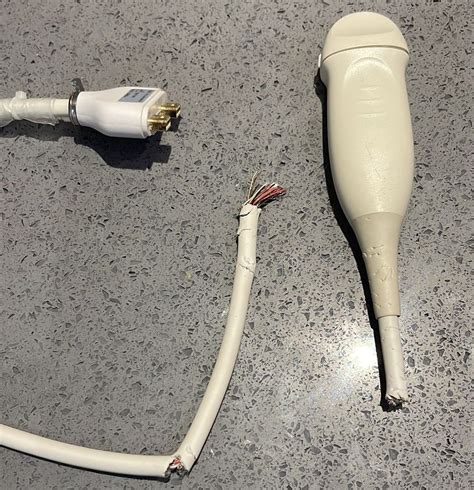

• Inspect the Lens and Cable: Before every use, visually check the acoustic lens for cuts, bubbles, or peeling. Examine the cable for any exposed wiring or kinks that could interfere with signal transmission.

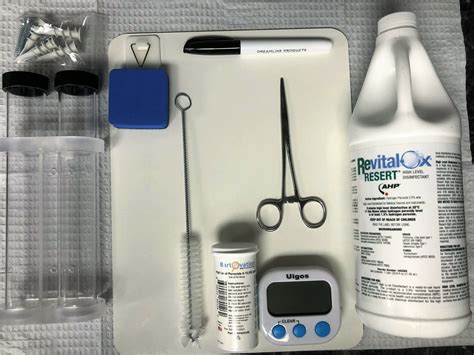

• Proper Cleaning and Disinfection: Always follow the manufacturer’s guidelines for cleaning. Use only approved disinfectants to avoid degrading the probe housing or damaging the lens.
• Storage: When not in use, secure the probe in its designated holder. Avoid leaving the cable trailing on the floor where it can be stepped on or rolled over by the machine’s wheels.
• Handle with Care: Never drop the transducer. Even a small impact can crack the internal piezoelectric crystals, leading to "dead elements" that appear as vertical black lines on your ultrasound images.

💡 Note: Regular ultrasound maintenance checks should include an electrical leakage test to ensure the probe remains safe for patient contact.

Troubleshooting Common Probe Issues

When you notice a drop in image quality, the ultrasound probe is often the first point of concern. Common symptoms include static noise, missing scan lines, or an intermittent image. If you encounter a vertical black line across your image, this is a classic indicator of a failed piezoelectric element. While some minor software artifacts can be adjusted, a damaged crystal usually requires professional repair services.

Always verify that the issue is not related to the connector pins on the probe's plug. Occasionally, debris or a bent pin in the connector can mimic hardware failure. Ensure the connection to the machine is clean, dry, and securely fastened before concluding that the probe itself is defective. If issues persist, document the error codes and contact a certified service technician to avoid permanent damage.

The longevity and performance of your diagnostic equipment rely heavily on how you treat the ultrasound probe. By understanding the specific needs of your chosen transducers and strictly adhering to cleaning and storage protocols, you can maximize your clinical efficiency and diagnostic accuracy. Whether you are performing routine check-ups or complex cardiac evaluations, maintaining high standards for your probe equipment is the hallmark of a professional medical facility. Keeping these devices in optimal condition ensures that your team can provide the highest level of care to every patient, day in and day out.
