Understanding molecular geometry is a fundamental pillar of chemistry, and one of the most classic examples used in classrooms is the Trichloromethane Lewis Structure. Commonly known as chloroform, trichloromethane (CHCl₃) is a versatile solvent and an essential chemical building block. To visualize how this molecule functions and interacts, we must first learn how to map its electron configuration. By understanding how atoms share electrons to achieve stability, students and professionals alike can better predict the chemical reactivity and physical properties of this substance.
Understanding the Basics of Trichloromethane (CHCl₃)
Before diving into the drawing process, it is essential to identify the atoms involved. Trichloromethane consists of one carbon atom, one hydrogen atom, and three chlorine atoms. Carbon is a Group 14 element with four valence electrons, hydrogen is in Group 1 and provides one electron, and chlorine is a Group 17 halogen with seven valence electrons.
To determine the Trichloromethane Lewis Structure, we must calculate the total number of valence electrons available in the molecule:
- Carbon: 1 atom × 4 valence electrons = 4
- Hydrogen: 1 atom × 1 valence electron = 1
- Chlorine: 3 atoms × 7 valence electrons = 21
- Total Valence Electrons = 26
Step-by-Step Guide to Drawing the Lewis Structure
Constructing the Lewis structure requires a systematic approach to ensure that the octet rule is satisfied for all atoms involved, except for hydrogen, which is stable with two electrons.
- Determine the Central Atom: Carbon is the least electronegative atom (excluding hydrogen, which cannot be a central atom because it only forms one bond). Place carbon in the center.
- Arrange the Outer Atoms: Surround the central carbon atom with the three chlorine atoms and the single hydrogen atom.
- Draw Single Bonds: Create a single bond between the central carbon and each of the four surrounding atoms. Each bond represents two shared electrons (4 bonds × 2 = 8 electrons used).
- Distribute Remaining Electrons: Subtract the electrons used for bonding from the total (26 - 8 = 18 electrons remaining). Place these remaining electrons as lone pairs on the surrounding atoms (chlorines) to satisfy their octets.
💡 Note: Remember that hydrogen is an exception to the octet rule; it is perfectly stable with the two electrons it shares in the single bond with carbon, so it does not require any lone pairs.
Properties of the Trichloromethane Molecular Geometry

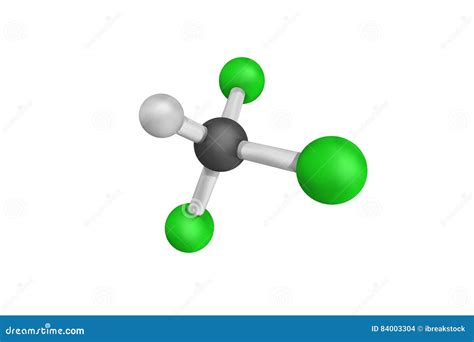

Once you have mapped the Trichloromethane Lewis Structure, you can deduce the molecular shape. Because the carbon atom is bonded to four distinct atoms with no lone pairs remaining on the central atom, the molecule adopts a tetrahedral geometry. In this arrangement, the bond angles are approximately 109.5 degrees, which minimizes the repulsion between the bonding electron pairs.
| Property | Value/Description |
|---|---|
| Chemical Formula | CHCl₃ |
| Total Valence Electrons | 26 |
| Molecular Geometry | Tetrahedral |
| Hybridization | sp³ |
| Polarity | Polar |
Why Polarity Matters in CHCl₃
The polarity of trichloromethane is a direct result of its molecular structure. While the individual C-H and C-Cl bonds have different electronegativities, the lack of symmetry due to the presence of one hydrogen atom instead of a fourth chlorine atom creates a net dipole moment. This makes the molecule polar, affecting how it interacts with other substances in a laboratory setting.
💡 Note: Always double-check your total valence electron count before finalizing your drawing; a missing electron or an extra pair will lead to an incorrect representation of the formal charges.
Practical Applications and Implications
Learning how to draw the Trichloromethane Lewis Structure is more than just an academic exercise. Because trichloromethane acts as a polar solvent, its ability to dissolve other organic compounds is defined by its molecular geometry and electron distribution. Chemists use this understanding to predict how chloroform will behave in various reaction environments, particularly in organic synthesis where the stability of intermediates is crucial.
Furthermore, because the chlorine atoms are more electronegative than carbon, the electron density is pulled away from the carbon atom, rendering it slightly electrophilic. This is a key detail that can be inferred immediately from a correctly drawn Lewis structure, helping students grasp why certain chemical reactions occur at specific sites within the molecule.
Final Observations on Molecular Modeling
Mastering the representation of covalent bonds through Lewis dot diagrams provides the foundation for advanced chemical studies. By following the steps outlined, you can confidently determine the structure of CHCl₃ and apply similar logic to more complex organic molecules. The process of calculating valence electrons, arranging the atoms based on electronegativity, and applying the octet rule ensures that your model is chemically accurate. As you progress in your study of chemistry, remember that these diagrams are the starting point for understanding three-dimensional geometry, hybridization, and, ultimately, the chemical reactivity that dictates how substances interact with the world around us. Through rigorous practice with molecules like trichloromethane, you develop the analytical skills necessary to navigate the complexities of molecular architecture with precision and clarity.
