Trench Shoring

Construction projects often involve digging deep into the earth, whether for utility installation, foundation work, or infrastructure repair. Among the most critical safety measures in any excavation site is trench shoring. Without proper protective systems, the risk of a trench collapse—often occurring in seconds—is astronomically high, posing a lethal threat to workers on the ground. Implementing robust shoring methods is not merely a suggestion; it is a regulatory requirement and a fundamental component of site management that ensures structural integrity and human life protection.

Table of Contents

Understanding Trench Shoring and Its Necessity

At its core, trench shoring refers to the installation of support systems designed to prevent soil movement and trench wall collapse. When an excavation extends beyond five feet in depth, the probability of a cave-in increases significantly, especially in unstable soil conditions. Soil is heavy, unpredictable, and can shift due to vibrations from heavy machinery, nearby traffic, or changing weather conditions like heavy rain.

The primary goal of shoring is to provide a mechanical counter-pressure against the trench walls. By stabilizing the earth, contractors create a safe “working envelope” where employees can complete their tasks without the constant fear of being buried. Effective systems account for the soil classification, the depth of the cut, and the proximity of surrounding structures.

Key Techniques in Trench Protection

There is no “one-size-fits-all” approach to shoring. Choosing the right method depends on specific site conditions. Professionals generally categorize these methods into three primary approaches:

Hydraulic Shoring: This is perhaps the most common method. It utilizes pre-manufactured aluminum or steel hydraulic cylinders. These are pumped into place to provide active pressure against the trench walls, making them quick to install and remove.
Pneumatic Shoring: Similar to hydraulic systems, these use air pressure to maintain the struts. They are often favored in specific industrial environments where hydraulic fluids might be a contamination risk.
Timber Shoring: Though older, timber shoring is still used in specific, low-budget, or tight-space scenarios. It requires skilled carpentry and precise installation to be effective, as it acts as a passive support system.

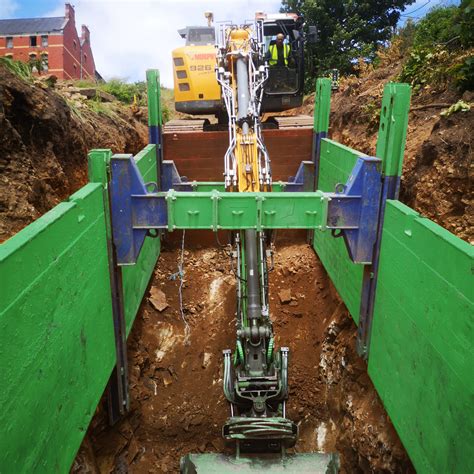

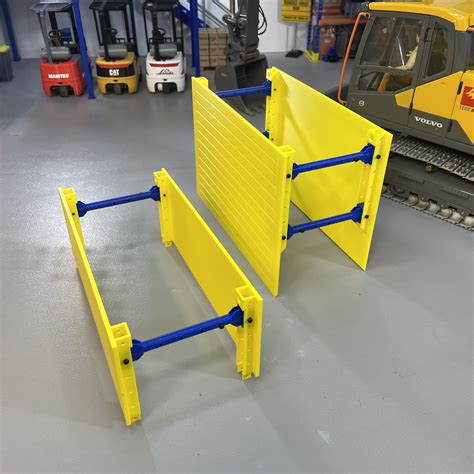

Trench Boxes (Shielding): While technically a form of shielding rather than shoring (because they protect the worker but do not prevent the soil from moving), trench boxes are essential when working in large, open excavations.

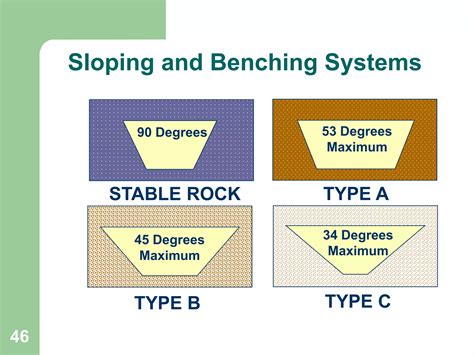

⚠️ Note: Always conduct a thorough soil analysis before selecting your shoring equipment. OSHA classifies soil into Type A, Type B, and Type C, each requiring different safety standards and support pressures.

Comparative Overview of Shoring Methods

Method	Primary Benefit	Best Used In
Hydraulic	Fast installation/removal	Utility repair, medium-depth trenches
Trench Boxes	High protection against collapses	Open-cut excavations, large pipelines
Timber	Customizable for irregular shapes	Complex or narrow site constraints
Sheet Piling	Provides structural water seal	Deep excavations near water tables

Essential Steps for Safe Trenching Operations

Executing a safe excavation process requires more than just buying the right hardware. It requires a systematic approach to site safety. Follow these critical steps to ensure compliance and worker safety:

Also read: Stanford University Gpa Requirements

Site Assessment: Before breaking ground, consult utility maps and perform a geotechnical evaluation of the soil stability.
Competent Person Designation: Every site must have a “competent person” on-site who has the authority to stop work if conditions become unsafe.
Equipment Inspection: Check all hydraulic struts and shoring panels for signs of corrosion, cracks, or mechanical failure before lowering them into the trench.
Controlled Installation: Install the shoring system from the top down and remove it in the reverse order. Never allow a worker to enter a trench until the shoring or shielding is securely in place.
Means of Egress: Ensure that ladders, ramps, or stairways are located within 25 feet of all workers in trenches deeper than four feet.

💡 Note: Remember that vibrations from nearby equipment can degrade soil stability significantly. Always maintain a safe distance between heavy machinery and the edge of the trench.

The Impact of Soil Classification

Understanding soil physics is the backbone of successful trench shoring. Clay-like soils (Type A) are more cohesive and stable, whereas granular soils like sand (Type C) are highly prone to sliding and require heavy-duty, full-contact shoring systems. Failing to account for these differences often leads to improper equipment selection. If you treat a sand-based trench like clay, the shoring may fail to distribute weight correctly, leading to localized collapses that could compromise the entire project.

Common Mistakes to Avoid

Even with advanced equipment, accidents happen due to human error. Avoid these common pitfalls:

Also read: Capiq

Improper Backfilling: Leaving voids between the shoring and the trench wall reduces the effectiveness of the support.
Over-Reliance on Shielding: Do not use a trench box as a substitute for shoring in unstable soil where movement must be restricted to prevent surface subsidence.
Ignoring Weather: Heavy rainfall can turn stable soil into mud, drastically changing the load profile on your shoring system. Always re-inspect after a storm.
Ignoring Surcharge Loads: Storing heavy materials or parking equipment too close to the edge of the trench creates “surcharge loads” that can collapse the walls from above.

Ultimately, the success of any excavation project is measured by the safety of the workforce. Investing in proper trench shoring systems is an investment in human life and project continuity. By adhering to rigorous safety standards, conducting regular equipment inspections, and respecting the unpredictable nature of soil, construction teams can mitigate risks effectively. It is vital to remember that the cost of high-quality shoring equipment is negligible when compared to the human and financial cost of a cave-in. By maintaining a culture of safety, utilizing the right methods for specific soil types, and ensuring that every worker is trained on emergency procedures, you create an environment where productivity thrives without compromising security. Consistent vigilance and professional standards will continue to be the most important tools on any construction site.
