The throttle position sensor (TPS) is a vital component of your vehicle's engine management system. It acts as a bridge between your foot and the engine, translating the physical pressure you apply to the gas pedal into electronic signals that tell the Engine Control Unit (ECU) how much air should be entering the engine. When this sensor begins to fail, the entire driving experience can become erratic, leading to sluggish acceleration, poor fuel economy, or even a vehicle that refuses to idle properly. Understanding the nuances of Throttle Position Sensor Replacement is essential for any DIY enthusiast looking to save money on expensive shop labor costs while keeping their vehicle in top operating condition.
Symptoms of a Failing Throttle Position Sensor
Before diving into the Throttle Position Sensor Replacement process, it is important to verify that the sensor is indeed the culprit. A faulty TPS usually triggers the "Check Engine" light, but there are several physical behaviors you might notice while driving. These symptoms often stem from the ECU receiving incorrect voltage data, which confuses the engine's fuel-air mixture calculations.
- Hesitation during acceleration: You press the pedal, but the engine experiences a momentary "dead spot" before reacting.
- Rough Idling: The engine struggles to maintain a consistent RPM while the vehicle is stopped.
- Stalling: The engine may cut out entirely, especially when coming to a stop or switching gears.
- Poor Fuel Economy: Because the ECU cannot accurately measure throttle input, it may inject too much fuel, wasting gas.
- Surging: The car might unexpectedly speed up or lurch forward without further input from the driver.
Tools and Preparation
Performing a Throttle Position Sensor Replacement is generally a straightforward task, but having the right tools is paramount to ensure you don't damage the delicate plastic connectors or the throttle body itself. Before you start, ensure the vehicle is parked on a flat surface and the engine is completely cool to avoid accidental burns.
Gather the following equipment:
- A set of socket wrenches or screwdrivers (depending on your car model).
- A digital multimeter for testing voltage.
- A replacement TPS unit (ensure it is OEM-compatible for your specific engine code).
- Safety goggles and work gloves.
- Electronic contact cleaner to clean the wiring harness plug.
⚠️ Note: Always disconnect the negative terminal of your vehicle's battery before starting the installation to prevent accidental electrical shorts or triggering additional error codes.
Step-by-Step Replacement Guide
Once you have gathered your tools and confirmed your replacement part, follow these steps to execute the Throttle Position Sensor Replacement safely and efficiently.

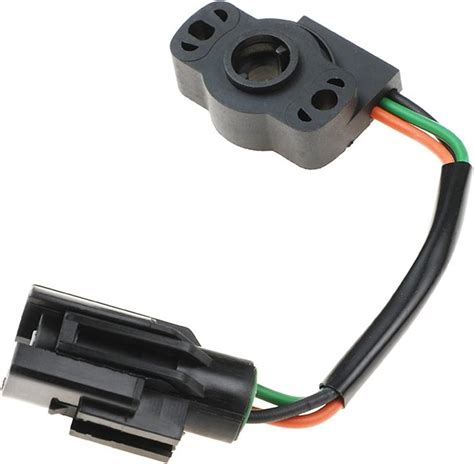

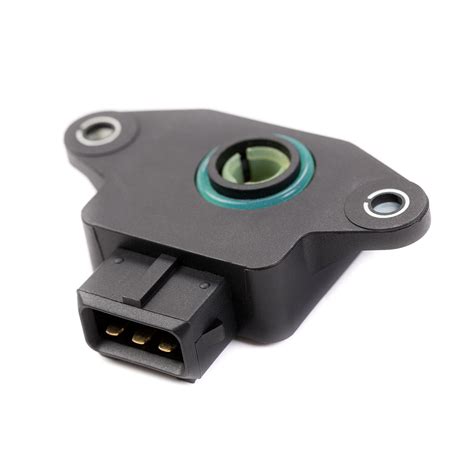

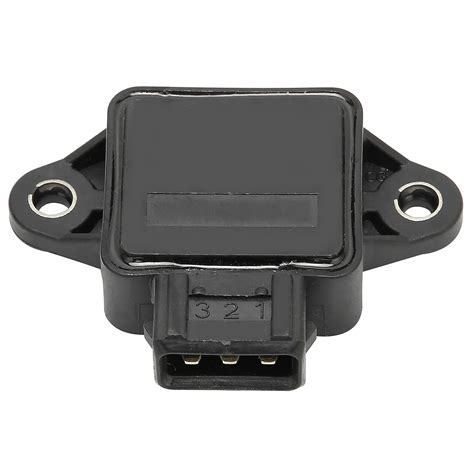

- Locate the TPS: Open the hood and look for the throttle body, which is usually attached to the air intake hose near the engine block. The TPS is typically a small black plastic component mounted on the side of the throttle body shaft.
- Remove the Wiring Harness: Carefully depress the plastic release tab on the electrical connector and pull it away from the sensor. Be gentle, as these plastic clips become brittle over time due to engine heat.
- Unscrew the Sensor: Use your screwdriver or socket wrench to remove the mounting screws. Keep these in a safe place, as you may need them for the new sensor if they are not included.
- Remove the Old Unit: Gently pull the sensor away from the throttle body. Note the orientation of the internal lever or spring to ensure the new one seats properly.
- Install the New Sensor: Slide the new sensor into place, ensuring the internal drive tang matches the orientation of the throttle shaft. Secure it with the mounting screws, but do not overtighten, as the plastic housing can crack easily.
- Reconnect and Test: Plug the wiring harness back in. Reconnect the battery and turn the ignition to the "ON" position (without starting the engine).
Comparison of TPS Issues
| Symptom | Likely Cause | Resolution |
|---|---|---|
| Intermittent Hesitation | Worn internal contact points | Throttle Position Sensor Replacement |
| Check Engine Light Only | Loose wiring or corrosion | Clean connectors with contact cleaner |
| Engine Won't Start | Complete sensor failure | Replace TPS and reset ECU |
💡 Note: In many modern vehicles, the ECU will require a "relearn" procedure after a new sensor is installed. This often involves leaving the ignition in the "ON" position for 30 seconds without touching the pedal, then turning it off.
Final Considerations
Once the Throttle Position Sensor Replacement is complete, taking your vehicle for a short test drive is the best way to verify the fix. Pay close attention to how the car reacts to light, medium, and heavy pedal pressure. If the hesitation has vanished and the engine idles smoothly, you have successfully performed the repair. If the Check Engine light remains illuminated, you may need to clear the diagnostic codes using an OBD-II scanner. If the problem persists, ensure the sensor was calibrated according to your vehicle’s service manual, as some units require precise voltage adjustment during installation to communicate correctly with the onboard computer. By following these steps, you maintain the responsiveness and efficiency of your vehicle while gaining a deeper understanding of how your car’s engine management system communicates with your inputs.
