In the vast landscape of fluid dynamics, few inventions capture the imagination quite like the Tesla Valve. Invented by the legendary polymath Nikola Tesla in 1916, this remarkable piece of engineering serves as a "valvular conduit." Unlike traditional mechanical valves that rely on moving parts like flaps, ball bearings, or diaphragms, the Tesla Valve functions entirely through its internal geometry. By forcing fluid through a series of branching channels, it creates a system where flow is easy in one direction but encounters immense resistance when forced backward. This elegant solution to flow control remains a subject of intense study, bridging the gap between historical curiosity and modern industrial innovation.
Understanding the Physics Behind the Tesla Valve

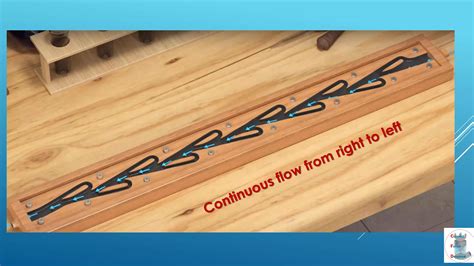

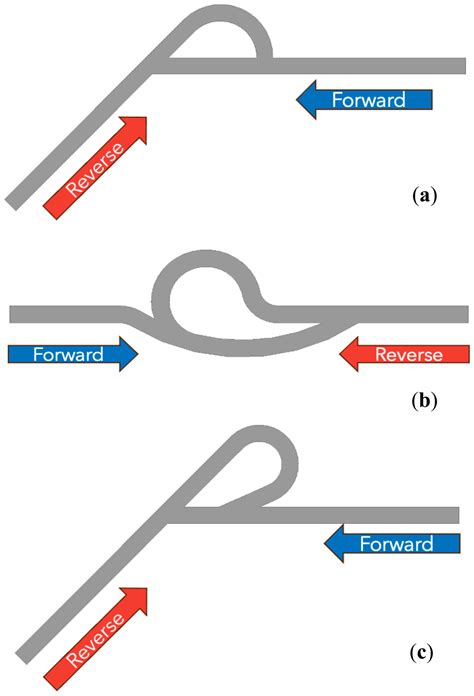

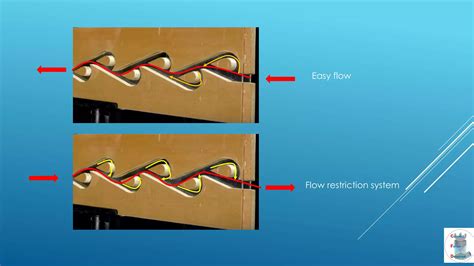

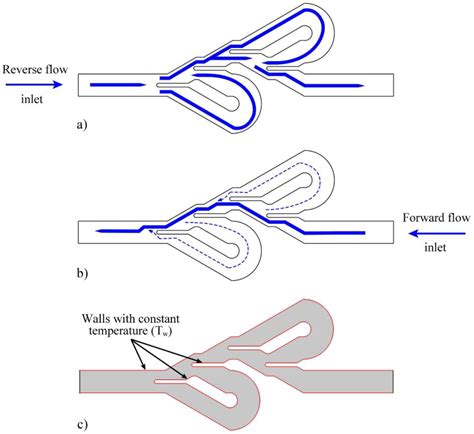

The core principle behind the Tesla Valve is the redirection of kinetic energy. When fluid enters the "easy" direction, the geometry of the channels allows it to flow relatively smoothly, with minimal turbulence. However, when the fluid attempts to flow in the reverse direction, it encounters a complex internal structure designed to induce turbulence and create destructive interference.

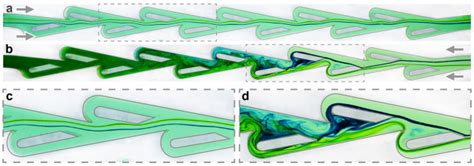

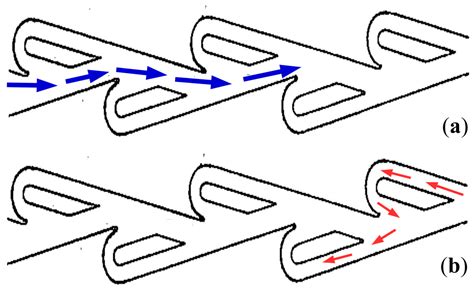

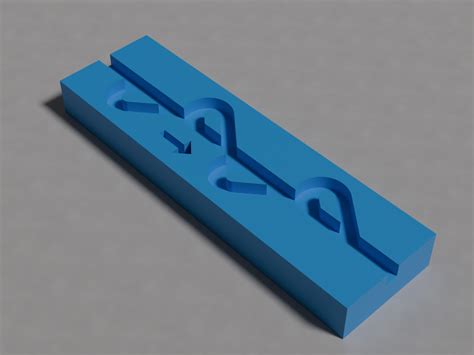

The design consists of a sequence of loops, often called "stages," that are positioned at specific angles. When fluid moves backward through these stages, the internal walls force the flow to split, collide with itself, and spiral into vortices. These vortices act as a self-induced pressure barrier, effectively choking the flow. Key characteristics of this phenomenon include:
- No moving parts: This eliminates wear and tear, making the valve virtually maintenance-free over long periods.
- Directional Diode: It acts as a fluidic diode, allowing forward flow while significantly hindering reverse flow.
- Geometry-dependent resistance: The efficiency of the valve depends entirely on the precise shaping of the internal "teardrop" or "loop" channels.
The Mechanics of Fluidic Rectification
To truly grasp how the Tesla Valve operates, one must look at how it manages pressure drops. In a standard pipe, friction is the primary cause of pressure loss. In a Tesla Valve, the design specifically exploits fluid inertia. When the fluid flows in the high-resistance direction, the branching channels cause the stream to divide and rejoin, which causes the fluid to slam into itself. This process consumes energy, converting the forward momentum of the fluid into turbulent heat rather than forward progress.
The following table illustrates the comparison between traditional valves and the static geometry of a Tesla-designed conduit:
| Feature | Traditional Mechanical Valve | Tesla Valve |
|---|---|---|
| Moving Parts | Yes (Subject to wear) | None (Static) |
| Maintenance | Regular lubrication/repair | Virtually none |
| Flow Restriction | Variable | Fixed by geometry |
| Reliability | Dependent on mechanical integrity | High (Cannot jam) |
⚠️ Note: While the Tesla Valve is highly efficient in terms of longevity, it is rarely a total "seal." It is designed to create a significant pressure differential rather than a vacuum-tight shutoff.
Modern Applications and Innovations

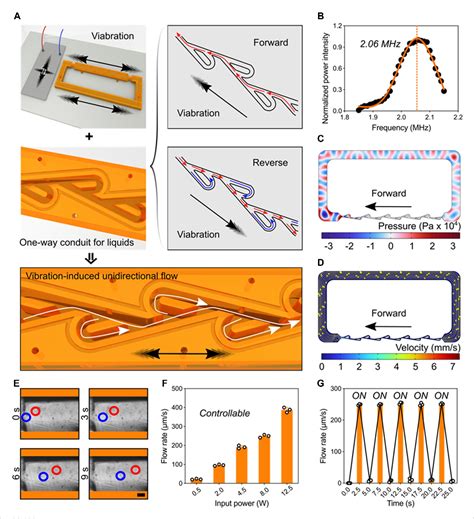

Although it was patented over a century ago, the Tesla Valve has found a second life in modern microfluidics. As engineers strive to create smaller, more robust systems for medical devices and cooling technology, the lack of moving parts becomes a massive advantage. Microscale systems often struggle with mechanical valves that are prone to jamming or breaking. By etching Tesla-inspired geometries onto silicon or polymer chips, researchers can control the flow of fluids in laboratory-on-a-chip diagnostic tools with high precision.
Beyond the laboratory, the design has been explored for:
- Cooling Systems: Using pulsating flows to dissipate heat more efficiently in high-performance electronics.
- Fuel Injection: Managing fuel pressure in internal combustion engines without the lag associated with mechanical springs.
- Acoustic Damping: Using the flow-blocking properties to reduce noise generated by gas or liquid turbulence in industrial pipes.
Designing and Scaling the Geometry

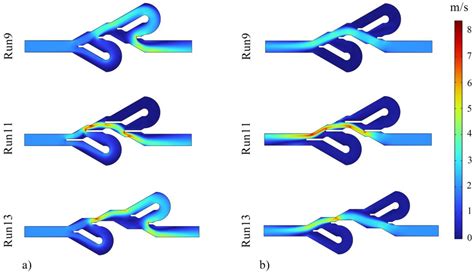

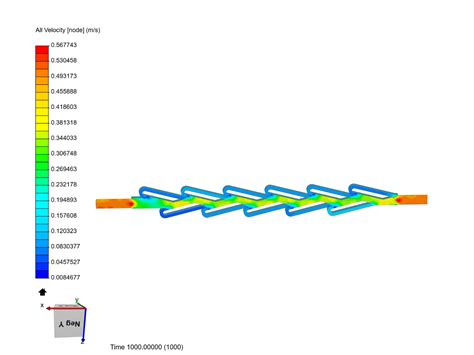

When experimenting with the Tesla Valve, the scale of the device dictates the performance. At a macro scale, the valve is effective for low-viscosity fluids like air or water. However, as the fluid becomes more viscous, the boundary layer effects inside the channels change significantly. Engineers must use computational fluid dynamics (CFD) software to simulate the flow paths before manufacturing the final component.
If you are looking to integrate such a design into a prototype, keep these factors in mind:
- Channel Width: The width must be consistent with the desired flow rate to avoid unnecessary pressure drop in the "forward" direction.
- Stage Count: Increasing the number of stages increases the "diode effect," meaning the flow becomes more restricted in the reverse direction, but the forward resistance increases as well.
- Material Roughness: In micro-scale applications, the surface finish of the internal channels can affect turbulence significantly.
💡 Note: Always simulate your design in a laminar or turbulent flow environment depending on your fluid's Reynolds number to ensure optimal performance.
The enduring legacy of the Tesla Valve serves as a reminder that the most sophisticated solutions to engineering problems are often those that rely on the inherent laws of physics rather than the addition of complex, failure-prone parts. By utilizing the way fluid interacts with itself within a precisely defined space, Nikola Tesla bypassed the limitations of traditional mechanics. Whether it is used in the cooling of advanced aerospace systems or in the delicate channels of a medical diagnostic device, the valve continues to prove that smart, passive design is often superior to mechanical complexity. As our manufacturing capabilities continue to improve through 3D printing and precision micro-machining, we are likely to see this century-old concept integrated into even more groundbreaking technologies, reinforcing the notion that great ideas are truly timeless in their ability to solve modern problems.
