The transition toward renewable energy sources is fundamentally reshaping how electrical grids operate on a global scale. As we integrate more wind and solar power, which rely heavily on inverter-based resources (IBRs), the traditional dynamics of the grid are evolving. At the heart of this stability lies the Synchronous Generation System Strength, a critical metric that determines how well a power system can maintain voltage stability and recover from disturbances. Without adequate system strength, modern grids risk increased instability, protection failures, and potential cascading outages, making it a cornerstone for engineers and grid operators alike.
Defining System Strength and Its Role

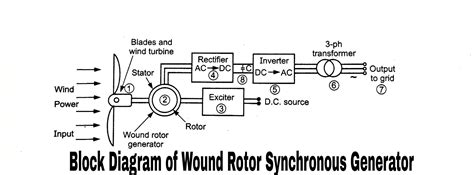

System strength is essentially a measure of the ability of the electrical network to maintain its voltage waveform following a contingency, such as a short circuit or a sudden change in power injection. It is physically represented by the Short Circuit Level (SCL) or the Short Circuit Ratio (SCR) at a specific connection point. In a system dominated by traditional synchronous generators—like those found in coal, gas, or hydro plants—the physical inertia and electromagnetic coupling provide a robust "cushion" against fluctuations. However, as these plants are retired or displaced by inverter-based resources, the effective Synchronous Generation System Strength decreases, leading to a "weaker" grid that is more sensitive to voltage swings.
The importance of maintaining this strength cannot be overstated. When a grid is weak, the following issues frequently emerge:
- Voltage Instability: Inverters may struggle to synchronize with the grid frequency, leading to potential loss of phase lock.
- Protection System Malfunction: Lower fault currents can make it difficult for relays to accurately detect and clear faults.
- Harmonic Resonance: Weak systems are more susceptible to high-frequency oscillations that can damage sensitive grid infrastructure.
- Reduced Ride-Through Capability: IBRs may trip prematurely during transient voltage dips, further destabilizing the network.
Measuring Strength in Modern Power Grids
Engineers typically utilize the Short Circuit Ratio (SCR) to quantify grid strength at a point of interconnection. The SCR is calculated by dividing the short-circuit capacity of the grid at that location by the rated power output of the connected plant. A high SCR indicates a "strong" grid, while a low SCR suggests a "weak" grid requiring additional mitigation strategies. As the Synchronous Generation System Strength diminishes, operators must look for ways to augment the grid's inherent physical characteristics.
| SCR Level | System Status | Grid Behavior |
|---|---|---|
| SCR > 3.0 | Strong Grid | Highly stable, standard inverter control suffices. |
| 2.0 < SCR < 3.0 | Weak Grid | Requires advanced control tuning and monitoring. |
| SCR < 2.0 | Very Weak Grid | Critical need for synchronous condensers or grid-forming inverters. |
⚠️ Note: These thresholds serve as general industry benchmarks; local grid codes may define specific limits based on regional network topology and generation mix.
Mitigation Strategies for Weak Systems
When the Synchronous Generation System Strength falls below acceptable thresholds, utility companies must implement technical solutions to bolster grid resilience. The objective is to inject reactive power or provide inertial response to simulate the presence of a traditional power plant. Several proven methods are currently deployed across the industry:
- Synchronous Condensers: These are rotating electrical machines that provide short-circuit current, inertia, and dynamic reactive power support without generating active power.
- Grid-Forming Inverters (GFM): Unlike traditional grid-following inverters, GFM technology can act as a voltage source, actively helping to stabilize the grid frequency and voltage rather than just following existing signals.
- Static Var Compensators (SVCs) and STATCOMs: While they do not provide physical inertia, they are highly effective at rapid voltage regulation.
- Advanced Control Tuning: Adjusting the control loops of inverter-based resources to be less sensitive to the electrical environment of the interconnection point.
The Future of Grid Architecture
As we continue to decarbonize the energy sector, the conversation surrounding Synchronous Generation System Strength is evolving from a secondary engineering concern to a primary grid planning mandate. Future power systems will likely rely on a hybrid model where grid-forming technologies and strategic placement of synchronous assets work in tandem. This ensures that even as the total number of physical turbines decreases, the electrical stability of the system remains high. By proactively addressing these strength requirements during the project development stage, stakeholders can avoid the costly retrofits that often plague weak-grid connection points.
Technological advancement is not just about adding more clean energy; it is about ensuring that this energy can be integrated safely and reliably. Operators are now implementing "system strength impact assessments" as part of the standard grid connection process. This shift ensures that every new project contributes to—or at least does not degrade—the collective strength of the power network. Through the intelligent application of control technology and the strategic integration of power electronics, the industry is successfully navigating the transition to a sustainable, stable, and modernized power grid.
The ongoing evolution of the electrical network proves that achieving a decarbonized energy future is perfectly compatible with high-level operational security. By focusing on Synchronous Generation System Strength, planners and engineers can effectively bridge the gap between traditional synchronous generation and the inverter-dominated landscape of tomorrow. This balance is critical to ensuring that power remains reliable, consistent, and resilient against the challenges of a dynamic energy environment. Through continued innovation, rigorous planning, and the deployment of advanced grid-forming solutions, the path forward remains clear for a robust energy transition.
