The stick welder, technically known as Shielded Metal Arc Welding (SMAW), remains one of the most versatile and reliable tools in the metalworking industry. Whether you are a hobbyist working on a classic car restoration project or a professional contractor building structural frameworks, understanding the fundamentals of this process is essential. Unlike MIG or TIG welding, which require gas cylinders and complex setups, a stick welder utilizes a simple, flux-coated electrode to create a strong, durable bond between metals. Because of its simplicity and ability to operate effectively in outdoor conditions, it is often the preferred choice for repairs in windy environments where shielding gas would otherwise be blown away.
Why Choose a Stick Welder for Your Projects?
One of the primary reasons many fabricators invest in a stick welder is its remarkable flexibility. You are not limited to working in a clean, indoor shop environment. Because the flux on the electrode generates its own shielding gas as it melts, the weld pool remains protected from atmospheric contamination even when you are working on a windy job site. Furthermore, the equipment is generally more affordable and easier to transport than most other welding machines.
Consider the following advantages of using this welding method:
- Versatility: It works on a wide variety of metals, including stainless steel, cast iron, and carbon steel.
- Portability: Modern inverter-based models are lightweight and compact, making them perfect for field work.
- Cost-Effective: You do not need expensive gas regulators, hoses, or tanks.
- Thickness Compatibility: It is exceptionally effective for joining thicker materials that require deep penetration.
Understanding the Core Components

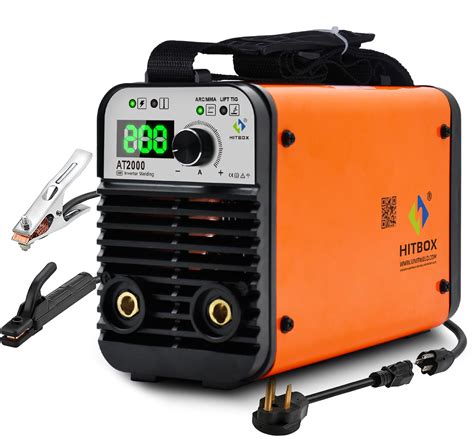

To master the stick welder, you must understand the equipment involved. The system is relatively straightforward, consisting of a power source, an electrode holder (stinger), and a ground clamp. When the electrode makes contact with the base metal, it completes an electrical circuit, creating an arc that produces enough heat to melt both the electrode core and the workpiece.
| Component | Function |
|---|---|
| Power Source | Provides the necessary current (AC or DC) to maintain the arc. |
| Electrode Holder | Holds the welding rod securely and transfers electrical current. |
| Ground Clamp | Completes the circuit by connecting the workpiece to the machine. |
| Welding Rod | Acts as both the filler metal and the source of shielding. |
Step-by-Step Guide to Your First Weld
Getting started with your stick welder requires patience and a focus on technique. The most critical aspect of stick welding is maintaining the correct arc length and travel speed. If you move too quickly, the weld will be thin; if you move too slowly, you risk burning through your material.
- Safety First: Always wear a welding helmet with the correct shade, fire-resistant gloves, and a leather apron.
- Prepare the Surface: Clean your metal using a wire brush or grinder to remove rust, paint, or mill scale.
- Set the Amperage: Consult the electrode manufacturer's specifications based on the rod diameter and material thickness.
- Strike the Arc: Perform a "scratch" motion similar to lighting a match to start the arc.
- Maintain the Angle: Keep your electrode at a 15- to 30-degree angle in the direction of your travel.
- Clean the Slag: Once the weld cools, use a chipping hammer and wire brush to remove the brittle layer of slag.
⚠️ Note: Always ensure your workspace is well-ventilated, as the flux-coated electrodes produce fumes that should not be inhaled directly during the welding process.
Choosing the Right Electrodes
The type of rod you select is vital for the success of your project. Most common rods are designated by an “E” followed by four digits. The first two digits indicate the tensile strength, while the last two signify the position and type of coating. For beginners, the E6013 is often recommended because it offers an easy, smooth arc, while E7018 is the gold standard for structural projects requiring high-strength, low-hydrogen welds.
Maintenance and Longevity
To ensure your stick welder lasts for years, keep the internal components free from dust and metal filings. If you use a fan-cooled unit, use compressed air to blow out any debris that may have collected inside the casing. Additionally, always check your cables for signs of fraying or exposed copper, as damaged leads can lead to poor arc stability and potential safety hazards. Properly coiling your leads after each use will prevent kinks and extend the lifespan of your machine.
Final Thoughts on Mastering the Technique
Improving your proficiency with a stick welder is a journey that rewards consistency and practice. While it can be challenging to manage the arc and slag at first, the strength and integrity of the welds produced are unmatched in many repair scenarios. Focus on keeping a steady hand, watching your puddle carefully, and choosing the right rod for the job. With time, you will find that stick welding becomes an intuitive process, allowing you to tackle almost any fabrication task with confidence and precision. By adhering to proper safety protocols and maintaining your equipment, your welder will serve as a reliable partner in all your future metalworking endeavors.
