Removing spot welds is a foundational skill for anyone involved in automotive restoration, collision repair, or metal fabrication. When you are dealing with thin-gauge sheet metal, the goal is to separate panels without damaging the underlying structure or blowing holes through the base metal. This is where a high-quality spot weld drill bit becomes your most valuable asset. Unlike a standard twist drill, which is designed to penetrate deeply, these specialized cutters are engineered with a flat or slightly concave tip that shears through the weld nugget with surgical precision, leaving the surrounding metal intact.
Understanding the Mechanics of a Spot Weld Drill Bit

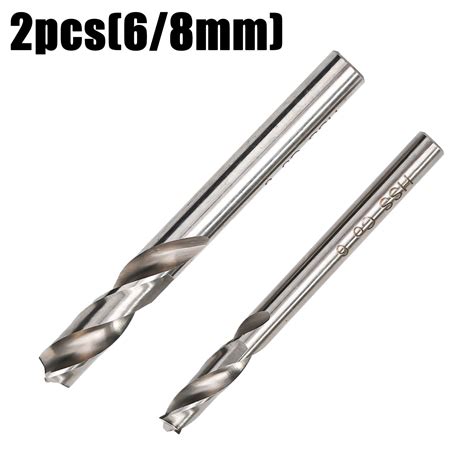

A spot weld drill bit functions differently than conventional drill bits. Standard bits feature a pointed tip meant to "bite" into the material and clear chips as they go deep. In contrast, spot weld cutters are designed to remove only the top layer of metal—the flange that has been welded to the support structure. By cutting a ring around the weld nugget, you can lift the top panel away cleanly. These bits are typically made from Cobalt or Carbide, materials chosen for their extreme heat resistance and ability to hold an edge while cutting through hard, tempered spot-weld points.
Most professionals opt for specialized bits because they offer:
- Reduced heat buildup: Less friction means less risk of warping thin sheet metal.

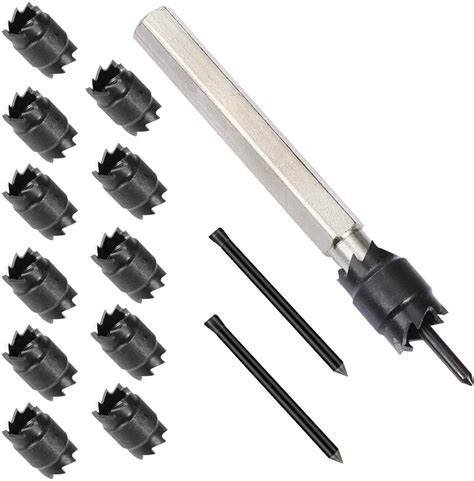

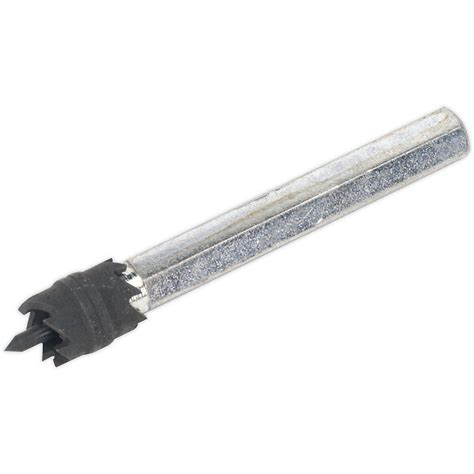

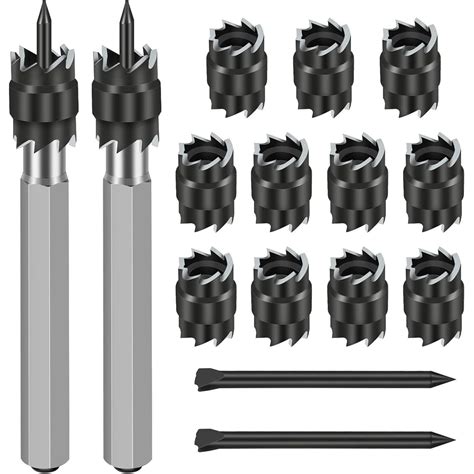

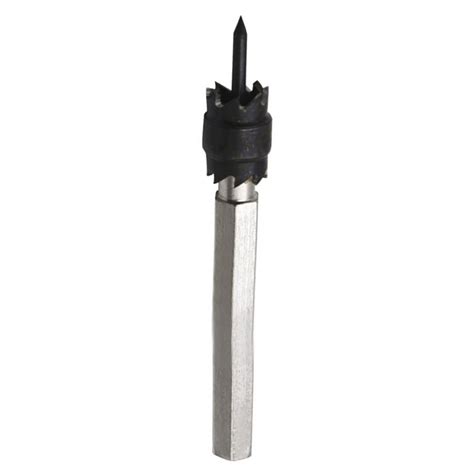

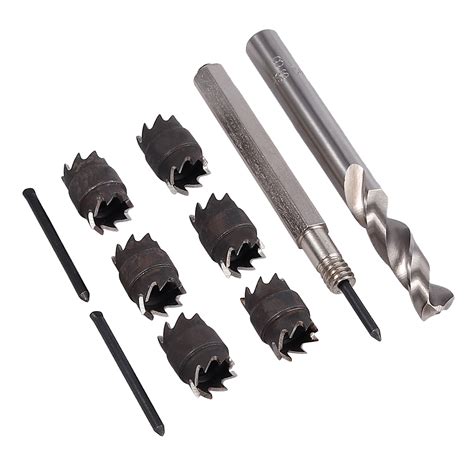

- Precision cutting: A centering pin often keeps the bit from "walking" across the surface.
- Longevity: Cobalt steel maintains its hardness even when subjected to the high temperatures found in high-speed welding point removal.
Types of Materials and Bit Selection
When selecting the right tool for the job, you must consider the material you are working on. Modern vehicles frequently utilize Advanced High-Strength Steel (AHSS) and Boron steel, which are incredibly tough and can destroy a standard high-speed steel bit in seconds. Below is a breakdown of common materials and the recommended drill bit types for each:
| Material Type | Recommended Bit Material | Durability Level |
|---|---|---|

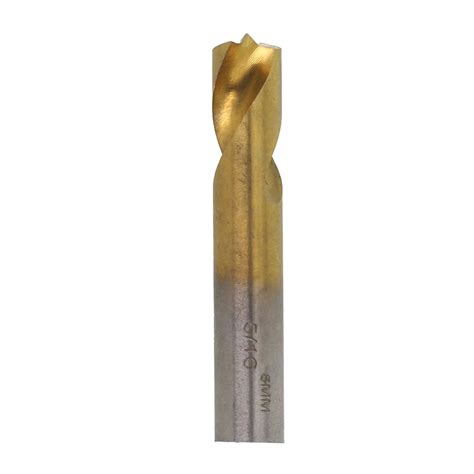

| Mild Steel | High-Speed Steel (HSS) | Moderate |

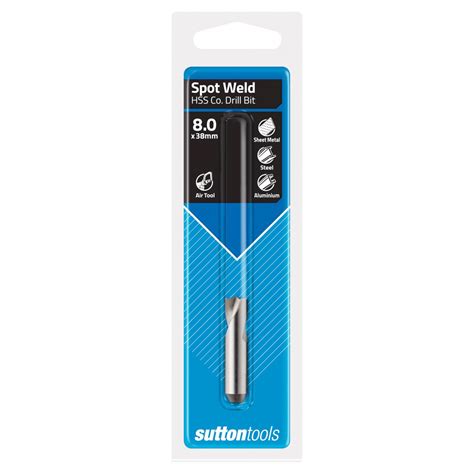

| Stainless Steel | Cobalt (M35 or M42) | High |

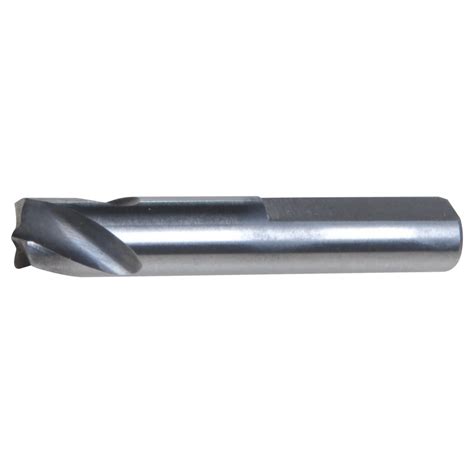

| Boron / High-Strength Steel | Solid Carbide | Very High |
⚠️ Note: Always use a cutting lubricant or cooling oil when drilling through hardened steel to significantly extend the life of your bit and prevent work hardening of the metal surface.
Step-by-Step Guide to Clean Weld Removal
Using a spot weld drill bit effectively requires more finesse than raw power. To get the best results, follow this systematic approach:
- Locate the weld: Sand or wire-wheel the area until the dimple of the spot weld is clearly visible. If the weld is hard to see, use a center punch to create a small pilot mark in the dead center of the weld.
- Set your speed: Do not run your drill at maximum RPM. These bits work best at a slow, steady speed—usually between 300 and 600 RPM. High speeds generate excessive heat that will dull the bit instantly.
- Apply consistent pressure: Let the bit do the work. Press firmly enough to maintain contact, but do not force it. If you have a depth-stop attachment on your tool, adjust it to ensure you only cut through the thickness of the top sheet.
- Check your progress: Periodically stop to clear metal shavings and verify that you haven't penetrated the bottom layer of steel.
Once you see a thin ring formed around the spot weld, you have successfully detached the layers. Use a small pry bar or a flat-head screwdriver to gently nudge the panels apart. If they remain stuck, check to see if the weld nugget is still slightly attached at the base and deepen the cut by a hair.
Common Mistakes to Avoid
Even with the right spot weld drill bit, mistakes are common for those new to the process. The most frequent error is "walking," where the bit skips across the surface of the metal, causing unsightly scratches and potential damage to the surrounding panel. This is often caused by not using a center punch or trying to start the drill at too high an angle. Ensure the drill is perfectly perpendicular to the metal surface before engaging the trigger.
Another issue is "burning" the bit. This happens when the RPM is too high, causing the metal to harden (work hardening) from heat. Once a metal surface becomes work-hardened, it becomes significantly harder than the drill bit itself, making it almost impossible to penetrate. If you find the bit isn't cutting, stop immediately, let the area cool down, and check the sharpness of your cutter.
💡 Note: Investing in a dedicated spot-weld drilling tool or a pneumatic drill with a specialized low-speed, high-torque setting will yield much more professional results than using a standard cordless hand drill.
Maintenance and Care for Your Tools
A spot weld drill bit is an investment in your workshop's efficiency. To ensure they last, always store them in a protective case. Never drop them on a concrete floor, as carbide tips are brittle and can chip upon impact. Furthermore, keep your bits clean; debris and old oil can accumulate, causing the bit to slip or bind. If you find the cutting edges are becoming dull, it is often more cost-effective to replace the bit rather than attempting to sharpen it, as the geometry of a spot weld cutter is highly specific and difficult to replicate by hand.
Achieving a clean separation of panels is a vital step in maintaining the integrity of a vehicle’s frame during a repair. By using the correct spot weld drill bit, controlling your drill speed, and properly managing heat, you can ensure that your repair work is as strong and seamless as the original factory assembly. Choosing the appropriate material for your bit—whether Cobalt for general repairs or Carbide for high-strength vehicle components—will save you time, frustration, and money in the long run. Master these techniques, and you will find that even the most difficult panel replacements become a manageable part of your project, allowing you to focus on the craftsmanship that truly makes a restoration or repair stand out.
