If you have ever popped the hood of your vehicle to perform a routine tune-up, only to find oil pooling around your spark plugs, you have likely encountered a failing Spark Plug Tube Seal. While often overlooked by casual drivers, these small rubber components play a critical role in maintaining engine performance and longevity. When these seals harden, crack, or shrink due to intense engine heat and chemical degradation, they lose their ability to keep oil out of the ignition system. Understanding how these seals function and how to identify their failure can save you from costly engine damage and performance issues down the road.
What is a Spark Plug Tube Seal?

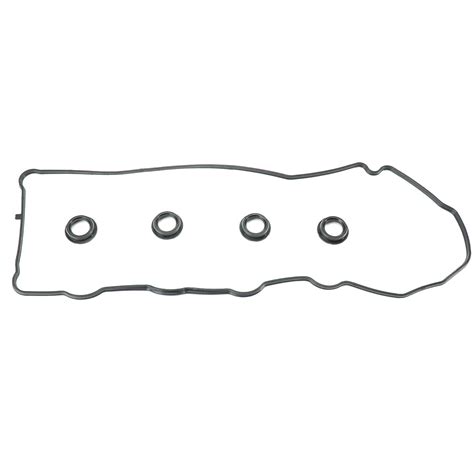

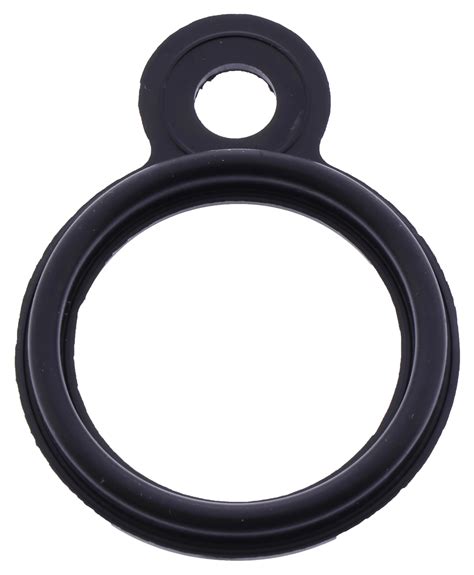

The Spark Plug Tube Seal is a small but vital gasket, typically found on vehicles equipped with overhead camshafts where the spark plugs are recessed deep into the cylinder head. Because the spark plugs sit in “tubes” that pass through the valve cover and internal oil galleries, there must be a pressurized, leak-proof barrier to separate the oily engine environment from the electrical ignition components.

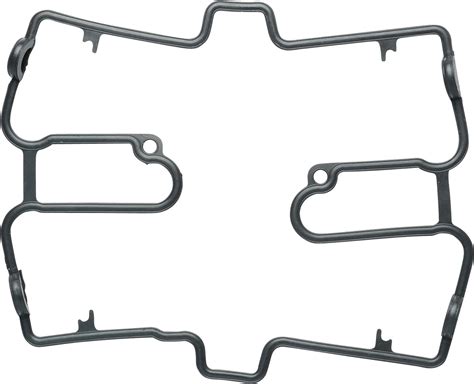

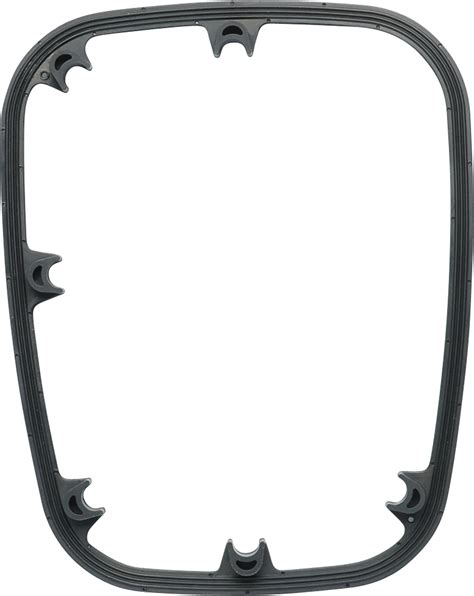

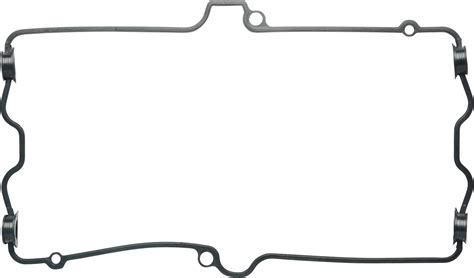

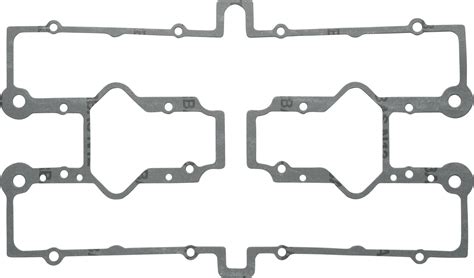

These seals are usually made of high-quality rubber or silicone designed to withstand the extreme temperatures of a combustion engine. When you replace your valve cover gasket, it is standard practice to replace these tube seals as well, as they often become brittle at the same rate as the main gasket.
Symptoms of a Failing Seal
Identifying a failing Spark Plug Tube Seal early can prevent severe misfires and catalytic converter failure. Since oil is conductive and destructive to rubber ignition components, it is essential to watch for the following signs:
- Engine Misfires: As oil floods the spark plug well, it can cause the spark to “short out” to the side of the cylinder head instead of jumping the gap, leading to rough idling or stuttering during acceleration.
- Burning Oil Smell: If oil leaks past the seals and onto hot engine surfaces, you might detect a sharp, acrid burning smell while driving.
- Visible Oil on Spark Plugs: During a routine inspection, if you remove the ignition coils or wires and find the ends covered in oil, the seals have officially failed.
- Reduced Fuel Efficiency: Because misfiring forces the engine computer to adjust fuel-air mixtures, a faulty seal can inadvertently lead to poor gas mileage.
Comparative Analysis: Seal Materials and Durability
When selecting replacement parts, the material quality of your Spark Plug Tube Seal matters significantly. Lower-quality rubber may fail within a few thousand miles, while premium materials offer longevity.
| Material Type | Heat Resistance | Longevity | Best For |
|---|---|---|---|
| Standard Nitrile | Moderate | Short-term | Budget repairs |
| Viton (Fluoroelastomer) | High | Long-term | Performance/High-heat engines |
| Silicone | Very High | Variable | Specific racing applications |
Step-by-Step Replacement Guide
Replacing a Spark Plug Tube Seal is generally a manageable task for the DIY mechanic, though it does require precision. Follow these general steps:
- Preparation: Ensure the engine is cool. Disconnect the negative battery terminal and remove any plastic engine covers.
- Access: Remove the ignition coils or spark plug wires. Label them so they return to their original order.

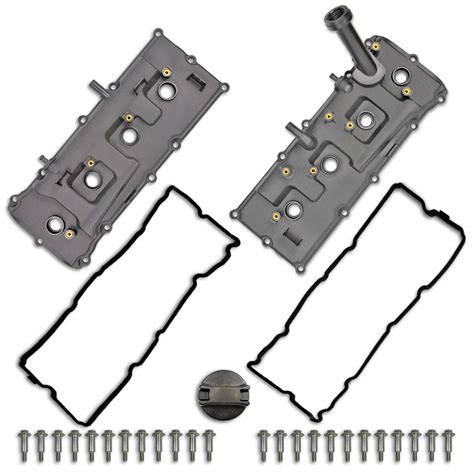

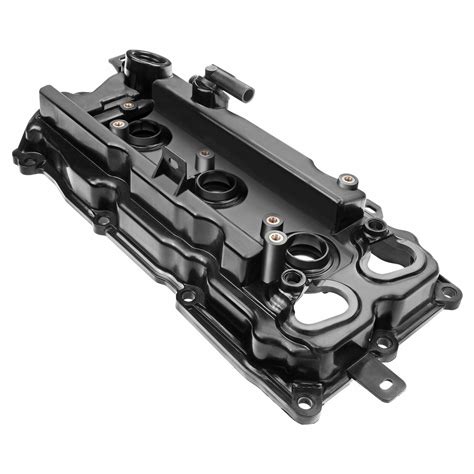

- Valve Cover Removal: Carefully unscrew the valve cover bolts. Lift the cover away, being mindful of the old gasket.
- Extract Old Seals: Use a flat-head screwdriver or a seal puller to remove the old Spark Plug Tube Seal from the underside of the valve cover.
- Install New Seals: Clean the groove thoroughly. Lightly lubricate the new seal with clean engine oil and press it into place. Ensure it is seated perfectly flush to avoid future leaks.
- Reassembly: Clean the cylinder head mating surface, apply a small dab of RTV silicone sealant at the timing cover corners if required by your manual, and reinstall the valve cover.
💡 Note: Always consult your vehicle's specific service manual before starting, as some modern engines require specialized tools to extract the seals without scratching the valve cover surface.
Best Practices for Maintenance
To maximize the lifespan of your Spark Plug Tube Seal, focus on consistent preventative maintenance. Keeping your engine oil clean prevents the buildup of sludge that can degrade rubber components prematurely. Furthermore, avoid overtightening valve cover bolts, as this can pinch and distort the seals, causing them to leak even when they are brand new.
If you notice oil in the spark plug wells, do not ignore it. While it may seem like a minor nuisance, oil can quickly degrade the rubber boots on your ignition coils, turning a simple 20 seal replacement into a 200 ignition system repair. Staying proactive ensures your engine remains efficient and reliable for the long haul.
In summary, the health of your engine relies on the integrity of many small parts, including the often-forgotten spark plug tube seal. By recognizing the early signs of wear—such as engine misfires or visible oil—you can address the problem before it compromises other ignition components. Choosing high-quality materials and ensuring proper installation during your valve cover service will provide peace of mind and keep your vehicle running smoothly. Maintaining these seals is a straightforward way to protect your engine’s performance and avoid more complex and expensive repairs in the future.
