In the construction industry, ensuring structural integrity begins long before the first wall is framed or the roof is shingled. It starts with the foundation—literally—and the quality of the concrete used to build it. Among the various methods of quality control, the Slump Test remains one of the most widely used and essential procedures for determining the consistency and workability of fresh concrete. By measuring how much a conical sample of concrete settles under its own weight, engineers can verify if a batch is suitable for its intended application before it is poured into place.
Understanding the Importance of Concrete Workability
Workability is a critical property that describes how easily freshly mixed concrete can be mixed, placed, consolidated, and finished without losing its homogeneity. If concrete is too stiff, it becomes difficult to pour and leaves voids or honeycomb structures within the reinforcement. Conversely, if it is too wet or fluid, it risks segregation, where the heavier aggregates settle to the bottom, leading to a weak and porous final structure.
The Slump Test serves as a reliable field indicator of these characteristics. While it does not measure the final strength or durability of the concrete directly, it acts as a primary gatekeeper. If the slump result falls outside the specified range, it suggests that the water-cement ratio or the aggregate grading may be off, prompting immediate adjustments at the batch plant or on the job site.

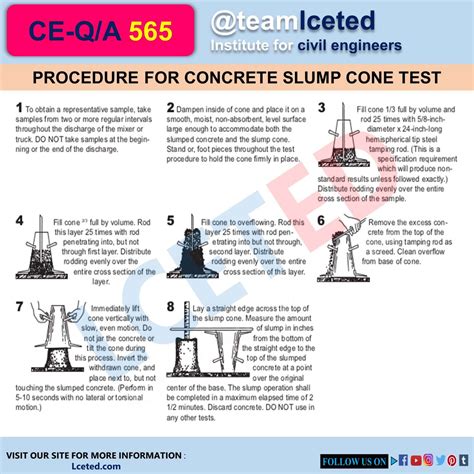

The Standard Procedure: Step-by-Step

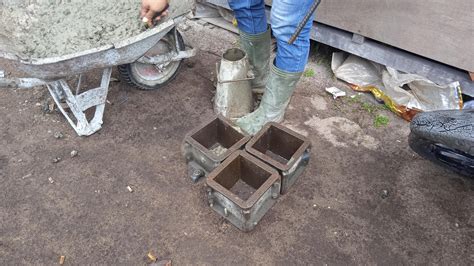

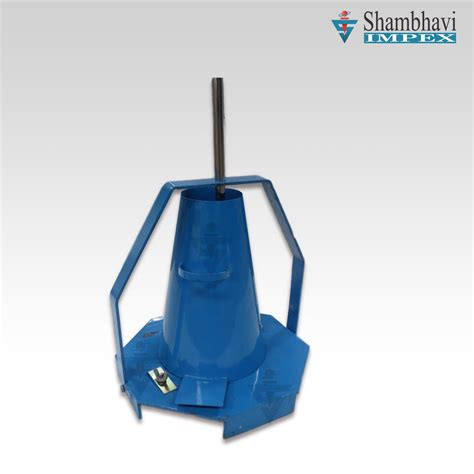

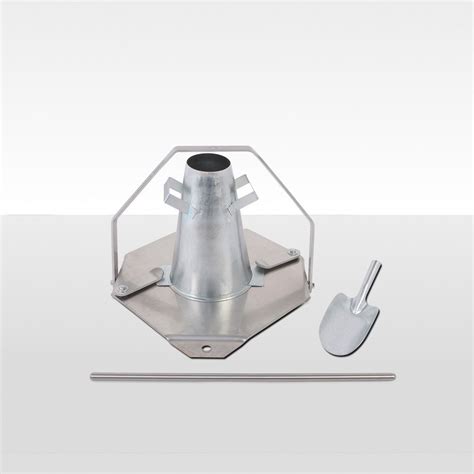

Performing an accurate test requires standard equipment, primarily a slump cone (an inverted frustum), a tamping rod, a measuring tape, and a non-absorbent base plate. Precision is key to ensuring that the results are repeatable and representative of the entire load.
- Preparation: Dampen the inner surface of the cone and ensure it is placed on a flat, level, and rigid base plate.
- Filling: Fill the cone in three distinct layers of approximately equal volume (usually one-third of the height).
- Compaction: Rod each layer 25 times uniformly over the cross-section with the tamping rod to ensure proper distribution.
- Striking Off: Level the top of the concrete surface with a straight-edged tool, ensuring the cone is filled flush.

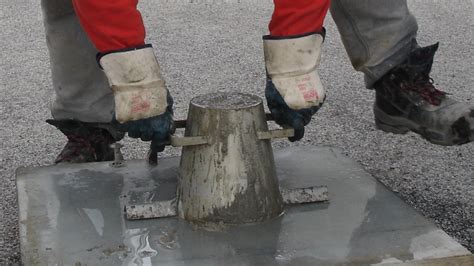

- Removal: Carefully lift the cone vertically in a slow, steady motion, taking about 5 to 10 seconds to avoid disturbing the concrete.

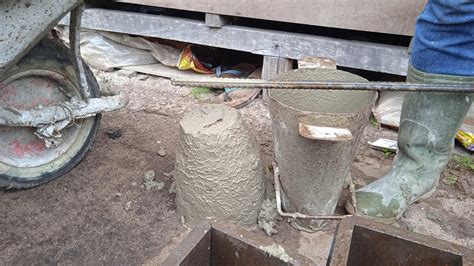

- Measurement: Place the cone next to the slumped concrete and measure the distance from the top of the cone to the center of the top surface of the specimen.
⚠️ Note: If the concrete shears or collapses completely after the cone is removed, the test should be discarded, and a new sample should be taken to ensure accuracy.
Analyzing Slump Results
The results provided by the Slump Test provide immediate feedback. A "true slump" indicates that the concrete settled evenly, which is the desired outcome. However, different projects require different degrees of workability. A high-slump concrete might be perfect for heavily reinforced, thin-walled structures, while a low-slump mix is often required for road paving or dam construction where heavy machinery is used to compact the material.
| Application | Recommended Slump (mm) |
|---|---|
| Mass Concrete / Pavement | 25 – 50 mm |
| Normal Reinforced Sections | 50 – 100 mm |
| Heavily Reinforced Sections | 100 – 150 mm |
| Tremie Concrete (Underwater) | 150 – 200 mm |
Factors Affecting Test Accuracy
Several environmental and material factors can influence the outcome of the test. Being aware of these variables is essential for any site engineer or quality control professional.
- Moisture Content: Changes in the moisture levels of the aggregates, particularly sand, can drastically alter the water-cement ratio.
- Ambient Temperature: Hot weather causes concrete to set faster, which can reduce the slump even if the mix design is correct.
- Chemical Admixtures: The use of plasticizers or water-reducing agents can significantly increase the slump without the need for additional water, which is a common practice to enhance workability.
- Operator Skill: Inconsistent rodding or lifting the cone too quickly can result in misleading data, highlighting the need for proper training.
💡 Note: Always ensure that the tamping rod is clean and free of debris, as dried concrete remnants from previous tests can affect the compaction of the current sample.
Limitations and Modern Alternatives
While the Slump Test is universally recognized, it is important to acknowledge its limitations. It is strictly a measure of consistency, not of absolute quality. For instance, two different concrete mixes could show the same slump but have vastly different water-cement ratios or strength characteristics. Furthermore, the test is not suitable for extremely dry, zero-slump concrete, where other methods like the Compacting Factor Test or the Vebe Consistometer test would be more appropriate.
In high-tech construction, such as self-compacting concrete (SCC), the traditional cone test is insufficient. For these materials, the "Slump Flow" test is used, which measures the horizontal spread of the concrete rather than its vertical drop. This demonstrates that while the standard test remains a cornerstone of basic site management, modern engineering often requires more advanced metrics to characterize the complex rheology of modern concrete mixtures.
Maintaining Quality Standards
Consistency is the hallmark of a successful construction project. Implementing a rigorous testing program ensures that every truckload of concrete arriving at the site meets the specifications defined by the structural engineer. By utilizing the Slump Test as a routine quality assurance measure, contractors can avoid the massive costs associated with structural failure, remediation, or the removal of improperly cured concrete. It is a simple, cost-effective, and highly efficient way to manage risk on the construction site.
Ultimately, the role of this testing procedure is to provide a standardized language between the site team and the batching plant. When both parties speak the language of “slump,” they can communicate effectively about how to adjust the mix—whether by adding a plasticizer or tweaking the aggregate proportions—to ensure that the final pour is strong, durable, and perfectly placed. By mastering this fundamental skill, construction professionals take a proactive step in maintaining the safety and longevity of the built environment, ensuring that the structures they create stand the test of time and the forces of nature.
