The vast depths of our oceans, lakes, and rivers have long held secrets hidden beneath the murky surface. For centuries, explorers were limited to what they could see from the deck of a ship or via cumbersome diving equipment. However, the advent of modern hydrographic technology has revolutionized our ability to map and understand the underwater landscape. Central to this technological evolution is Side Scan Sonar, an acoustic imaging system that has become an indispensable tool for marine surveyors, archaeologists, law enforcement, and researchers alike. By sending sound pulses laterally through the water column, this technology paints a detailed "acoustic picture" of the seafloor, turning what was once a dark abyss into a high-resolution map of terrain, shipwrecks, and hidden infrastructure.
Understanding the Mechanics of Side Scan Sonar

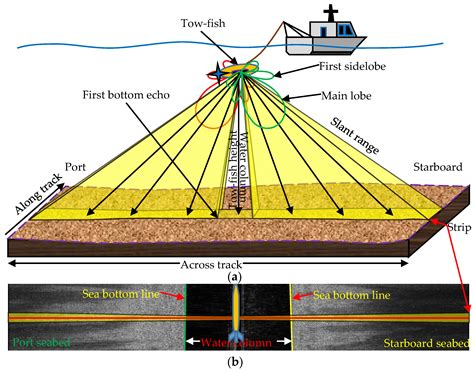

At its core, Side Scan Sonar operates on the principle of acoustic backscatter. Unlike traditional single-beam echo sounders that only measure depth directly beneath a vessel, a side-scan system uses a specialized transducer, often housed in a device called a "towfish" or mounted directly to the hull of a boat. This transducer emits fan-shaped pulses of sound out to both the port and starboard sides of the path of travel.
As these sound waves travel through the water column, they strike the seafloor and any objects resting upon it. The intensity of the returning echo, or backscatter, depends on the angle at which the sound hits the object and the composition of the material. Harder materials, such as rock or metal, return strong, bright signals, while softer materials like mud or silt absorb more sound, resulting in darker areas on the generated image. By processing these returns, the system creates a photo-like representation of the bottom, complete with shadows that help observers interpret the height and shape of the objects detected.
Key Components and System Variations
The effectiveness of a Side Scan Sonar survey depends heavily on the equipment configuration. Most professional-grade systems consist of a transducer array, a processing unit, and a display interface. There are several ways these units can be deployed:
- Towfish Systems: These are towed behind a vessel at a controlled depth. They are often preferred for deep-water surveys as they can be brought closer to the seafloor, significantly improving resolution.
- Hull-Mounted Systems: Integrated directly into the vessel, these are highly convenient for shallow-water mapping and general survey work but are limited by the vessel’s movement and surface water conditions.
- Autonomous Underwater Vehicles (AUVs): High-end setups where the sonar is integrated into a drone-like vehicle, allowing for precise, pre-programmed survey patterns without the need for a tethered towfish.
To differentiate between the capabilities of different sonar setups, one must consider frequency. The relationship between frequency and resolution is a fundamental trade-off in hydrographic acoustics.
| Frequency Range | Primary Use Case | Pros/Cons |
|---|---|---|
| Low Frequency (100–300 kHz) | Wide-area search | Covers large distance; lower resolution. |
| High Frequency (600–900 kHz) | Target identification | High detail; limited range. |
| Ultra-High (1.2 MHz+) | Archaeological inspection | Extreme detail; very short range. |
💡 Note: Higher frequency settings provide excellent resolution for identifying small objects, but they suffer from higher attenuation, meaning the sound waves cannot travel as far through the water.
The Versatility of Applications
The utility of Side Scan Sonar extends far beyond simple seafloor mapping. Its ability to create high-definition imagery has made it a primary tool in several specialized fields:
- Marine Archaeology: It is the gold standard for locating historic shipwrecks, where the "shadow" cast by the sonar allows researchers to visualize the structure even if the wreck is partially buried.
- Search and Recovery (SAR): Law enforcement and rescue teams utilize these systems to locate submerged vehicles, missing persons, or evidence that has been discarded in water.
- Pipeline and Cable Surveys: Energy and telecommunications companies use Side Scan Sonar to monitor the integrity of undersea infrastructure, ensuring that cables have not been exposed or damaged by shifting sands.
- Environmental Monitoring: Biologists use the technology to map habitats, such as oyster beds or coral reefs, allowing for longitudinal studies on ecosystem health.
Best Practices for Effective Data Acquisition
Achieving clear, interpretable results requires more than just turning on the equipment. Data quality is highly dependent on how the survey is conducted. Experienced operators focus on maintaining a constant vessel speed, as erratic speed changes can distort the image and make the seafloor features appear stretched or compressed. Furthermore, keeping the transducer at a stable depth is critical.

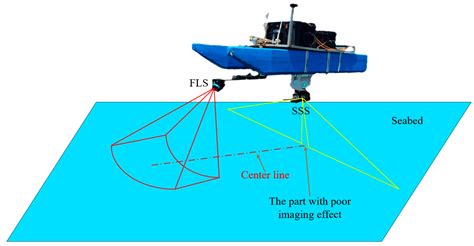

When planning a mission, it is essential to account for "nadir," which is the area directly beneath the sonar where the signal is often weak or distorted. Overlapping survey passes are often required to ensure that the nadir gap from one pass is covered by the high-quality outer data from an adjacent pass. By systematically "mowing the lawn" across the survey area, technicians ensure that no blind spots remain in their acoustic map.
💡 Note: Always ensure that your range settings are adjusted to the water depth; if the range is too wide in shallow water, you will experience excessive surface noise that hides important seafloor details.
Interpreting Acoustic Shadows
One of the most important skills in working with Side Scan Sonar is the ability to read acoustic shadows. Because the sound pulses are directed at an angle, any object rising above the seafloor will block the sound, creating a region of no signal behind it—the shadow. The length of this shadow is directly proportional to the height of the object. An experienced operator can look at a screen and accurately estimate the dimensions of an object by observing the length of its shadow, a technique that is vital for distinguishing between a harmless rock and a high-priority target like a shipwreck or a lost container.
Maintenance and Calibration for Longevity
Because these systems operate in harsh saltwater environments, regular maintenance is mandatory. Salt deposits and biofouling on the transducer face can degrade signal quality significantly. After every mission, transducers should be rinsed with fresh water and checked for physical damage or scratches. Periodic calibration, often performed against known targets or reference buoys, ensures that the distance measurements remain accurate, preventing "slant range" errors that could throw off location data during post-processing.
Modern advancements have moved toward integrating Side Scan Sonar with GPS and inertial navigation systems. This allows the sonar imagery to be "georeferenced," meaning each pixel in the image corresponds to a specific set of latitude and longitude coordinates. This capability transforms a simple acoustic video into a spatial database that can be integrated into Geographic Information Systems (GIS), providing a permanent, mappable record of the underwater environment that can be revisited years later to detect changes or erosion.
The integration of high-resolution acoustic imaging has fundamentally altered how we interact with and monitor the aquatic world. Through the use of varying frequency ranges and strategic survey planning, professionals are now able to generate detailed visual data in environments that were previously impossible to document. Whether the objective is to uncover historical artifacts, verify the integrity of critical subsea power grids, or conduct search operations in challenging conditions, the effectiveness of this technology is undeniable. As hardware becomes more compact and processing software more automated, we can expect the role of these acoustic tools to expand, providing even deeper insights into the complex and often mysterious topography that exists beneath the waves.
