Series And Parallel Springs

Understanding the mechanical behavior of elastic systems is fundamental to physics and engineering, particularly when dealing with Series And Parallel Springs. Whether you are designing a vehicle suspension, a sensitive measurement device, or even a simple mattress, the way you combine springs dictates the overall stiffness and energy storage capacity of the assembly. Springs are rarely used in isolation; instead, engineers arrange them in specific configurations to achieve a desired "spring constant" or equivalent stiffness. By mastering the mathematical relationships governing these configurations, you can predict how a system will react under load, ensuring both functionality and safety in mechanical design.

Table of Contents

The Physics of Hooke’s Law

Before diving into the combinations, it is essential to revisit Hooke’s Law. This law states that the force (F) needed to extend or compress a spring by some distance (x) scales linearly with respect to that distance. Mathematically, this is expressed as F = kx, where k represents the spring constant—a measure of the spring’s stiffness. When combining springs, the primary goal is usually to find the equivalent spring constant (k_eq), which allows us to treat multiple springs as a single, simplified component.

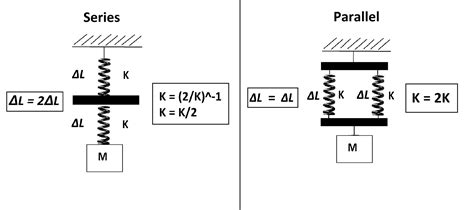

Springs in Series

When springs are connected in series, they are joined end-to-end. In this configuration, each spring in the chain experiences the same amount of force (the applied load), but the total displacement of the system is the sum of the individual displacements of each spring. Because the force is distributed across the entire chain, the system becomes less stiff than the individual components.

Springs in Parallel

In a parallel configuration, springs are connected side-by-side, attached to a common platform or bar. When a force is applied to this platform, each spring undergoes the exact same displacement. However, the total force is distributed among the individual springs based on their respective stiffnesses. Because each spring must be stretched or compressed by the same amount, the system resists movement more strongly, effectively acting as a single, much stiffer spring.

The equivalent spring constant for springs in parallel is calculated by simply adding the individual constants together:

k_eq = k₁ + k₂ + ... + k_n

Comparison Table

Feature	Series Configuration	Parallel Configuration
Equivalent Constant	1/k_eq = ∑(1/k_i)	k_eq = ∑k_i
Force	F_total = F₁ = F₂	F_total = F₁ + F₂
Displacement	x_total = x₁ + x₂	x_total = x₁ = x₂
Stiffness Impact	Decreases overall stiffness	Increases overall stiffness

Practical Engineering Considerations

Selecting the right arrangement of Series And Parallel Springs requires a careful balance between load requirements and space constraints. When building a mechanical system, consider the environment in which the springs will operate. Environmental factors such as extreme temperatures or corrosive atmospheres can affect the material properties of the springs, potentially altering their effective k-value over time. Furthermore, always account for the physical space available; parallel arrangements take up more width, while series arrangements extend the length of the assembly.

💡 Note: Always ensure that the springs selected for a parallel arrangement have compatible lengths; otherwise, the load may not be distributed evenly, potentially leading to premature mechanical failure or uneven wear.

Complex Combinations

Real-world engineering problems rarely involve purely series or purely parallel springs. More often, you will encounter mixed configurations. To solve these, break the system down into smaller, manageable subsystems. Identify segments that are strictly in series or parallel, solve for their equivalent constants, and then replace those segments with a single “virtual” spring. Repeat this process until you have simplified the entire system into a single value.

For example, if you have two springs in parallel, and that pair is in series with a third spring, calculate the parallel equivalent first (k₁ + k₂), and then use that result to calculate the series equivalent with the third spring (k₃). This iterative approach is the gold standard for analyzing complex mechanical networks in robotics and aerospace engineering.

Safety and Maintenance

Because spring assemblies store significant potential energy, safety is paramount. When inspecting or replacing springs in a system, ensure the load is fully relieved. A failure in one spring in a parallel set might result in an uneven distribution of force, putting excessive stress on the remaining components. Similarly, in a series set, the failure of one spring can cause a sudden and dramatic change in the height or equilibrium point of the entire assembly, which can be hazardous if the system is holding a significant weight.

In summary, the design and analysis of Series And Parallel Springs provide the backbone for controlling mechanical energy in modern machinery. By understanding that series connections reduce stiffness while parallel connections enhance it, engineers can precisely tune the behavior of suspension systems, vibration dampers, and structural components. Mastering the mathematical relationships—the reciprocal addition for series and direct summation for parallel—enables the creation of complex systems that are both efficient and reliable. By applying these fundamental principles, you can approach any mechanical challenge with confidence, ensuring that your final assembly operates within the desired parameters and maintains structural integrity throughout its operational lifespan.
