In the vast landscape of firearm engineering, few mechanisms have captivated enthusiasts and mechanical engineers quite like the Roller Delayed Blowback system. While many firearms rely on gas impingement or traditional direct blowback to function, this unique method offers a sophisticated alternative that balances reliability with manageable recoil. Originally popularized by the German engineering firm Heckler & Koch, this system has become synonymous with some of the most iconic submachine guns and rifles in modern history. Understanding how it operates requires a dive into the physics of pressure, friction, and mechanical geometry.
The Fundamental Physics of Roller Delayed Blowback
At its core, a Roller Delayed Blowback action is a clever adaptation of standard blowback operations. In a simple blowback system, the bolt is held in place solely by its own mass and the force of a recoil spring. When a round is fired, the pressure pushes the bolt back immediately. However, this becomes dangerous when dealing with high-pressure cartridges, as it would require an impossibly heavy bolt. This is where the roller delay enters the equation.
The system utilizes a two-part bolt carrier group consisting of the bolt head, rollers, a locking piece, and the bolt carrier. When the firearm is in battery, two rollers are pushed outward by the wedge-shaped locking piece into recesses in the barrel extension. As the cartridge fires, the initial rearward force must first force these rollers back into the bolt head against the resistance of the locking piece. This mechanical disadvantage creates a mathematical delay, allowing the pressure in the chamber to drop to safe levels before the bolt head is allowed to move rearward and cycle the action.
Advantages of the Roller Delayed System
The primary appeal of this system lies in its efficiency and durability. Because the rollers handle the initial resistance, the bolt carrier can be significantly lighter than in a simple blowback firearm. This leads to several distinct benefits for the end-user:
- Reduced Recoil Impulse: The delay mechanism smooths out the felt recoil, making the firearm easier to control during rapid fire.
- Reliability: By keeping the action closed until pressure drops, the system effectively manages high-pressure loads without requiring complex gas adjustment valves.
- Simplified Maintenance: Without the need for a gas tube or piston system, there is no carbon buildup in gas-operated components, making the internal assembly easier to clean.
- Accuracy Potential: The barrel is typically fixed rather than moving, which often contributes to better inherent accuracy compared to tilting-barrel designs.
⚠️ Note: While maintenance is simpler, it is critical to keep the roller recesses in the barrel extension clean. Excessive carbon or debris in these specific pockets can cause the rollers to stick, leading to failure-to-extract issues.
Comparative Analysis: Different Action Types
To better understand the niche this system occupies, it is helpful to see how it stacks up against other common operating methods in the firearms industry.
| System | Recoil Impulse | Complexity | Primary Use |
|---|---|---|---|
| Simple Blowback | High | Low | PCCs, .22LR Rifles |
| Roller Delayed | Low/Medium | Moderate | Service Rifles/SMGs |
| Direct Gas Impingement | Low | Low (Internal) | AR-15 Platform |
| Short-Stroke Piston | Medium | High | Modern Combat Rifles |
Evolution and Historical Impact

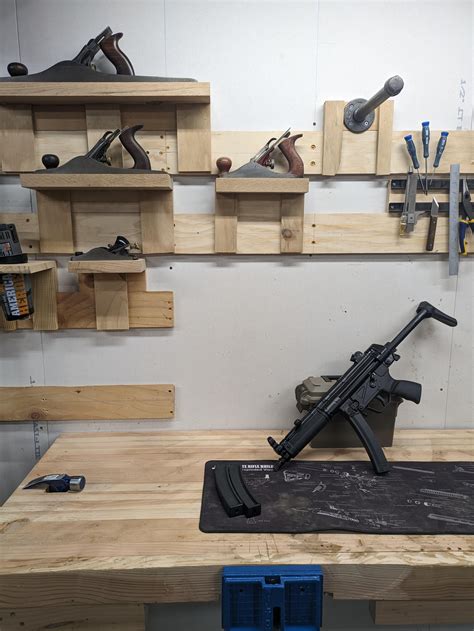

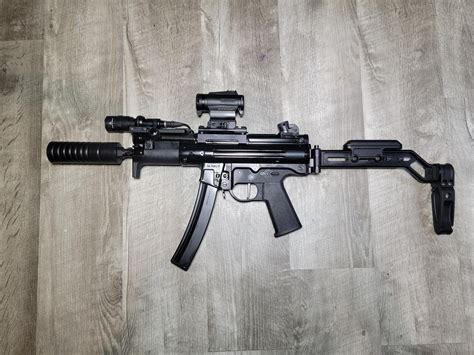

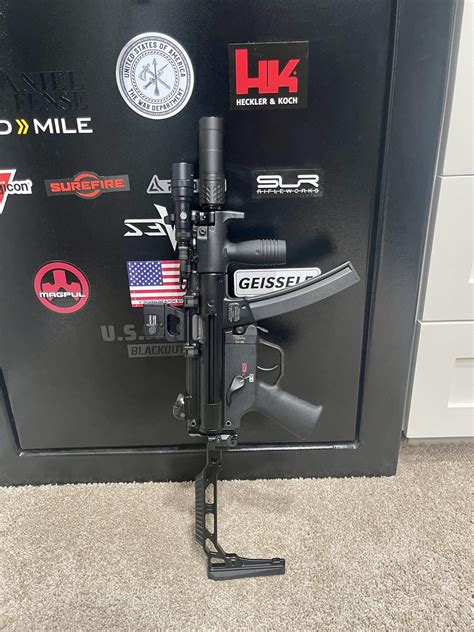

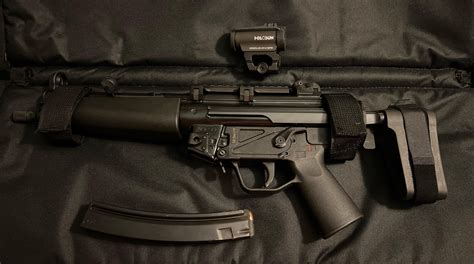

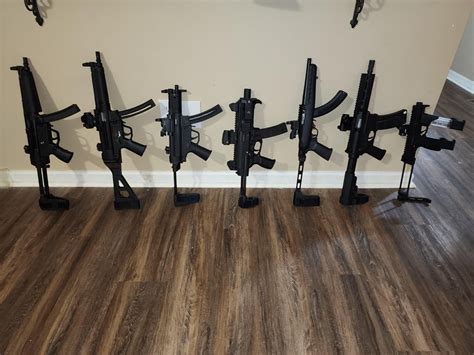

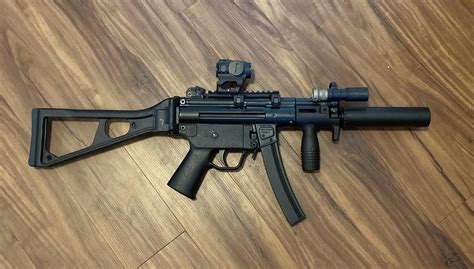

The inception of the Roller Delayed Blowback mechanism traces back to the late stages of World War II with the development of the Mauser StG 45(M). However, it truly achieved global fame through the adoption of the H&K G3 rifle and the MP5 submachine gun. The MP5, in particular, solidified the reputation of this operating system, as it provided the precision and controllability required by elite law enforcement and military units globally.
Over the decades, the design has been refined, but the core geometry remains largely unchanged. Modern manufacturers have experimented with different locking piece angles to tune the timing of the action, effectively allowing for the use of suppressed platforms or different ammunition velocities. This modularity is a testament to the versatility of the original design, proving that a mechanical concept from the 1940s still holds immense value in modern tactical applications.
Key Considerations for Maintenance and Tuning
Operating a firearm equipped with Roller Delayed Blowback requires a specific understanding of "bolt gap." The bolt gap is the distance between the rear of the bolt head and the front of the bolt carrier when the action is closed. This measurement is the definitive health check for the system. As the rollers and the locking piece wear down over thousands of rounds, the bolt gap will decrease.
If the gap becomes too small, the bolt will not unlock properly, and if it disappears, the firearm may experience "out of battery" firing, which is hazardous. Owners of these firearms should utilize feeler gauges periodically to ensure their bolt gap remains within factory specifications. If the gap is out of spec, it is usually corrected by installing "plus" or "minus" sized rollers to compensate for the wear in the components.
⚠️ Note: Always consult the specific manufacturer’s technical manual for the correct bolt gap measurement, as this can vary significantly between different models and calibers.
The enduring legacy of the roller-delayed system is a tribute to the ingenuity of mid-century firearms design. By shifting the burden of pressure management from brute mass to precise mechanical geometry, this system created a platform that is not only robust and reliable but also remarkably pleasant to shoot. Whether you are a competitive shooter looking for the flattest recoil possible or a collector appreciating the mechanical beauty of German engineering, the Roller Delayed Blowback action stands out as a high-water mark in the industry. As the firearms world continues to iterate on these designs, it remains clear that the combination of rollers and locking pieces will continue to influence action development for years to come.
