In the vast landscape of chemical engineering and laboratory research, the Reflux Condenser stands as one of the most fundamental pieces of apparatus. Whether you are conducting simple solvent extraction or complex organic synthesis, managing the state of your reagents—keeping them in the reaction vessel while allowing them to boil—is a critical challenge. The reflux process allows a reaction to proceed at the boiling point of the solvent for extended periods without the loss of material, ensuring higher yields and more complete reactions. By understanding the mechanics, types, and operational nuances of this device, researchers can significantly improve the efficiency and safety of their laboratory workflows.
Understanding the Mechanics of a Reflux Condenser

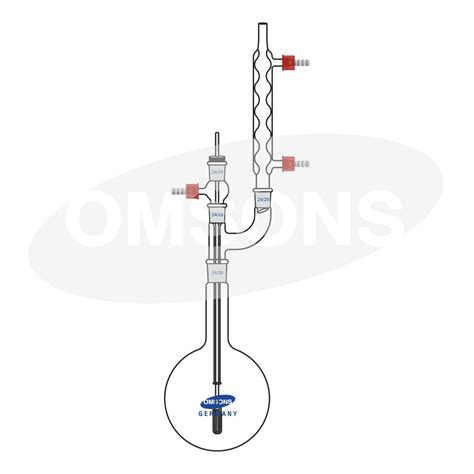

At its core, a Reflux Condenser operates on the principle of heat exchange. When a liquid is heated to its boiling point, it turns into vapor. In a closed system, this vapor would simply escape or build up pressure until the container fails. A reflux condenser sits atop the reaction flask, providing a cool surface—usually chilled by circulating water or air—that forces the vapor to condense back into a liquid state. This liquid then drips back into the reaction mixture, creating a continuous cycle of boiling and condensing.
This process is essential for reactions that require high thermal energy over time. By maintaining the solvent within the system, the concentration of the reactants remains constant, allowing the equilibrium of the reaction to shift toward the desired products. The efficiency of the condenser depends on several factors, including the surface area, the temperature gradient, and the coolant flow rate.
Types of Condensers and Their Applications
There is no "one-size-fits-all" solution when selecting glassware. Depending on the physical properties of the solvent and the required temperature, different designs are employed:

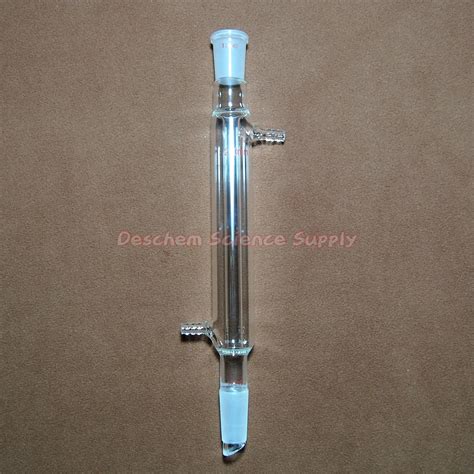

- Liebig Condenser: Features a straight inner tube surrounded by a cooling jacket. It is the most common but has limited surface area. It is typically used for simple distillations rather than intense reflux.
- Allihn Condenser: Often called a "bulb" or "ball" condenser, it features a series of bulbs on the inner tube. This increases the surface area significantly, making it ideal for high-boiling point solvents.

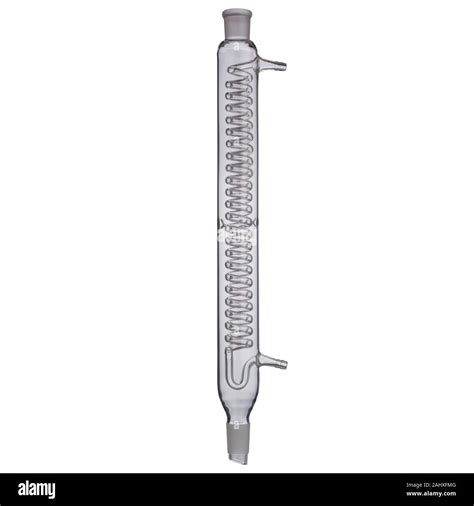

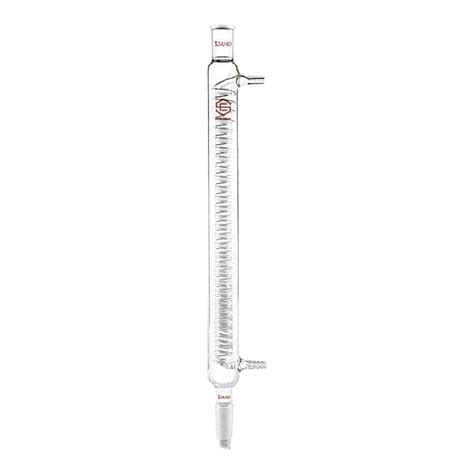

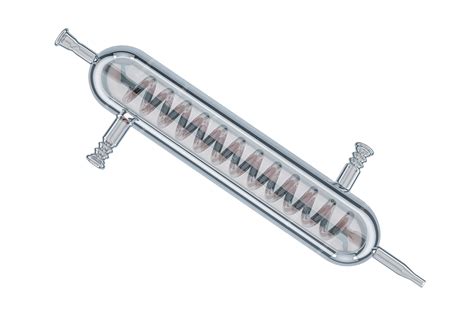

- Graham Condenser: Contains a coiled inner tube. It provides a massive surface area for condensation, making it perfect for volatile solvents that are difficult to trap.

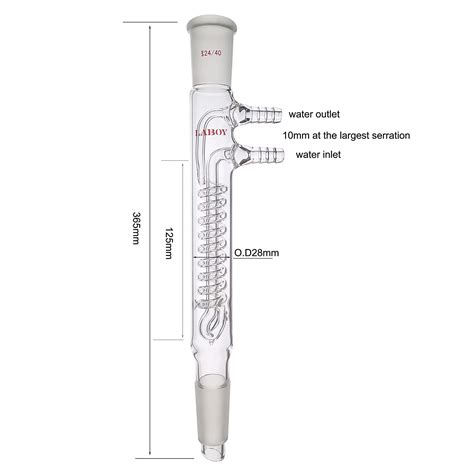

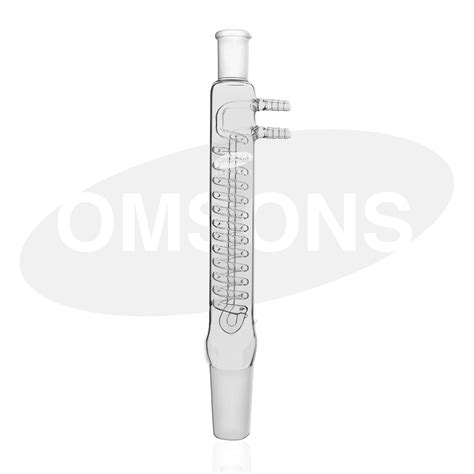

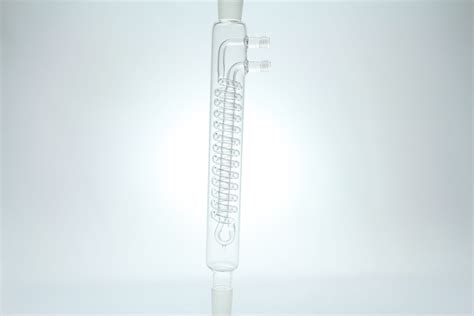

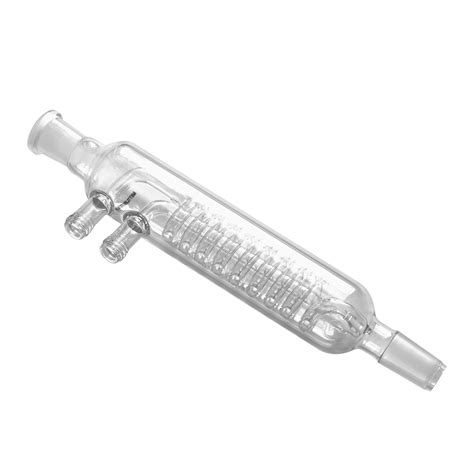

- Dimroth Condenser: The coolant flows through a coil inside the outer jacket. These are highly efficient and often used in sophisticated chemical synthesis setups.
The following table provides a quick reference to help you choose the right condenser based on your solvent properties:
| Condenser Type | Best For | Efficiency |
|---|---|---|
| Liebig | Water-based, high boiling points | Low |
| Allihn | Organic solvents | Medium |
| Graham | Low boiling points/Volatile | High |
| Dimroth | Large scale/General purpose | Very High |
Operational Best Practices

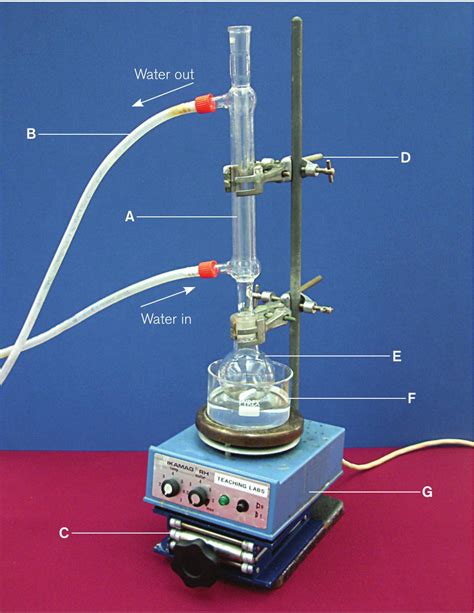

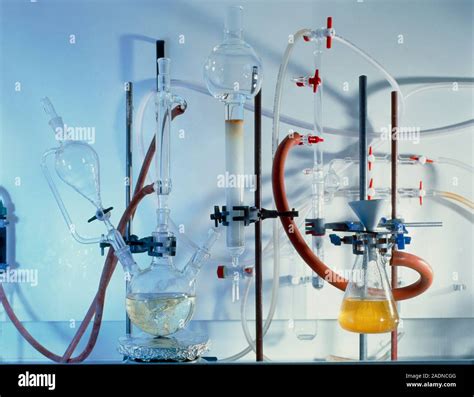

To ensure a smooth experimental process, laboratory safety and setup precision are paramount. Setting up a Reflux Condenser requires careful attention to detail. Always ensure the water flow enters the condenser from the bottom and exits through the top. This "bottom-up" flow ensures that the condenser jacket is always completely filled with water, preventing air pockets that could significantly reduce cooling efficiency.
⚠️ Note: Always verify that your water hoses are securely clamped. A sudden leak or hose detachment can lead to flooding the laboratory bench or causing a fire hazard if water reaches electronic heating mantles.
Additionally, never heat a closed system. Ensure that your setup is vented to the atmosphere, typically through the top of the condenser. Failure to do so will result in a rapid buildup of pressure, potentially causing the glassware to shatter. When selecting heating methods, an oil bath or a heating mantle is generally preferred over an open flame, especially when dealing with flammable organic solvents.
Common Challenges and Troubleshooting
Even with a perfect setup, issues can arise. One common problem is "flooding," where the vapor rises faster than the condenser can turn it back into liquid. This results in the solvent reaching the top of the condenser and potentially escaping. If you observe vapor reaching the top, lower the heat source immediately and consider increasing the coolant flow rate or using a more efficient condenser type.
Another issue is "bumping," where large bubbles of vapor form rapidly, causing the liquid to splash violently. To mitigate this, always add boiling stones or a magnetic stir bar to the reaction flask. These provide nucleation sites, encouraging smooth, steady boiling rather than localized overheating.
Safety Considerations for Reflux Processes
Safety is the cornerstone of any chemical procedure. When performing reflux, you are essentially creating a concentrated hot vapor environment. If the condenser fails, those vapors are released into the laboratory, which can be toxic, flammable, or corrosive.
- Use a Fume Hood: Always perform reflux reactions inside a certified fume hood to manage any potential vapor leaks.
- Check Glassware Integrity: Inspect your condenser for "star cracks" or chips. Thermal stress can cause weakened glass to break during long-term heating.
- Grease Joints Appropriately: Use high-quality joint grease to prevent the condenser from becoming "seized" to the flask, which is a common occurrence after prolonged heating.
- Monitor Water Supply: If the building's water pressure is unreliable, consider using a recirculating chiller system to maintain a constant coolant temperature.
💡 Note: For reactions lasting several hours or days, consider using a digital temperature controller to monitor your heating mantle, which prevents the system from overheating in your absence.
Advancements in Condenser Technology
While traditional glass condensers remain the gold standard, modern technology has introduced more sustainable options. Waterless air condensers are becoming increasingly popular in green chemistry laboratories. These devices use specialized fins or geometries to dissipate heat through air convection alone. While they may not be suitable for low-boiling point solvents, they represent a significant step forward in reducing the environmental impact and utility costs associated with high-volume water consumption in laboratory settings.
As research evolves, the versatility of the Reflux Condenser continues to be a staple in synthetic chemistry. Whether you are dealing with standard aqueous reactions or sensitive anhydrous syntheses, the ability to control phase changes is an indispensable skill. By mastering the selection of the correct condenser, ensuring proper water circulation, and adhering to strict safety protocols, researchers can achieve highly reproducible results while minimizing the risks inherent in chemical processing. This foundational understanding not only safeguards the operator but also elevates the quality of scientific inquiry, allowing for more complex transformations to be explored with confidence and precision in the modern laboratory environment.
