Understanding the three-dimensional arrangement of atoms in a molecule is fundamental to organic chemistry. Among the various ways to describe this spatial orientation, the R and S configuration—part of the Cahn-Ingold-Prelog (CIP) priority rules—stands out as the most precise system for defining the absolute configuration of stereocenters. Unlike relative configurations, which compare one molecule to another, the R/S system provides an unambiguous description of each chiral center, ensuring that chemists worldwide can visualize and communicate molecular structures accurately. Mastering this system is essential for anyone delving into pharmacology, biochemistry, or advanced synthetic chemistry.
The Foundations of Chirality and Stereocenters
To grasp the R and S configuration, one must first identify a chiral center, also known as a stereocenter. A chiral center is typically a carbon atom bonded to four different groups. Because these groups are arranged in a tetrahedral geometry, they can be oriented in two distinct ways that are mirror images of each other, much like your left and right hands. These mirror-image pairs are called enantiomers. Without a standardized system like the CIP rules, describing which enantiomer is being discussed would be nearly impossible.
Understanding the Cahn-Ingold-Prelog (CIP) Priority Rules
The core of determining configuration lies in assigning priorities to the four groups attached to the chiral center. This process is hierarchical and follows specific logic:
- Atomic Number Priority: The primary factor is the atomic number of the atom directly attached to the chiral center. The higher the atomic number, the higher the priority. For example, Iodine (I) takes precedence over Bromine (Br), which takes precedence over Chlorine (Cl).
- Tie-Breaking with Next Atoms: If the atoms attached to the chiral center are the same (e.g., two different carbon chains), look at the atoms attached to those atoms. Compare the list of atoms attached to each branch, atom by atom, in decreasing order of atomic number.
- Multiple Bonds: Double or triple bonds are treated as if the atom is bonded to multiple individual atoms of the same type. A carbonyl group (C=O), for instance, is treated as the carbon being bonded to two oxygens.
The table below summarizes the general priority ranking for common atoms found in organic chemistry:
| Priority | Atom / Functional Group |
|---|---|
| 1 (Highest) | -I (Iodine) |
| 2 | -Br (Bromine) |
| 3 | -Cl (Chlorine) |
| 4 | -F (Fluorine) |
| 5 | -OH (Oxygen) |
| 6 (Lowest) | -H (Hydrogen) |
Steps to Determine the R and S Configuration
Once you have assigned priorities (1, 2, 3, and 4) to the four groups, follow these systematic steps to determine the configuration:
- Orient the Molecule: Rotate the molecule mentally or on paper so that the group with the lowest priority (usually 4, the Hydrogen atom) is pointing away from you, into the page (indicated by a dashed bond).
- Trace the Path: Look at the remaining three groups (1, 2, and 3). Trace a path from 1 to 2 to 3.
- Assign the Label:
⚠️ Note: If the lowest priority group is pointing toward you (on a wedge), the result is reversed. You can either perform the trace and then swap the final result (R becomes S and vice versa) or rotate the molecule in your mind to put the lowest priority group in the back.
Handling Complex Molecules

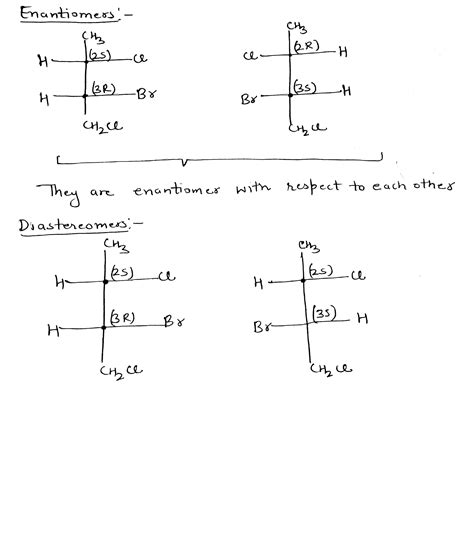

When dealing with complex molecules, especially those with multiple chiral centers, the R and S configuration remains the gold standard. In these cases, you must specify the configuration for each center individually. For instance, a molecule might be named (2R, 3S)-2-bromo-3-chlorobutane. This precision is vital in the pharmaceutical industry, where one enantiomer of a drug might be curative while its mirror image could be inert or even toxic.
When determining priority in complex substituents, remember the "first point of difference" rule. If you have a -CH2CH2Cl group and a -CH2CH2OH group, you compare the atoms at each position along the chain until a difference in atomic number is found. In this case, at the terminal position, Chlorine (atomic number 17) outranks Oxygen (atomic number 8), giving the chloro-substituted chain higher priority.
Common Pitfalls and How to Avoid Them

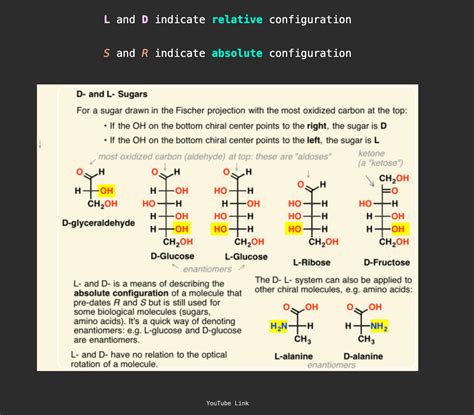

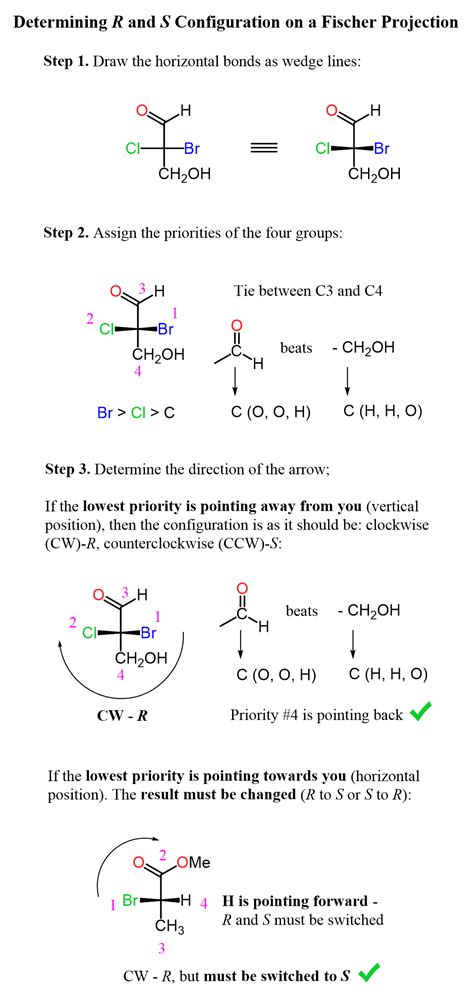

Students often struggle when the molecule is drawn in a flat projection rather than a 3D perspective. If you are working with Fisher Projections, remember that the horizontal bonds are coming toward you and vertical bonds are pointing away. This can significantly change how you apply the R and S configuration rules. Another frequent error is forgetting to prioritize the atoms correctly when isotopes are present; remember that higher atomic mass indicates higher priority when the atomic numbers are identical (e.g., Deuterium beats Hydrogen).
💡 Note: Always double-check your priority assignments. A single error in priority ranking will lead to the incorrect R or S designation, which can completely alter the perceived stereochemical nature of the molecule.
Practical Applications in Science
The ability to assign R and S configuration allows researchers to characterize natural products and synthesize drugs with high specificity. Because enzymes are chiral, they interact with molecules differently based on their absolute configuration. A drug synthesized in the lab must often be separated into its R and S forms to ensure that only the active, desired enantiomer is administered to a patient. This field, known as asymmetric synthesis, relies entirely on the rigor provided by the Cahn-Ingold-Prelog system to ensure that molecular chirality is perfectly controlled during chemical reactions.
Mastering the R and S system is an essential milestone in any chemistry curriculum. By breaking down the molecule into its fundamental spatial components and applying the CIP priority rules with patience, you can reliably determine the absolute configuration of any chiral center. Start by practicing with simple molecules like amino acids or halogenated alkanes before moving to more complex polycyclic compounds. With enough practice, the process of visualizing these three-dimensional arrangements becomes second nature, allowing you to focus on the broader implications of stereochemistry in chemical reactivity and biological function. Consistent application of these rules ensures that the identity and function of complex molecules remain consistent, regardless of the structural representation used on the page.
