In the vast world of biological imaging, few innovations have transformed the way researchers observe living cells quite like Phase Contrast Microscopy. Historically, biologists struggled to study unstained, living specimens because most cellular structures—such as the nucleus, mitochondria, and cytoplasm—are essentially transparent. These "phase objects" do not absorb light in a way that creates contrast under standard brightfield illumination, making them nearly invisible without the use of chemical dyes. However, staining often kills the very cells being studied. By leveraging the physical properties of light, specifically the retardation of wave phases as they pass through dense or thick structures, this specialized imaging technique allows scientists to visualize the intricate machinery of life in its natural, undisturbed state.
The Physics Behind Phase Contrast Microscopy
To understand how Phase Contrast Microscopy works, one must first consider the nature of light as a wave. When light passes through a transparent specimen, it undergoes a slight delay, or "phase shift," caused by the refractive index of the cellular components. While the human eye or standard camera sensors cannot detect these shifts in phase, they are capable of detecting changes in amplitude (intensity) and color. The genius of phase contrast lies in its ability to convert these invisible phase shifts into visible differences in brightness.

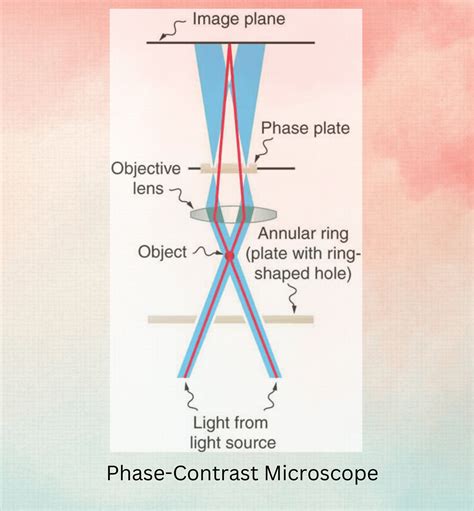

The optical system achieves this through two critical components integrated into the microscope:
- Annular Diaphragm: Positioned in the condenser, this creates a hollow cone of light that illuminates the specimen.
- Phase Plate: Located within the objective lens, this contains a ring that advances or retards the phase of the undeviated light relative to the light diffracted by the specimen.
When the undiffracted light and the diffracted light recombine at the image plane, they undergo constructive or destructive interference. This process creates the characteristic image where dense structures appear dark against a lighter background, or vice versa, effectively mapping the refractive index variations of the cell into visible contrast.
Key Advantages for Biological Research
The primary appeal of this technique is its non-invasive nature. Because researchers no longer need to rely on chemical fixatives or dyes, they can observe dynamic processes—such as cell division (mitosis), cytoplasmic streaming, and motility—in real-time. This has made it an indispensable tool for fields ranging from developmental biology to microbiology and pharmacology.
Below is a summary of the comparative advantages of this technology over traditional brightfield methods:
| Feature | Brightfield Microscopy | Phase Contrast Microscopy |
|---|---|---|
| Specimen Staining | Required for contrast | Not required |
| Living Cells | Difficult to observe | Ideal for observation |
| Contrast Level | Low for transparent samples | High for transparent samples |
| Equipment Needs | Standard optics | Specialized phase plates/annuli |
⚠️ Note: Always ensure the phase ring in the objective lens is perfectly aligned with the corresponding annular diaphragm in the condenser; otherwise, the image will lose its intended contrast and introduce unwanted artifacts.
Technical Requirements for Optimal Imaging
Achieving high-quality images requires more than just a phase contrast objective. The specimen itself must be kept in a chamber that allows light to pass through without distortion. Thin glass-bottom dishes are generally preferred over thick plastic slides, as the refractive index of the mounting medium and the cover glass can significantly affect the interference patterns generated by the phase plate. Furthermore, because the technique relies on specific light paths, any vibration in the microscope environment can lead to blurred phase halos or flickering images.
When setting up your equipment, follow these fundamental adjustments:
- Alignment: Use a centering telescope to verify that the condenser annulus perfectly overlaps with the phase plate ring.
- Objective Matching: Ensure the condenser setting (e.g., PH1, PH2, PH3) matches the objective lens currently in use.
- Lighting: Use high-intensity illumination to compensate for the light lost through the absorbing phase plate.
Applications in Modern Science
The versatility of Phase Contrast Microscopy extends into diverse scientific domains. In clinical settings, it is frequently used for examining unfixed human tissue samples or blood cells, allowing for rapid diagnosis without the delay of staining procedures. In the laboratory, it is the gold standard for monitoring cell culture health, allowing researchers to quickly detect signs of microbial contamination or cell death (apoptosis) in bioreactors.

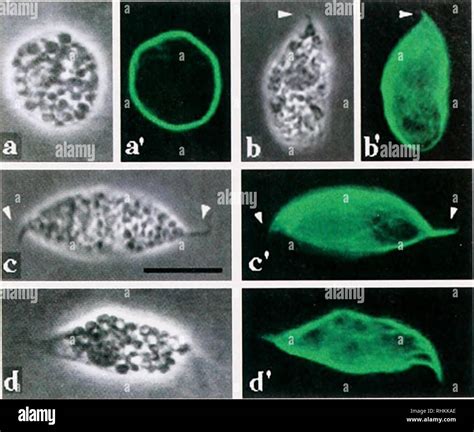

Additionally, when combined with fluorescence microscopy, researchers can overlay structural information with molecular localization. This dual approach provides a comprehensive view of how proteins behave within the physical context of the cell, further cementing the role of phase imaging as a foundational pillar in biological visualization.
💡 Note: While phase contrast excels at observing thin, flat samples, it can struggle with thick specimens due to the formation of "halos" around high-contrast edges, which can obscure fine detail; consider using Differential Interference Contrast (DIC) for thicker samples.
The Future of Phase-Based Imaging
As we look forward, the integration of digital image processing with phase contrast optics is opening new doors. Computational phase retrieval algorithms can now post-process raw images to remove artifacts and improve spatial resolution beyond the diffraction limit of standard lenses. As these tools become more accessible, the ability to extract quantitative data—such as the dry mass of a cell or its precise refractive index—is transforming qualitative visual observation into quantitative biological analysis. Phase Contrast Microscopy remains not just a window into the micro-world, but an evolving tool that continues to bridge the gap between simple observation and deep quantitative insight.
In summary, the transition from basic brightfield illumination to phase-enhanced imaging has been one of the most significant leaps in microscopy history. By transforming phase shifts into intensity variations, researchers have gained the ability to study life in its most natural state. From its elegant use of light interference to its critical role in modern cell culture, this method continues to be an essential instrument in the biologist’s toolkit. As optical technology and digital processing continue to advance, the clarity and information density provided by these systems will undoubtedly remain at the forefront of cellular discovery, ensuring that we continue to uncover the hidden complexities of life with ever-increasing precision.
