In the evolving landscape of high-performance engineering plastics, Pa66 Gf30 has emerged as a cornerstone material for manufacturers seeking a perfect synergy between mechanical strength, thermal stability, and cost-efficiency. This material, which consists of Polyamide 66 reinforced with 30% glass fiber, is widely recognized for its ability to bridge the gap between traditional plastics and metallic components. By integrating glass fibers into the polymer matrix, engineers can significantly elevate the structural integrity of the base material, making it an indispensable asset in automotive, industrial, and consumer electronics applications.
Understanding the Composition of Pa66 Gf30

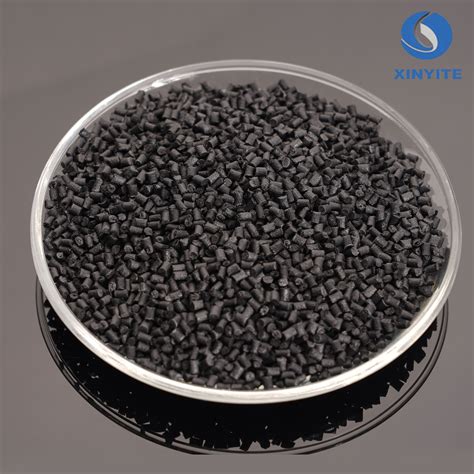

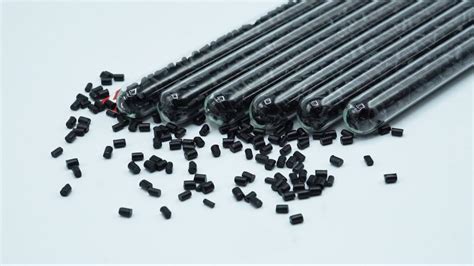

To grasp why Pa66 Gf30 is so widely utilized, it is essential to understand its two primary components. Polyamide 66 (Nylon 66) is a semi-crystalline thermoplastic known for its inherent toughness and chemical resistance. However, on its own, it may lack the stiffness required for load-bearing applications. The addition of 30% glass fiber reinforces the structure, creating a composite that exhibits:
- Increased Tensile Strength: The glass fibers act as a skeleton, drastically improving the material's resistance to pulling forces.
- Enhanced Dimensional Stability: It reduces the coefficient of thermal expansion, ensuring parts maintain their shape under varying temperature conditions.
- Improved Creep Resistance: Under sustained mechanical stress, the material is less likely to deform over time compared to unfilled resins.
This reinforcement process transforms a standard plastic into an engineering powerhouse, capable of withstanding harsh environmental stressors while maintaining high performance over long lifecycles.
Mechanical and Thermal Advantages
The primary reason for selecting Pa66 Gf30 lies in its exceptional mechanical properties. Unlike unfilled polyamides, the 30% glass fiber loading shifts the material into a higher category of performance. It offers high rigidity and impact resistance, which are critical for components that must survive vibration and high-impact environments.
| Property | Typical Value/Characteristic |
|---|---|
| Tensile Strength | High (approx. 150-180 MPa) |
| Flexural Modulus | Exceptional stiffness (approx. 7000-8500 MPa) |
| Heat Deflection Temperature | Excellent thermal threshold (>230°C) |
| Chemical Resistance | Resistant to fuels, oils, and grease |
⚠️ Note: Always account for the moisture absorption characteristics of Polyamide 66. While glass fibers mitigate some expansion, the base resin remains hygroscopic, which can affect the final dimensions of parts used in extremely humid environments.
Applications Across Key Industries
The versatility of Pa66 Gf30 allows it to penetrate diverse sectors. Because it can be injection molded into complex geometries, it often replaces metal die-cast parts, offering weight reduction without sacrificing performance. Key industries include:

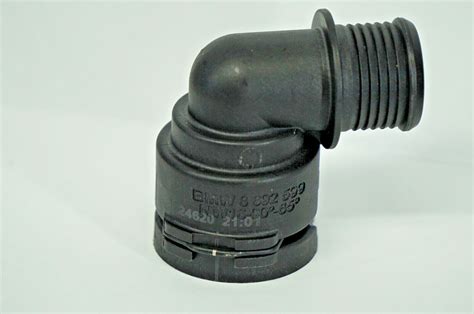

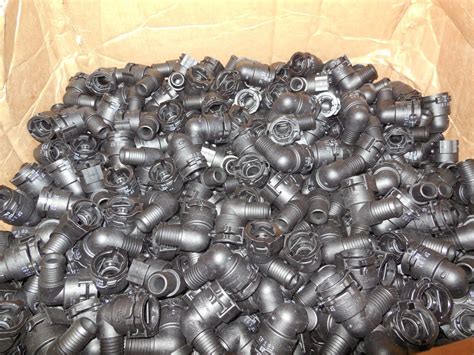

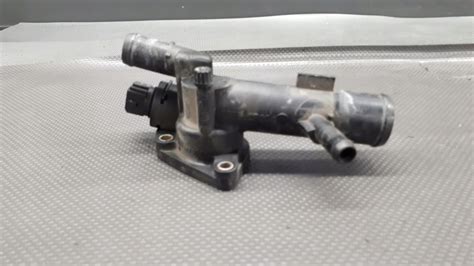

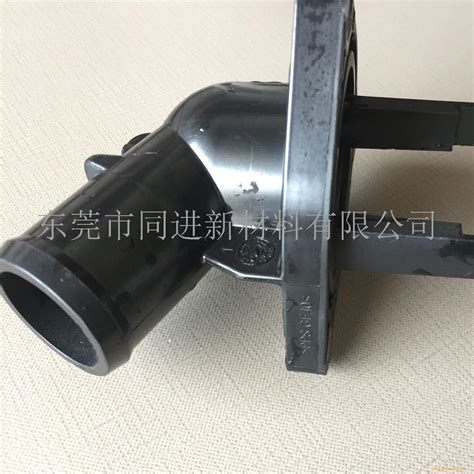

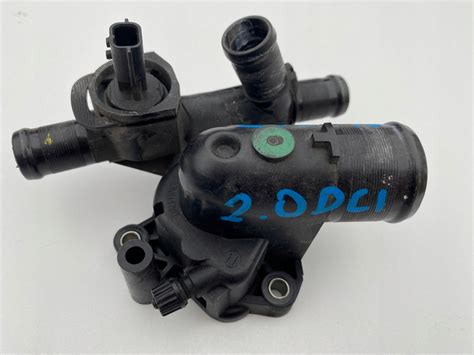

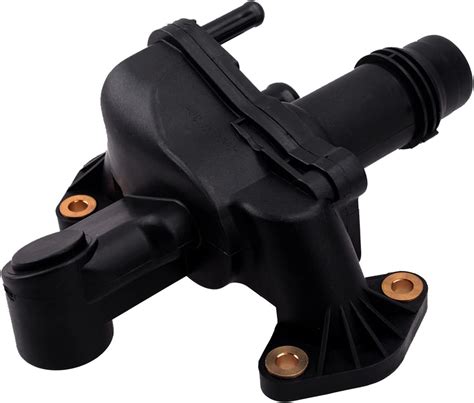

- Automotive Industry: Used in engine covers, air intake manifolds, cooling system components, and door handle assemblies. Its heat resistance is vital for under-the-hood applications.
- Industrial Machinery: Ideal for gear wheels, housings for power tools, and structural brackets that require high wear resistance.

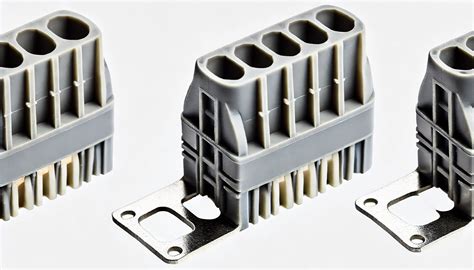

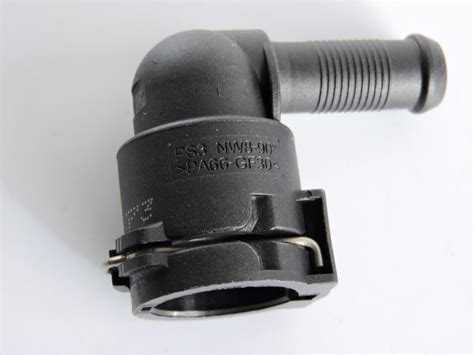

- Electronics: Utilized in connectors, switchgear components, and circuit breaker housings due to its good electrical insulation properties and fire-retardant potential.
Processing and Handling Guidelines
Achieving the best results with Pa66 Gf30 requires precision in the injection molding process. Since the glass fibers are abrasive and sensitive to shear, the molding parameters must be tightly controlled to ensure uniform fiber distribution and prevent structural weaknesses.
Key processing factors include:
- Drying: Moisture content must be kept below 0.2% before processing to prevent hydrolysis, which can degrade the molecular chain and reduce mechanical properties.
- Temperature Control: Melt temperatures generally range between 270°C and 290°C. Maintaining the correct melt temperature ensures the flow properties are adequate for complex mold filling.
- Tooling Considerations: Because glass fibers are abrasive, hardened tool steels or coatings are recommended for molds to prevent premature wear.
⚠️ Note: Avoid excessive residence time in the barrel. High temperatures combined with long dwell times can cause the polymer to degrade, leading to yellowing or a loss of impact strength in the final product.
Design Considerations for Optimization
When designing parts with Pa66 Gf30, engineers should be mindful of fiber orientation. During the injection molding process, fibers tend to align in the direction of the melt flow. This creates anisotropic properties, meaning the part will be stronger in the flow direction than perpendicular to it. To optimize design:
- Wall Thickness Uniformity: Aim for consistent wall thickness to prevent warpage and internal stresses.
- Radii and Fillets: Always use generous radii on corners. This reduces stress concentrations, which is critical given the rigidity of the glass-reinforced composite.
- Gate Placement: Position gates carefully to control the flow path and ensure the fiber orientation aligns with the direction of the expected primary loads.
By conducting thorough finite element analysis (FEA) that accounts for fiber orientation, engineers can confidently push the boundaries of part geometry while relying on the predictable performance of this high-grade plastic.
Final Thoughts on Material Selection
The strategic implementation of Pa66 Gf30 represents a significant leap forward in the capability of plastic components. As industries move toward lighter, more efficient, and more durable products, the role of glass-reinforced polyamides becomes increasingly central. The combination of high mechanical strength, excellent thermal stability, and the ability to replace heavy metallic parts makes it a primary candidate for modern engineering challenges. By strictly adhering to drying protocols, respecting the constraints of fiber orientation, and utilizing proper mold designs, manufacturers can extract maximum value from this material. Embracing this technology allows for the creation of components that are not only lighter and cheaper to manufacture but also capable of thriving in demanding operational environments, proving that Pa66 Gf30 remains a superior choice for robust and reliable product development.
