Whether you are a seasoned electrician or a diligent homeowner attempting a weekend DIY project, safety should always remain your top priority. Working with electricity carries inherent risks, but modern technology has provided us with essential tools to mitigate these dangers. Among these, the Noncontact Voltage Tester stands out as a fundamental piece of equipment in every toolbox. Unlike traditional multimeters that require direct metal-to-metal contact with an electrical conductor, these devices allow you to detect the presence of alternating current (AC) voltage through insulation. This revolutionary approach significantly reduces the risk of accidental shocks, making it an indispensable asset for verifying if a circuit is truly "dead" before you begin your repairs.
Understanding How a Noncontact Voltage Tester Works
The core technology behind a Noncontact Voltage Tester relies on a principle known as capacitive coupling. When the tip of the tester is placed near an energized conductor, it detects the oscillating electromagnetic field produced by the AC voltage. The device then converts this detected field into an audible alert or a visual signal, typically represented by a glowing LED light.
Because these devices do not require a completed electrical circuit to function, they offer a layer of safety that traditional contact-based tools simply cannot match. You do not need to strip wires or expose bare metal to confirm if there is power flowing through a cable. This makes them perfect for quick inspections, troubleshooting flickering lights, or ensuring a switch has been properly turned off during installation.
Key Features to Look For
When you are in the market for a reliable Noncontact Voltage Tester, not all models are created equal. It is vital to consider several features that will ensure your device is both accurate and durable for long-term use.

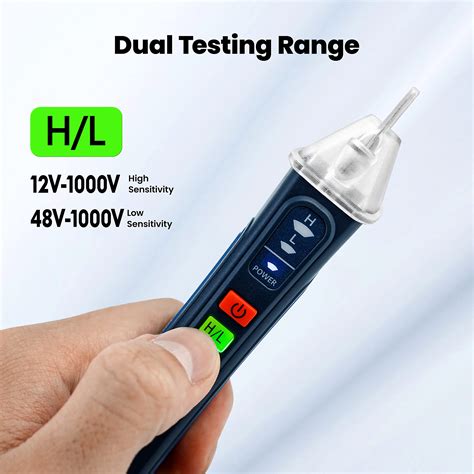

- Sensitivity Adjustment: Some high-end testers allow you to adjust the sensitivity level. This is particularly useful for identifying specific wires within a crowded electrical box.

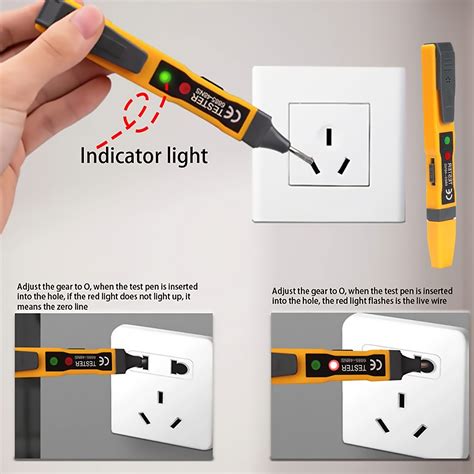

- Visual and Audible Alerts: A combination of a bright light and a beeping tone ensures you notice the warning even in noisy or dimly lit environments.
- Voltage Range: Ensure the device covers the voltage range common in your area (usually 90V to 1000V for household applications).
- Built-in Flashlight: Since electrical work often happens in dark closets or crawl spaces, an integrated LED flashlight is a highly practical bonus.
- Auto-Power Off: To preserve battery life, look for models that automatically shut down after a period of inactivity.
Comparison of Common Detection Tools
To help you understand where the noncontact tester fits into your tool bag, consider the following comparison of typical electrical diagnostic equipment.
| Tool Name | Main Function | Safety Level | Ease of Use |
|---|---|---|---|
| Noncontact Voltage Tester | Quickly checks for live AC | Very High | Extremely Easy |
| Multimeter | Measures voltage, amps, ohms | Moderate (requires contact) | Advanced |
| Circuit Breaker Finder | Identifies specific breakers | High | Moderate |
Safety Protocols for Using Your Tester
Even with the most advanced Noncontact Voltage Tester, you should never grow complacent. These tools are designed to detect electromagnetic fields, but they can occasionally be fooled by static electricity or faulty internal batteries. Following a strict safety protocol is the best way to ensure your well-being.
Always perform a "Live-Dead-Live" test. Before testing the circuit you intend to work on, test the device against a known live power source (like a wall outlet). Then, test the target wire. Finally, test the known live source again to ensure the tool itself did not fail during the process. This simple sequence is the gold standard for electrical safety.
⚠️ Note: Always keep your fingers behind the safety ridge of the tester to avoid accidental contact with any exposed electrical components during your diagnostic process.
Common Applications and Troubleshooting
The versatility of a Noncontact Voltage Tester extends beyond simple outlet checking. It is frequently used for:
- Identifying Breakages: If a cord stops working, you can move the tester along the length of the cable. Where the signal stops, you have likely found the location of an internal wire break.
- Checking Light Fixtures: Quickly determine if a fixture is receiving power before replacing expensive bulbs or ballasts.
- Mapping Circuits: You can use the device to see which outlets are controlled by a specific wall switch by turning the switch on and off while observing the tester’s reaction near the faceplates.
Maintenance and Calibration Tips
To maintain the precision of your tool, keep the sensor tip clean and free of debris. Dust or moisture on the tip can sometimes lead to false readings. Additionally, keep an eye on your battery levels; a dying battery can significantly decrease the detection distance of your Noncontact Voltage Tester, potentially leading to a false sense of security where the tool fails to alert you to a live wire nearby.
If you find that your device is consistently failing the "Live-Dead-Live" test, it is time to replace it. Electrical tools are an investment in your safety, and a failing sensor is not something you want to troubleshoot in the field.
💡 Note: High-voltage environments can sometimes cause interference. If you are working near heavy machinery or large motors, double-check your readings from different angles to ensure accuracy.
Selecting the Right Tool for Your Needs

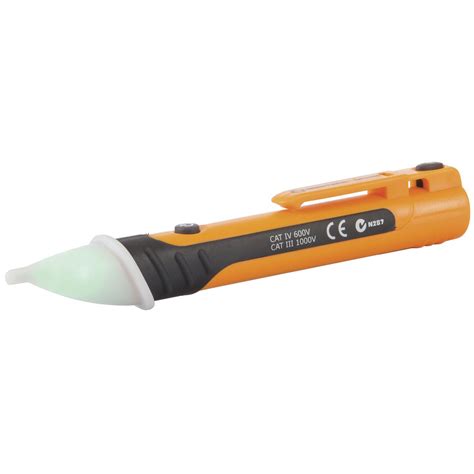

If you are a professional contractor, you may want to invest in an industrial-grade Noncontact Voltage Tester that features a CAT IV rating, which provides superior protection against voltage surges. However, for the average homeowner, a standard CAT III-rated device is typically sufficient for all household electrical needs. Always check the packaging or the manufacturer specifications to ensure the tool is rated for the environment you are working in.
Remember that this tool is a diagnostic instrument, not a precision measurement tool. While it is excellent for detecting the *presence* of electricity, it will not tell you the exact voltage level or the quality of the connection. For those specific tasks, a digital multimeter remains the correct choice. Using the right tool for the right job is the hallmark of a skilled professional and the key to a successful, injury-free project.
By integrating a high-quality Noncontact Voltage Tester into your workflow, you provide yourself with an essential layer of protection that turns an intimidating electrical task into a manageable one. Whether you are performing routine maintenance or tackling a new electrical installation, having this device in your pocket ensures that you are never left guessing about the state of a circuit. While technology continues to evolve, the core requirement of electrical work—safety first—remains constant, and this tool serves as your most reliable companion in upholding that standard. Keep your equipment in good condition, follow tested safety protocols, and approach every project with the caution it deserves to ensure your home remains a safe and functional space.
