The human ankle is a masterpiece of biological engineering, designed to support our entire body weight while providing the mobility required for complex movements like walking, running, and jumping. At the heart of this functional complexity lies the mortise of the ankle. This specific anatomical structure is essentially a socket formed by the distal ends of the tibia and fibula, which cradles the superior part of the talus bone. Understanding how this structure works is crucial, not just for medical professionals, but for anyone looking to gain insight into ankle stability and the mechanisms behind common injuries like sprains and fractures.
What Exactly Is the Mortise of the Ankle?
To visualize the mortise of the ankle, imagine a traditional woodworking joint where a projection on one piece of wood fits into a slot on another. In the ankle, the "mortise" is the three-sided socket created by the medial malleolus (inner ankle bone), the lateral malleolus (outer ankle bone), and the distal tibial plafond (the ceiling of the joint). The "tenon" or the piece that fits into this socket is the body of the talus bone.
This configuration is often referred to as the talocrural joint. It is a hinge joint that primarily facilitates dorsiflexion (moving the foot upward toward the shin) and plantarflexion (pointing the toes downward). Because the talus is wider anteriorly (at the front) than posteriorly (at the back), the mortise becomes tighter and more stable when you move into dorsiflexion, which is why your ankle feels most secure when your foot is planted firmly on the ground during a stride.
Anatomy and Structural Components
The stability of this joint depends on more than just the shape of the bones. Several critical structures hold the mortise of the ankle together, ensuring it can withstand significant forces without dislocating. These components include:
- The Tibial Plafond: The weight-bearing surface at the bottom of the tibia.
- The Medial Malleolus: Part of the tibia that provides structural support on the inside of the ankle.
- The Lateral Malleolus: Part of the fibula that provides structural support on the outside.
- The Syndesmosis: A fibrous connective tissue area that holds the tibia and fibula together, preventing the mortise from widening.
- The Deltoid Ligament: A strong, complex ligament on the inside that stabilizes the joint against outward tilting.
⚠️ Note: If the syndesmosis is injured, the mortise of the ankle loses its structural integrity, leading to a condition often called a "high ankle sprain," which takes significantly longer to heal than a standard lateral ligament sprain.
The Importance of Mortise Stability
When we talk about joint stability, we are talking about the ability of the mortise of the ankle to remain centered and congruent under load. If the mortise widens even by a few millimeters, the contact pressure within the joint can shift dramatically. This uneven distribution of force is a leading cause of post-traumatic arthritis. Over time, the uneven grinding wears down the hyaline cartilage, leading to pain and limited range of motion.
Maintaining a perfect fit within the mortise is essential for athletic performance and daily living. Athletes, in particular, rely on the integrity of this joint to change direction rapidly. If the mortise is unstable, the foot becomes unreliable during pivots, increasing the risk of secondary injuries to the knees or hips as the body compensates for the lack of stability below.
| Component | Primary Function |
|---|---|
| Talus | Acts as the pivot point in the mortise socket. |
| Tibia | Provides the primary weight-bearing ceiling. |
| Fibula | Provides lateral stability and prevents widening. |
| Syndesmotic Ligaments | Connect the tibia and fibula for structural unity. |
Common Injuries and Clinical Implications
Injury to the mortise of the ankle is common in high-impact sports and accidents. The most frequent injury is the malleolar fracture. If the bone breaks, the "socket" shape is distorted, which is why surgeons often use plates and screws to restore the exact anatomy of the mortise. If the mortise is not perfectly realigned, the ankle joint will suffer from chronic instability and premature degeneration.

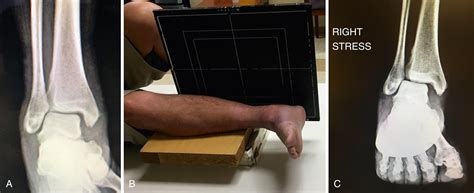

Another clinical concern is the widening of the mortise due to chronic ligament laxity. When the ligaments (specifically the syndesmotic ones) become stretched or torn, the fibula and tibia begin to move apart. This is clinically observed using an X-ray stress test, where a doctor evaluates whether the talus shifts within the mortise.
Diagnostic Approaches
Healthcare providers typically utilize several imaging modalities to assess the health of the mortise of the ankle:
- Standard Radiographs (X-rays): Usually taken in three views (AP, Lateral, and Mortise view) to visualize bone alignment.

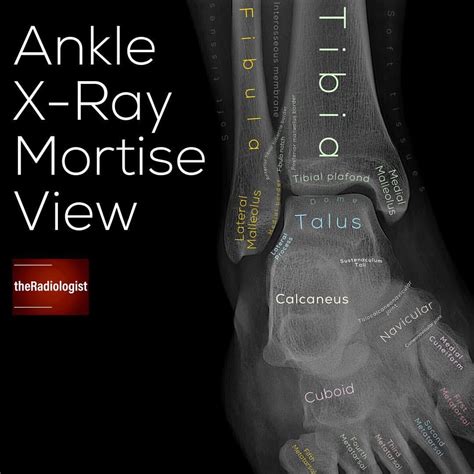

- Mortise View X-ray: A specialized projection that requires internal rotation of the foot to clearly see the joint space between the talus and the malleoli.
- CT Scans: Used if a fracture is suspected to see the exact displacement or comminution of the bone fragments.
- MRI: Primarily used to look at the ligamentous integrity of the syndesmosis if the bones appear aligned on X-ray but the patient reports persistent pain.
💡 Note: Always consult with a sports medicine specialist or orthopedic surgeon if you experience persistent swelling or a feeling of "giving way" in the ankle, as early intervention can prevent long-term joint degradation.
Maintaining Ankle Health
While you cannot change the shape of your mortise of the ankle, you can strengthen the musculature that protects it. The peroneal muscles, which run along the outside of the lower leg, play a vital role in preventing the excessive inversion that often causes the talus to stress the mortise. Incorporating balance training, such as standing on one leg or using a wobble board, can improve proprioception and help your body stabilize the ankle dynamically during everyday activities.
Proper footwear also plays a role. Shoes with adequate arch support help keep the talus aligned within the mortise, reducing the stress placed on the syndesmotic ligaments during long periods of walking or standing. For those with a history of ankle instability, medical-grade bracing can provide the external support necessary to keep the mortise from undergoing excessive mechanical stress until the internal tissues have had time to strengthen.
In summary, the mortise of the ankle serves as the fundamental anchor for human movement. Its precise architecture—a combination of bone geometry and ligamentous support—ensures that our weight is transferred efficiently from the leg to the foot. Whether you are navigating rugged terrain or simply walking to work, this joint works tirelessly to maintain your stability. By recognizing the importance of this structure and taking steps to protect it through strength training and proper care, you can ensure that your ankles remain healthy, pain-free, and functional for years to come. Recognizing the signs of instability early and seeking professional guidance when injuries occur are the most effective ways to preserve the long-term integrity of this vital anatomical hinge.
