The modern internal combustion engine is a marvel of engineering, relying on a complex symphony of sensors to ensure optimal performance, fuel efficiency, and emissions control. Among these critical components, the Manifold Absolute Pressure Sensor, commonly referred to as the MAP sensor, plays a pivotal role. By constantly monitoring the air pressure inside the intake manifold, this sensor provides the Engine Control Unit (ECU) with the necessary data to calculate air density and determine the precise air-fuel ratio required for combustion. Understanding how this sensor works and why it fails can save you significant time and money during vehicle maintenance.
Understanding the Function of the Manifold Absolute Pressure Sensor
The primary purpose of a Manifold Absolute Pressure Sensor is to measure the vacuum or pressure levels within the intake manifold. Unlike a Mass Air Flow (MAF) sensor, which measures the actual volume of air entering the engine, the MAP sensor calculates the load on the engine based on atmospheric pressure and vacuum. When you press the accelerator pedal, the throttle plate opens, the vacuum in the manifold drops, and the intake pressure rises. The sensor detects this change instantly, sending a voltage signal to the ECU, which then instructs the fuel injectors to compensate by delivering more fuel.
In forced induction systems, such as turbocharged or supercharged engines, the sensor serves a dual purpose. It not only measures vacuum during idling or cruising but also tracks the boost pressure produced by the turbocharger under heavy load. This allows the ECU to adjust ignition timing and fuel delivery to prevent engine knocking or catastrophic failure under high-boost conditions.
Common Symptoms of a Failing Sensor
Because the Manifold Absolute Pressure Sensor is integral to the engine's fueling strategy, its failure often results in noticeable drivability issues. Recognizing these early signs can help you prevent further damage to your catalytic converter or engine internals.
- Rough Idling: If the sensor provides inaccurate data, the ECU may struggle to maintain a steady air-fuel mixture, leading to shaky or erratic idling.
- Reduced Fuel Economy: A faulty sensor often sends a signal that leads the ECU to believe the engine is under a higher load than it actually is, causing it to run "rich" and consume excess fuel.
- Hesitation or Stalling: During acceleration, a malfunctioning unit may fail to update the ECU fast enough, resulting in a noticeable delay or "flat spot" in power delivery.
- Check Engine Light (CEL): The most obvious indicator is the illumination of the dashboard warning light, typically accompanied by diagnostic trouble codes (DTCs) like P0106, P0107, or P0108.
- Engine Misfires: In severe cases, an incorrect air-fuel ratio can lead to incomplete combustion, causing the engine to misfire.
Diagnostic and Maintenance Overview
Testing a Manifold Absolute Pressure Sensor is relatively straightforward if you have access to a digital multimeter or an OBD-II scanner. The sensor typically uses a three-wire configuration: a 5V reference signal, a ground wire, and a signal output wire. By monitoring the voltage output while the engine vacuum changes, you can verify if the sensor is responding accurately according to the manufacturer's specifications.
| Condition | Expected Sensor Behavior | ECU Response |
|---|---|---|
| Key On, Engine Off | Atmospheric Pressure | Baseline Calculation |
| Idle | High Vacuum (Low Pressure) | Lean Fuel Trim |
| Wide Open Throttle | Low Vacuum (High Pressure) | Rich Fuel Trim |
💡 Note: Always consult your vehicle's service manual for specific voltage ranges, as these can vary significantly between different automotive manufacturers and sensor designs.
Replacing a Faulty Unit
If diagnostics confirm that your Manifold Absolute Pressure Sensor is defective, replacement is usually a simple task that requires only basic hand tools. Most sensors are mounted directly to the intake manifold or connected via a small vacuum hose. Ensure the engine is cool before beginning to avoid accidental burns from hot components or coolant lines.
- Locate the sensor using your vehicle's repair manual.

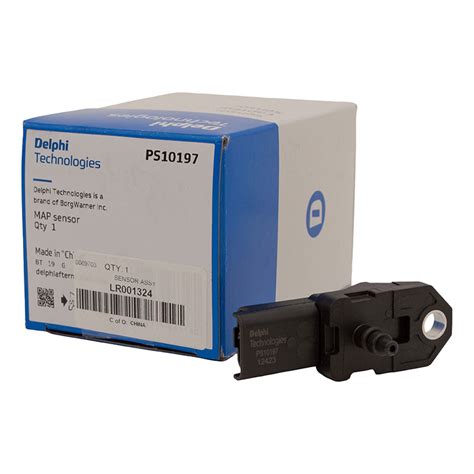

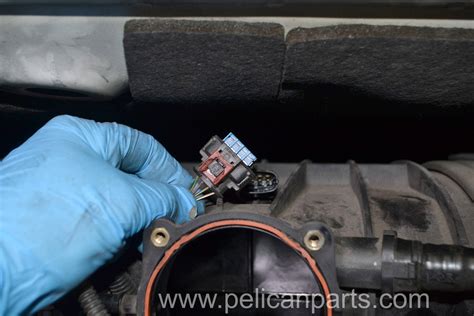

- Carefully disconnect the electrical harness connector.
- Remove the mounting screws or clips holding the sensor in place.
- Clean the mounting area to remove any carbon buildup or oil residue.
- Install the new sensor, ensuring the O-ring or gasket is properly seated to prevent vacuum leaks.
- Reconnect the harness and clear any existing trouble codes with a scanner.
💡 Note: Vacuum leaks are a common misdiagnosis for sensor failure; always inspect the integrity of the vacuum lines and the electrical pigtail before replacing the component itself.
Why Regular Inspection Matters
The Manifold Absolute Pressure Sensor operates in a harsh environment characterized by constant temperature fluctuations, vibration, and exposure to oil vapors. Over time, the internal diaphragm can become coated in carbon deposits or oil, slowing its response time or causing it to drift from its calibrated baseline. Periodic inspection of the sensor and the intake tract can prevent "lazy" sensor performance, which often doesn't trigger a code immediately but slowly degrades fuel efficiency and engine responsiveness.
Keeping your engine management systems in good order extends the lifespan of your vehicle. By prioritizing the health of your intake sensors, you ensure that the ECU always has an accurate picture of what is happening inside the combustion chamber. Whether you are performing routine maintenance or troubleshooting a specific performance issue, keeping this component in mind is a critical step in effective vehicle diagnostics.
Final considerations for your vehicle’s health involve recognizing that sensors, like any mechanical or electronic part, have a finite lifespan. When you encounter symptoms such as poor fuel economy or engine hesitation, treat the sensor data as a primary diagnostic point. By understanding the interaction between manifold pressure and fuel management, you take a proactive stance in vehicle ownership, ensuring that your engine operates with the precision and reliability intended by its designers. Maintaining these systems correctly will yield long-term benefits in both the longevity of your engine and the consistency of your driving experience.
