Lichtenberg Wood Burning

The art of Lichtenberg wood burning, often referred to as fractal wood burning, is a fascinating process that combines physics, electricity, and woodworking. By using high-voltage electricity to burn intricate, lightning-like patterns into wood, artists can create stunning, one-of-a-kind pieces that mimic the branching structures of trees, rivers, or neurons. While the results are undeniably beautiful, this technique involves working with extreme electrical currents that can be lethal if safety protocols are not strictly followed. This guide explores the science behind the process, the necessary preparation, and the essential safety measures required to practice this craft effectively.

The Science Behind Fractal Wood Burning

At its core, Lichtenberg wood burning relies on the principle of electrical discharge. When a high-voltage current is applied to a piece of wood treated with a conductive solution—usually a mixture of water and baking soda—the electricity seeks the path of least resistance to travel between two electrodes. Because wood is a natural insulator, the current creates a carbonized path as it travels, branching out in unpredictable ways.

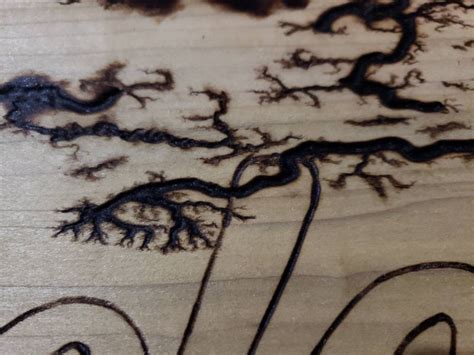

The process creates a “fractal” pattern because the discharge constantly seeks out new, more efficient paths through the wood fibers. As the wood surface chars, it creates a trail of carbon, which is highly conductive, further fueling the expansion of the pattern until the two electrodes meet or the circuit is broken.

Essential Equipment and Materials

To begin experimenting with this technique, you must gather specific materials. Quality tools are essential not just for the aesthetic result, but for maintaining a controlled environment.

• High-Voltage Power Source: Most hobbyists repurpose a transformer from an old microwave oven (MOT), though this is considered highly dangerous.
• Conductive Solution: A mixture of water and baking soda (sodium bicarbonate).
• Wood Selection: Softwoods like pine or plywood often yield the best results due to their grain structure.
• Safety Gear: High-voltage insulated gloves, rubber mats, and a non-conductive workspace.
• Application Tools: Brushes for applying the conductive solution and clamps for securing electrodes.

Step-by-Step Procedure for Lichtenberg Wood Burning

Achieving a crisp, deep fractal pattern requires careful preparation of the wood surface. Follow these steps to ensure a successful burn:

1. Sand the Surface: Use a fine-grit sandpaper to ensure the wood is smooth. Any debris can cause the burn to jump prematurely.
2. Prepare the Solution: Dissolve one tablespoon of baking soda into a cup of warm water. Apply a light, even coat to the surface of the wood. Avoid saturating the wood, as excess water can cause the current to “blaze” across the surface rather than etching deep lines.
3. Set the Electrodes: Place your electrodes at opposite ends of the board. Ensure they are firmly secured to the wood to prevent arcing at the contact points.

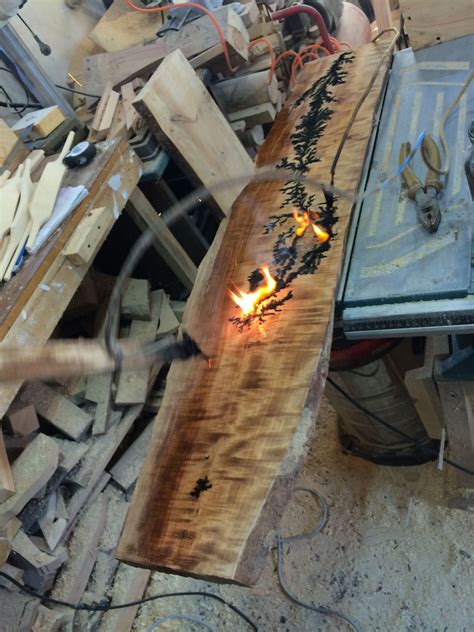

4. Apply Power: Stand back from the wood. Using a remote switch, activate the power source. Observe as the electricity begins to carve the pattern.
5. Monitor and Extinguish: Once the patterns meet, disconnect the power immediately. Use a spray bottle of water to extinguish any active flames or smoldering areas.

⚠️ Note: Always work with a "buddy system." Never perform Lichtenberg wood burning alone, as a single mistake can result in heart failure or fatal electrical shock.

Comparison of Wood Species for Fractal Burning

Safety Protocols and Risk Mitigation

The primary risk associated with Lichtenberg wood burning is electrocution. A microwave transformer can deliver currents upwards of 2,000 volts, which is more than enough to stop a human heart instantaneously. Because these devices are modified, they lack the safety shut-offs found in commercial equipment.

• Never touch the wood while the power is connected.
• Use a “dead-man’s switch” that automatically cuts power if your hand is released.
• Keep the area dry to prevent accidental grounding.
• Wear dielectric gloves rated for high voltage at all times.

⚡ Note: Professional woodworking organizations and many safety associations strongly advise against the use of homemade high-voltage power supplies due to the extreme lethality of this process.

Finishing Your Fractal Project

Once the wood has fully cooled and all embers are extinguished, the next step is cleaning the piece. The char left behind is loose and can be messy. Use a stiff nylon brush to remove the charred carbon from the crevices of the fractal lines. Once the surface is clean, you can blow away any remaining dust with compressed air.

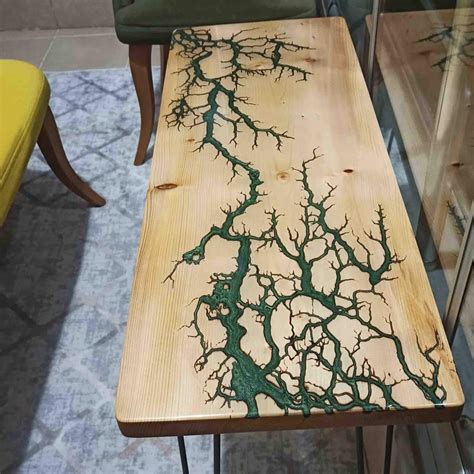

To preserve the design, apply a finish such as polyurethane, epoxy resin, or mineral oil. Epoxy resin is particularly popular for Lichtenberg wood burning projects, as it can be colored with dyes or pigments to fill the burnt channels, creating a striking contrast against the natural wood grain.

Final Thoughts on the Craft

The process of creating Lichtenberg patterns offers a unique intersection of artistic expression and scientific phenomenon. By understanding how electricity interacts with conductive mediums, makers can produce intricate, tree-like designs that are impossible to replicate by hand. However, the allure of these patterns should never overshadow the reality of the risks involved. Proper preparation, strict adherence to electrical safety protocols, and a healthy respect for high-voltage equipment are the prerequisites for any successful project. For those who choose to practice this craft, safety must remain the primary focus throughout the entire journey, ensuring that every piece created remains a source of pride rather than a cautionary tale.
