Osteoarthritis (OA) is one of the most prevalent chronic conditions affecting millions of individuals worldwide, particularly as the global population ages. As the primary cause of joint pain and disability, accurately diagnosing and staging the progression of this degenerative disease is crucial for effective treatment planning. Among the various diagnostic tools available to rheumatologists and orthopedic surgeons, the Kellgren and Lawrence grading system stands out as the gold standard for classifying the severity of knee osteoarthritis using radiographic imaging. By providing a standardized language for clinicians, this system ensures that patients receive appropriate care, ranging from conservative management to surgical intervention.
Understanding the Kellgren and Lawrence Grading System
Developed in 1957 by J.H. Kellgren and J.S. Lawrence, this grading scale relies on standard X-ray images of the affected joint, most commonly the knee. The Kellgren and Lawrence grading system evaluates specific radiographic features, primarily focusing on the presence of osteophytes (bone spurs), joint space narrowing, and subchondral sclerosis (thickening of bone under the cartilage). Because it is based on visible physical changes within the joint structure, it remains the most widely utilized method in both clinical practice and large-scale research studies to track how osteoarthritis progresses over time.
The system categorizes knee osteoarthritis into five distinct stages, ranging from grade 0 (normal joint) to grade 4 (severe disease). This progression allows medical professionals to differentiate between early-stage joint wear and advanced, bone-on-bone contact that typically requires more aggressive medical attention.

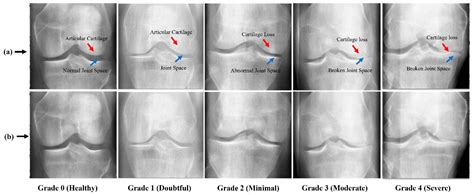

The 5 Stages of the Kellgren and Lawrence Scale
To better understand how this classification works, it is helpful to break down each grade and the corresponding radiographic findings. The transition from one grade to the next often correlates with an increase in clinical symptoms, such as pain, stiffness, and reduced range of motion, although there can sometimes be a discrepancy between the radiographic findings and the patient's perceived level of discomfort.
| Grade | Severity | Radiographic Features |
|---|---|---|
| Grade 0 | None | Normal joint, no radiographic features of OA. |
| Grade 1 | Doubtful | Possible osteophytic lipping and joint space narrowing. |
| Grade 2 | Mild | Definite osteophytes and possible joint space narrowing. |
| Grade 3 | Moderate | Moderate multiple osteophytes, definite joint space narrowing. |
| Grade 4 | Severe | Large osteophytes, marked joint space narrowing, severe sclerosis, and deformity. |
⚠️ Note: While the Kellgren and Lawrence grading system is excellent for visualizing structural damage, it does not always correlate perfectly with the patient’s clinical symptoms; some individuals with Grade 4 findings may experience less pain than those with Grade 2.
Key Radiographic Features Analyzed
The accuracy of the Kellgren and Lawrence grading system relies on the identification of specific markers on X-rays. Radiologists look for these core features to assign a grade:
- Osteophytes: These are bony projections that form along joint margins. They represent the body's attempt to stabilize the joint in response to cartilage loss.
- Joint Space Narrowing (JSN): This is the most indicative sign of cartilage degradation. As the protective cartilage wears away, the gap between the bones on an X-ray appears significantly smaller.
- Subchondral Sclerosis: This refers to the whitening of the bone on an X-ray, which indicates that the underlying bone is becoming denser as it reacts to the increased stress and pressure caused by cartilage loss.
- Bone Deformity: In later stages, the actual shape of the bone ends may begin to alter, leading to misalignment of the joint.
Limitations of the Grading System
Despite its long-standing history and global adoption, the Kellgren and Lawrence grading system is not without its limitations. Modern imaging technologies, such as Magnetic Resonance Imaging (MRI), provide a much clearer picture of soft tissues like cartilage, ligaments, and the synovium. Because the Kellgren and Lawrence system relies solely on plain X-rays, it is inherently limited by the following factors:
- Soft Tissue Blindness: It cannot visualize early cartilage thinning or meniscus tears until they have progressed enough to cause visible bony changes.
- Sensitivity: It may lack the sensitivity required to detect the very earliest onset of osteoarthritis.
- Subjectivity: Even with standardized guidelines, the interpretation of X-rays can vary slightly between different radiologists, leading to inter-observer variability.
Clinical Importance and Treatment Correlation
For patients, receiving a grade based on the Kellgren and Lawrence system can be an important step in setting expectations for long-term treatment. Typically, treatment plans are adjusted based on these findings:
- Grade 1 and 2: These stages often focus on conservative management, including physical therapy, weight management, low-impact exercise, and non-steroidal anti-inflammatory drugs (NSAIDs) to manage mild pain.
- Grade 3: At this moderate stage, patients may require more consistent interventions, such as hyaluronic acid injections, bracing, or more structured physical therapy protocols to preserve mobility.
- Grade 4: Because this stage often involves significant pain and loss of function, surgical options like total knee arthroplasty (knee replacement) are frequently discussed as a primary treatment path.
💡 Note: Always consult with an orthopedic specialist to correlate your radiographic grade with your physical examination, as imaging is only one piece of the diagnostic puzzle.
In summary, the Kellgren and Lawrence grading system remains an essential tool in the orthopedic landscape for its ability to provide a consistent, reliable, and standardized method for assessing the severity of osteoarthritis. While it is primarily focused on bony changes, its role in classifying the progression of joint degradation helps clinicians determine the most effective path forward for patient care. By bridging the gap between imaging results and clinical symptoms, this classification system empowers both doctors and patients to make informed decisions about long-term joint health and treatment options. As musculoskeletal imaging continues to evolve, the system persists as the foundational reference point for clinical practice and ongoing research, ensuring that the management of osteoarthritis remains evidence-based and structured.
