Junctional Escape Rhythm

The human heart is a marvel of biological engineering, relying on a sophisticated electrical system to maintain a steady, life-sustaining rhythm. Under normal circumstances, the sinoatrial (SA) node acts as the heart's natural pacemaker, firing electrical impulses that coordinate the contraction of the atria and ventricles. However, there are instances when this primary pacemaker fails or its signals are blocked. In such critical moments, the heart has built-in backup mechanisms to prevent total electrical silence. One such essential safety feature is the Junctional Escape Rhythm, a protective heartbeat pattern that arises from the atrioventricular (AV) junction.

Table of Contents

Understanding the Mechanics of a Junctional Escape Rhythm

To grasp what a Junctional Escape Rhythm is, one must first understand the anatomy of the heart's conduction system. Located between the atria and the ventricles, the AV junction acts as a critical gateway. While its primary role is to delay the electrical signal to allow for optimal ventricular filling, it also possesses intrinsic automaticity. This means that the cells within the junction are capable of generating their own electrical impulses if they do not receive a faster signal from the SA node above.

When the SA node fails to fire—a condition known as sinus arrest or SA exit block—or when the conduction through the AV node is completely blocked, the AV junction "escapes" from the inhibitory influence of the faster, higher-up centers. It then begins to fire at its own inherent rate, typically between 40 and 60 beats per minute. This is a life-saving mechanism; without it, the heart would cease to pump blood, leading to immediate syncope or cardiac arrest.

Also read: How Much Does Face Surgery Cost In Korea

Diagnostic Criteria on an Electrocardiogram (ECG)

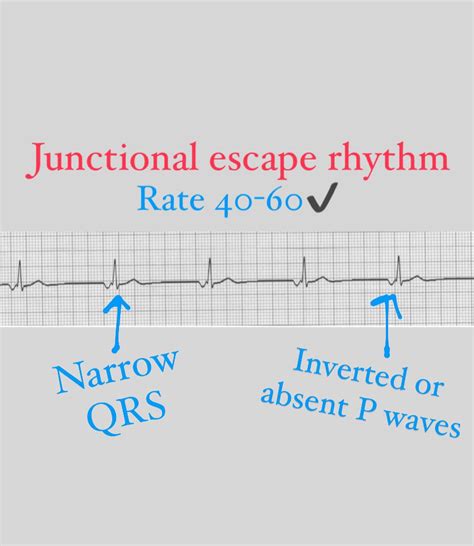

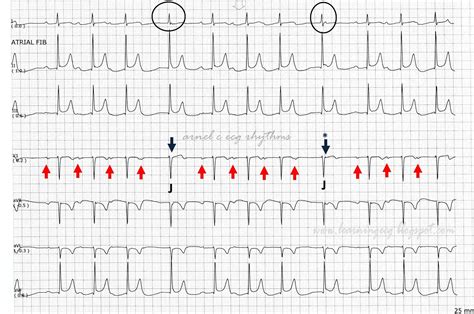

Physicians identify a Junctional Escape Rhythm through specific patterns observed on an electrocardiogram (ECG). Because the electrical impulse originates in the AV junction rather than the SA node, the sequence of atrial and ventricular depolarization is altered, creating a distinct visual signature on the tracing.

Heart Rate: The rhythm typically maintains a steady rate of 40–60 beats per minute. If the rate exceeds 60 beats per minute, it is classified as accelerated junctional rhythm.
P-Wave Characteristics: P-waves are often absent, inverted, or appear just after the QRS complex because the atria are depolarized in a retrograde (backward) fashion from the junction.
QRS Complex: Since the electrical impulse travels through the normal ventricular conduction pathways (the bundle of His and Purkinje fibers), the QRS complex remains narrow, indicating a supraventricular origin.

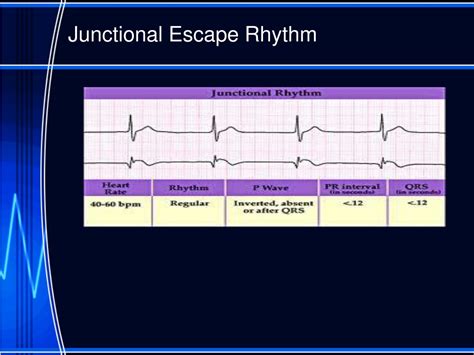

Feature	Characteristics in Junctional Escape
Typical Rate	40–60 beats per minute
P-Wave	Inverted, absent, or retrograde
QRS Duration	Narrow (< 0.12 seconds)
Rhythm Regularity	Generally regular

⚠️ Note: Always differentiate a junctional escape rhythm from a junctional tachycardia; the former is a protective, slow rhythm, whereas the latter is an active, faster rhythm that may indicate underlying pathology.

Causes and Underlying Triggers

The emergence of a Junctional Escape Rhythm is almost always a secondary effect rather than a primary disease. It serves as a clinical marker that the heart's primary pacemaker is not functioning as intended. Understanding why this happens is paramount to effective patient management.

Also read: Face Down Chair After Eye Surgery

Common triggers include:

Excessive Vagal Tone: High levels of parasympathetic activity can suppress the SA node, allowing the junction to take over.
Medication Effects: Certain drugs, such as beta-blockers, calcium channel blockers, and digitalis toxicity, can severely slow the SA node or block conduction.
Ischemic Heart Disease: Damage to the SA node caused by myocardial infarction or chronic coronary artery disease can lead to its failure.
Post-Surgical Complications: Procedures involving the heart, especially near the AV node or atrial structures, may temporarily or permanently disrupt native conduction.
Electrolyte Imbalances: Hypokalemia or hyperkalemia can significantly alter cellular electrical potential, interfering with normal pacemaker function.

Clinical Management and Therapeutic Approach

Because the Junctional Escape Rhythm is a compensatory mechanism, treatment is not always focused on stopping the rhythm itself, but rather on addressing the underlying failure of the primary pacemaker. If the patient is asymptomatic and the heart rate is sufficient to maintain adequate cardiac output, the clinical team may simply monitor the situation.

However, if the rhythm is too slow, causing bradycardia-induced symptoms such as dizziness, lightheadedness, confusion, or syncope, interventions become necessary:

The Critical Role of Clinical Vigilance

The Junctional Escape Rhythm serves as a sentinel event. While it successfully maintains life in the immediate aftermath of primary pacemaker failure, it is inherently unstable and insufficient for high-intensity physical activity or stress. A heart relying on a junctional escape rate of 45 beats per minute cannot increase its output appropriately during exertion, which is why patients often report severe fatigue or shortness of breath.

Continuous monitoring is required to determine the trajectory of the patient's condition. Is this a transient event, perhaps caused by a temporary medication effect, or is it a sign of progressive, irreversible sick sinus syndrome? Medical professionals use long-term ECG monitoring (such as Holter or event monitors) to answer these questions and guide long-term care plans.

In summary, the presence of a junctional escape rhythm indicates that the heart’s primary regulatory mechanism has faltered. This rhythm acts as a vital safety bridge, ensuring that the heart continues to beat even when its primary pacemaker goes offline. By recognizing the ECG signs, identifying the causative factors—such as medication or ischemia—and evaluating the patient’s hemodynamic status, healthcare providers can determine the most appropriate course of action. Whether through temporary observation or the implantation of a pacemaker, the primary objective remains the restoration of a reliable, faster, and more responsive heart rate to ensure long-term stability and quality of life.
