The human heart is a marvel of biological engineering, relying on a sophisticated electrical conduction system to maintain a rhythmic, life-sustaining pulse. While we often think of the sinoatrial (SA) node as the primary pacemaker of the heart, the organ possesses built-in "backup" mechanisms designed to take over when the primary system falters. One of the most fascinating of these mechanisms is the Junctional Escape Beat. Understanding this phenomenon is essential for medical professionals and patients alike, as it represents the heart’s innate ability to preserve circulation even when the primary electrical impulses fail to reach the ventricles or are delayed.
Understanding the Cardiac Conduction System
To grasp the significance of a Junctional Escape Beat, we must first look at how a heartbeat is normally generated. The electrical impulse typically originates in the SA node, located in the right atrium. From there, the signal travels through the atria to the atrioventricular (AV) node, then moves down the Bundle of His and into the Purkinje fibers. This sequence ensures that the chambers contract in a synchronized, efficient manner.
Sometimes, however, the SA node fails to fire, or the impulse is blocked before it reaches the AV node. In these instances, the body relies on secondary pacemaker sites. The AV junction, located near the AV node, is one of these sites. When it senses a pause in the normal rhythm, it will "escape" its usual quiet state and discharge an impulse to trigger a ventricular contraction. This is the definition of the Junctional Escape Beat.
Characteristics of a Junctional Escape Beat
Identifying a Junctional Escape Beat on an electrocardiogram (ECG) is a fundamental skill in cardiac monitoring. Because the impulse originates in the AV junction rather than the SA node, the electrical signal travels differently through the heart, resulting in specific patterns on the ECG trace.
- Narrow QRS Complex: Since the impulse travels through the normal conduction pathway (the His-Purkinje system) once it leaves the AV junction, the QRS complex typically appears narrow and normal in duration.
- Absent or Retrograde P-Waves: Because the electrical signal is moving backward toward the atria or occurring simultaneously with ventricular activation, the P-wave may be absent, inverted, or hidden within the QRS complex.
- Timing: These beats occur after a longer-than-normal interval following the preceding beat, signifying that the heart was "waiting" for the primary pacemaker to fire before taking over.
Comparison of Escape Rhythms
It is helpful to compare the junctional escape with other types of backup mechanisms that the heart may employ. The heart has a hierarchy of pacemaker cells, each with its own intrinsic rate.
| Pacemaker Site | Intrinsic Rate (BPM) | Clinical Significance |
|---|---|---|
| SA Node | 60–100 | Primary pacemaker |
| AV Junction | 40–60 | Junctional Escape |
| Ventricles | 20–40 | Ventricular Escape |
⚠️ Note: A junctional escape rhythm (multiple beats) is generally more stable and better tolerated by the patient than a ventricular escape rhythm, which is significantly slower and less reliable for maintaining adequate cardiac output.
Clinical Causes and Implications
Why does the heart resort to a Junctional Escape Beat? It is rarely the primary goal; rather, it is a response to an underlying pathology. Recognizing the cause is as important as identifying the rhythm itself. Common triggers include:
- Sinus Bradycardia: An excessively slow heart rate from the SA node.
- SA Node Exit Block: The impulse is generated but cannot exit the SA node to stimulate the rest of the heart.

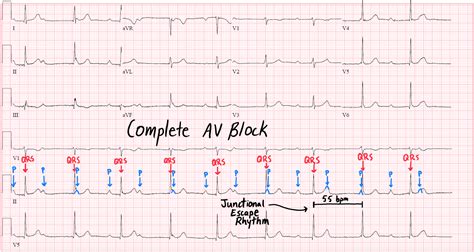

- Atrioventricular (AV) Block: Conditions like second-degree or third-degree heart block, where impulses from the top of the heart are blocked from reaching the bottom chambers.
- Medication Effects: Certain drugs, such as beta-blockers, calcium channel blockers, or digoxin, can suppress the SA node, forcing the AV junction to take over.
In many clinical scenarios, a Junctional Escape Beat is a sign that the body is attempting to maintain homeostasis. If the patient is asymptomatic, it may simply require monitoring. However, if the escape rhythm is sustained and the patient experiences dizziness, fainting (syncope), or hypotension, it indicates that the junctional rate is insufficient to meet the body’s metabolic demands.
Diagnostic Approach and Management
When a clinician observes a Junctional Escape Beat, the diagnostic focus is on uncovering the "why." A thorough patient history, including medication review, is the first step. Diagnostic tools such as a 12-lead ECG, Holter monitoring, or an echocardiogram may be used to assess the structural integrity of the heart and the severity of the conduction delay.
Management strategies are entirely dependent on the clinical status of the patient:
- Asymptomatic Patients: Often, no intervention is needed if the patient is stable and the escape rhythm is providing adequate blood flow. Regular follow-ups are generally recommended.
- Symptomatic Patients: If the patient is symptomatic, the focus shifts to correcting the underlying bradycardia. This might include adjusting medications that slow the heart rate or, in cases of persistent, severe heart block, the implantation of a permanent pacemaker.
💡 Note: Never attempt to treat a junctional rhythm with anti-arrhythmic medications without professional medical oversight, as these drugs may further suppress the electrical system and worsen the heart rate.
Summary of Key Insights
The Junctional Escape Beat serves as a vital safety net for the cardiovascular system. By acting as a secondary pacemaker, the AV junction prevents cardiac arrest in the face of SA node dysfunction or electrical conduction blocks. While it produces a distinct appearance on an ECG—typically characterized by narrow QRS complexes and absent or inverted P-waves—its clinical importance lies in its role as a compensatory mechanism. Identifying this rhythm requires a keen eye for subtle ECG changes and a comprehensive understanding of the heart’s electrical hierarchy. Ultimately, while a single escape beat may be an incidental finding, frequent or persistent junctional rhythms warrant a detailed clinical investigation to ensure that the patient’s underlying heart health is adequately supported and maintained through appropriate therapeutic interventions.
