The J wave ECG, often referred to as the Osborn wave or early repolarization, represents a distinct deflection at the junction between the end of the QRS complex and the beginning of the ST segment. While once considered a benign electrocardiographic finding, recent advancements in cardiology have shed light on the clinical significance of this wave, particularly its association with life-threatening ventricular arrhythmias. Understanding the nuances of how a J wave ECG appears and what it indicates is crucial for clinicians aiming to risk-stratify patients presenting with syncope, unexplained cardiac arrest, or a family history of sudden death.
Understanding the J Wave Morphology

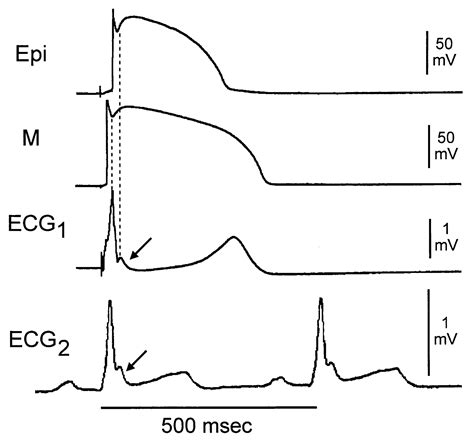

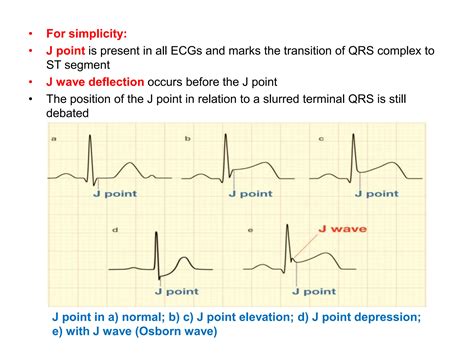

In a standard clinical setting, the J wave ECG is characterized by a positive deflection, or “hump,” that occurs at the J-point. This phenomenon is primarily driven by a disparity in the transmural distribution of the transient outward potassium current, known as Ito. This current is significantly more prominent in the epicardium compared to the endocardium, leading to a marked difference in the action potential morphology across the ventricular wall.

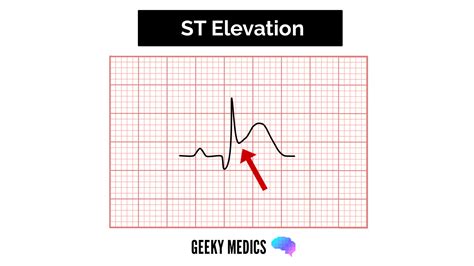

When this voltage gradient becomes exaggerated due to genetic mutations or environmental factors like hypothermia, the J-point elevates, creating the characteristic J wave pattern. In diagnostic terms, this is frequently measured as an elevation of at least 0.1 mV in two or more contiguous leads. It is important to distinguish the J wave ECG from ST-segment elevation seen in acute myocardial infarction or pericarditis, as the management protocols are entirely different.
Clinical Significance and Risk Stratification
Historically, the J wave ECG was dismissed as an innocent variation of normal repolarization, common in young, athletic individuals. However, the paradigm shifted following the recognition of Early Repolarization Syndrome (ERS) and Brugada Syndrome. These conditions are linked to the presence of prominent J waves that may serve as a substrate for re-entrant arrhythmias.

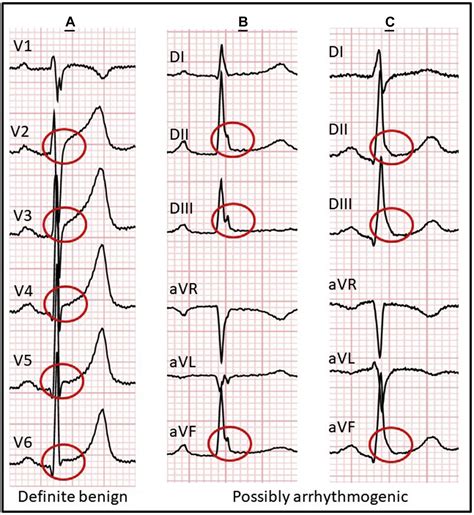

The risk of malignant arrhythmias is thought to be higher when the J wave is associated with specific features:
- Horizontal or Downsloping ST segment: A non-ascending ST segment following the J wave is considered higher risk.
- Global Distribution: Presence in both inferior and lateral leads suggests a more widespread electrical disturbance.
- Magnitude: J waves with an amplitude greater than 0.2 mV are often investigated more rigorously.
| Feature | Benign Pattern | High-Risk Pattern |
|---|---|---|
| ST-segment morphology | Ascending/Upsloping | Horizontal or Downsloping |
| Lead Distribution | Limited (often lateral) | Widespread (inferior + lateral) |
| J-point elevation | Usually < 0.1 mV | Usually > 0.2 mV |
⚠️ Note: Always correlate the J wave ECG findings with the patient's clinical history. An asymptomatic patient with a stable J wave ECG pattern typically does not require invasive intervention.
Differential Diagnosis in ECG Interpretation
Distinguishing the J wave ECG from other repolarization abnormalities is a fundamental skill in cardiac diagnostics. The most common differential diagnosis involves the “early repolarization” pattern seen in healthy individuals compared to those with actual pathology. The classic “fishhook” appearance in lead V4 is a hallmark often noted in clinical literature.
Other conditions that mimic or share features with the J wave ECG include:
- Brugada Syndrome: Typically presents with ST-elevation in V1-V3, often followed by a negative T-wave.

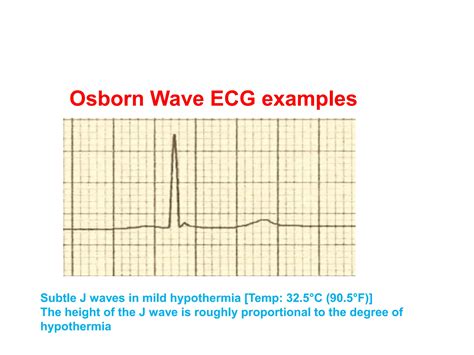

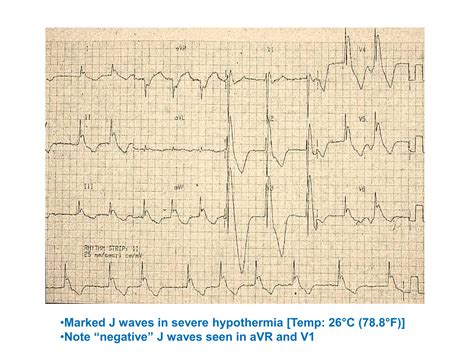

- Hypothermia: Osborn waves appear specifically due to cold-induced changes in ion channel kinetics.
- Acute Pericarditis: Characterized by diffuse ST elevation and PR segment depression, which differs from the isolated J-point changes.
Management and Monitoring Strategies
When a patient presents with a suspicious J wave ECG, the primary goal is to determine if the finding is associated with arrhythmic risk. For asymptomatic patients, a conservative approach is usually recommended, involving periodic follow-ups and patient education regarding symptom recognition, such as palpitations or syncope.
In symptomatic patients, or those with a strong family history of unexplained sudden cardiac death, further evaluation may include:
- Holter Monitoring: To detect subclinical ventricular arrhythmias.
- Exercise Stress Testing: Often, the J wave amplitude decreases during exercise; failure of this amplitude reduction may signal an increased risk of arrhythmic events.
- Electrophysiological Study (EPS): While debated, it may be used to assess the inducibility of ventricular arrhythmias in high-risk subsets.
ℹ️ Note: Pharmacological treatment with quinidine has shown promise in managing symptomatic ERS by counteracting the currents that generate the J wave, though this should only be managed by specialized cardiac electrophysiologists.
Key Considerations for Clinicians
As medical knowledge continues to evolve, the interpretation of the J wave ECG remains a dynamic field. Clinicians must balance the need for sensitivity in identifying high-risk patients with the potential for psychological and physical harm caused by over-diagnosing benign variants. The focus should always remain on the total clinical picture. If a patient presents with sudden cardiac arrest and a J wave ECG is the only finding, a comprehensive search for channelopathies, structural heart disease, and toxicological factors is mandatory.
Furthermore, the temporal stability of the J wave is a vital indicator. Serial ECGs can help distinguish a stable, benign pattern from one that is dynamic and potentially indicative of underlying electrical instability. Advanced signal-averaged ECGs or specialized mapping techniques in research settings continue to refine our ability to predict which specific patients are at risk for ventricular fibrillation.
In summary, the J wave ECG serves as a powerful diagnostic marker that demands careful and context-dependent interpretation. While frequently discovered as a benign incidental finding during routine screenings, its presence can sometimes herald the underlying electrical susceptibility to severe arrhythmias. By differentiating between high-risk morphological patterns and normal variants, clinicians can provide appropriate risk stratification and peace of mind to patients. As our diagnostic tools and understanding of cardiac channelopathies advance, the ability to accurately interpret these waves will remain a cornerstone of effective cardiovascular care and sudden cardiac death prevention. Maintaining vigilance regarding associated symptoms, family history, and longitudinal stability is essential for optimizing patient outcomes in the face of this complex electrocardiographic finding.
