The human skull is a marvel of biological engineering, consisting of intricate structures that protect vital organs while providing passage for critical neurological and vascular components. Among these anatomical landmarks, the inferior orbital fissure holds a position of significant importance. Located deep within the eye socket, or orbit, this elongated gap serves as a crucial conduit connecting the orbit to both the infratemporal and pterygopalatine fossae. Understanding its boundaries, anatomical relationships, and the structures that pass through it is essential for medical professionals, anatomists, and students of the health sciences alike.
Anatomical Location and Boundaries

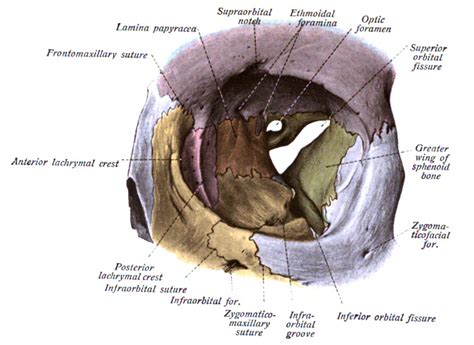

The inferior orbital fissure is best visualized as a narrow cleft located in the floor of the orbit. It separates the floor of the orbit from the lateral wall. Given its strategic position, it acts as a gateway between different regions of the facial skeleton. To truly appreciate its complexity, one must look at the bones that form its margins:
- The Maxilla: Specifically, the orbital surface of the maxilla forms the medial and anterior boundary.
- The Greater Wing of the Sphenoid Bone: This forms the posterior and lateral margins of the fissure.
- The Zygomatic Bone: Located anteriorly, this bone completes the lateral extent of the structure.
Because it is situated between these major bony components, the inferior orbital fissure is not just an empty space; it is a vital bridge that facilitates communication between the orbit and the deeper tissues of the face. Its orientation is slightly oblique, making it a challenging area to visualize in standard two-dimensional imaging without proper anatomical knowledge.
Structures Passing Through the Inferior Orbital Fissure

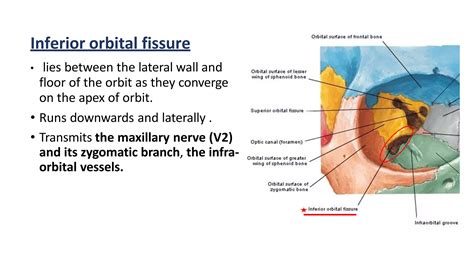

The functional significance of this fissure lies in the neurovascular bundles that traverse it. If this gap were closed, the sensory innervation and blood supply to several facial regions would be compromised. The primary structures passing through the inferior orbital fissure include:
- The Zygomatic Nerve: A branch of the maxillary division of the trigeminal nerve (V2). This nerve eventually divides into the zygomaticofacial and zygomaticotemporal nerves, which provide sensory innervation to the skin over the cheek and temple.
- Infraorbital Nerve: While this nerve primarily runs through the infraorbital canal, a portion of its pathway is associated with the region near the fissure.
- Infraorbital Vessels: These include the infraorbital artery and vein, which supply blood to the structures within the orbit and the surrounding facial tissues.
- Ascending Branches from the Pterygopalatine Ganglion: These branches carry parasympathetic fibers that are crucial for the regulation of lacrimal gland secretion.
- The Inferior Ophthalmic Vein: This vein passes through the fissure to communicate with the pterygoid venous plexus, providing an important route for venous drainage from the orbital contents.
⚠️ Note: Damage or compression to structures passing through the inferior orbital fissure can lead to sensory loss in the mid-face or complications with venous drainage from the orbit.
Clinical Significance
In clinical practice, the inferior orbital fissure becomes highly relevant during trauma and reconstructive surgery. Fractures of the facial skeleton, particularly those involving the "blow-out" type or zygomatic complex fractures, often involve this anatomical region. Because the fissure is a weak point in the bony structure of the orbit, it can be displaced during severe facial trauma.
Surgeons must have a precise understanding of the fissure to avoid iatrogenic injury. For example, during orbital decompression surgery—often performed for thyroid eye disease—the surgeon must navigate carefully around this fissure to avoid damaging the neurovascular bundles. Furthermore, understanding the proximity of the pterygopalatine fossa is vital for clinicians performing nerve blocks or managing deep facial infections that may spread through these pathways.
| Structure | Functional Role |
|---|---|
| Zygomatic Nerve | Sensory innervation to cheek/temple skin |
| Infraorbital Vessels | Blood supply to orbital and facial tissues |
| Inferior Ophthalmic Vein | Venous drainage to pterygoid plexus |
| Parasympathetic Fibers | Regulation of lacrimal gland secretion |
Imaging and Diagnostics

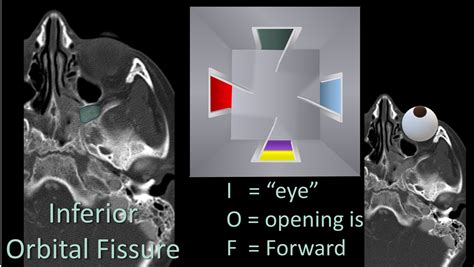

Modern diagnostic imaging, particularly high-resolution computed tomography (CT), has revolutionized how we view the inferior orbital fissure. Axial and coronal CT sections are the gold standard for identifying fractures or space-occupying lesions in this area. Radiologists look for the integrity of the bony margins mentioned earlier to determine if a fracture has extended through the fissure. Understanding the normal radiographic appearance is the first step in identifying pathology.
Magnetic Resonance Imaging (MRI) may also be utilized when soft tissue structures, such as nerves or branches of the pterygopalatine ganglion, are suspected to be involved in a disease process. Because the fissure is narrow, 3D reconstructions are often employed to help surgeons visualize the spatial relationship between the fissure and the surrounding bony landmarks.
ℹ️ Note: Always correlate imaging findings with the patient’s physical symptoms, such as localized numbness in the infraorbital region or signs of orbital congestion, to ensure an accurate diagnosis.
Surgical Considerations
For those performing surgical procedures in the maxillofacial region, the inferior orbital fissure acts as a critical landmark. In procedures like orbital floor reconstruction, the posterior margin of the fissure serves as a "no-go" zone, or at least a region requiring extreme caution. Placing a surgical mesh to repair a floor fracture requires careful anchoring to the surrounding bone while ensuring that no hardware encroaches upon the nerve bundles passing through the fissure.
Additionally, because this fissure allows communication with the pterygopalatine fossa, infections or tumors originating in the infratemporal region can sometimes spread into the orbit via this route. Recognizing this anatomical "highway" is essential for practitioners when differential diagnosing deep-seated facial pathology.
The study of the skull reveals how interconnected our facial anatomy truly is. The inferior orbital fissure is a prime example of a structure that, while small in relative size, plays a massive role in the physiological and clinical health of the head and neck. From facilitating sensory input to the skin of the face to providing a route for essential venous outflow, its function is multifaceted. Mastering the anatomy of this region not only aids in the clinical management of trauma and disease but also provides a deeper appreciation for the complex design of the human body. By keeping the relationships between the bony margins and the neurovascular contents in mind, medical professionals can navigate this delicate area with greater accuracy, ensuring better outcomes for patients facing complex facial injuries or pathologies.
