The human eye is a masterpiece of biological engineering, relying on a complex system of muscles to facilitate precise movement and clear vision. Among the six extraocular muscles responsible for controlling eye position, the Inferior Oblique Muscle stands out due to its unique anatomical origin and specific functional role. Unlike the other five muscles, which originate from the back of the orbit near the apex, this muscle begins at the anterior portion of the orbit. Understanding its structure, function, and potential clinical implications is essential for anyone interested in ocular anatomy, ophthalmology, or optometry.
Anatomy and Structure of the Inferior Oblique Muscle
The Inferior Oblique Muscle is a thin, narrow muscle located in the floor of the orbit. Its anatomical characteristics set it apart from the rectus muscles and the superior oblique muscle. The muscle originates from a small depression on the orbital surface of the maxilla, just lateral to the lacrimal fossa. From this point, it passes laterally and posteriorly beneath the inferior rectus muscle, eventually inserting into the sclera of the eye on the posterolateral surface, beneath the lateral rectus muscle.
This path is significant because it dictates how the muscle applies force to the eyeball. Because it is positioned behind the center of rotation of the eye and approaches the globe from below and from the front, its contraction produces a complex set of ocular movements. It is also the only extrinsic eye muscle that does not originate from the common tendinous ring (Annulus of Zinn) at the orbital apex.
Key Anatomical Features:
- Origin: Orbital surface of the maxilla.
- Insertion: Posterolateral sclera, underneath the lateral rectus.
- Innervation: Supplied by the inferior division of the oculomotor nerve (Cranial Nerve III).
- Blood Supply: Primarily from the infraorbital artery.
Functional Role in Eye Movement

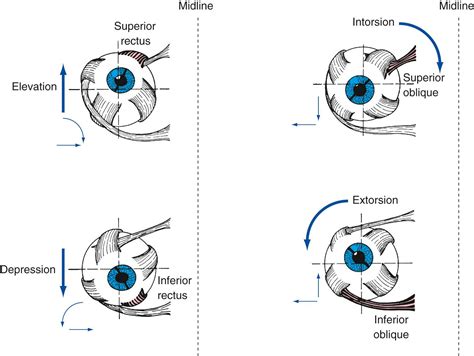

The primary function of the Inferior Oblique Muscle is to facilitate complex ocular movements. Because of its oblique angle of attachment, its action is not restricted to a single plane of motion. When the eye is in the primary position, the muscle acts as a tertiary mover for three distinct types of movement:
- Elevation: Moving the eye upward.
- Abduction: Moving the eye away from the nose.
- Extorsion (Excyclotorsion): Rotating the top of the eye outward.

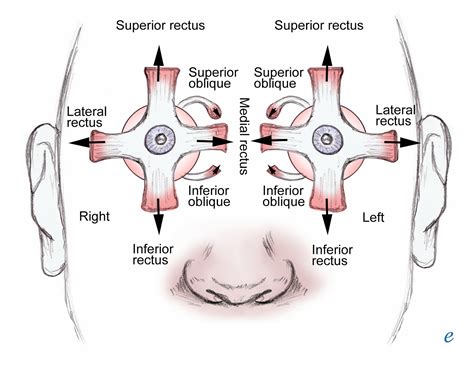

To better understand these movements, it is helpful to look at how the muscle works in tandem with other eye muscles. For instance, while the Superior Rectus is the primary elevator when the eye is abducted, the Inferior Oblique Muscle takes over as the primary elevator when the eye is adducted (turned toward the nose). This intricate synergy is what allows for smooth, coordinated binocular vision, ensuring that both eyes track objects seamlessly across the visual field.
| Action | Primary Plane |
|---|---|
| Elevation | Vertical |
| Abduction | Horizontal |
| Extorsion | Torsional |
💡 Note: The Inferior Oblique Muscle acts as the primary elevator when the eye is in an adducted position, a fact frequently used during clinical examinations to isolate muscle function.
Clinical Significance and Disorders
Because the Inferior Oblique Muscle plays a critical role in vertical and torsional eye movement, dysfunction here can lead to noticeable issues with binocular vision and ocular alignment. One of the most common conditions associated with this muscle is Inferior Oblique Overaction (IOOA).
IOOA is frequently observed in patients with childhood strabismus, particularly those with esotropia or exotropia. When this muscle is overactive, the eye will drift upward and inward when it is moved across the midline toward the nose. This can result in diplopia (double vision) or an abnormal head tilt as the patient attempts to compensate for the misalignment of their visual axes.
Common Clinical Conditions:
- Inferior Oblique Overaction: Manifests as an excessive upward movement of the eye in adduction.
- Inferior Oblique Underaction: Can be a sign of neurological issues or physical entrapment, such as in orbital floor fractures (blowout fractures).
- Brown Syndrome: While often associated with the superior oblique, secondary involvement of the inferior oblique can alter the vertical range of motion.
Evaluation and Diagnostic Testing
To assess the health and function of the Inferior Oblique Muscle, ophthalmologists use specialized physical examination techniques. The most common method is the Hirschberg test or the Cover-Uncover test to detect manifest strabismus. Additionally, clinicians utilize the Diagnostic Positions of Gaze (H-test) to observe eye movement in all directions.
During the H-test, the patient follows an object into the cardinal positions of gaze. The examiner specifically looks for signs of overaction or restriction when the eye is turned into adduction and elevation. If the Inferior Oblique Muscle is overactive, the eye will rise higher than expected during this specific movement.
💡 Note: Imaging techniques, such as MRI or CT scans of the orbit, are typically reserved for cases where physical trauma, such as an orbital floor fracture, is suspected of causing mechanical restriction of the muscle.
Treatment Approaches
When conservative measures, such as patching or special glasses (prisms), fail to correct the alignment issues caused by muscle imbalance, surgical intervention may be required. Inferior Oblique weakening procedures are standard practice for treating clinically significant overaction.
Common surgical techniques include:
- Myectomy: Removing a small portion of the muscle.

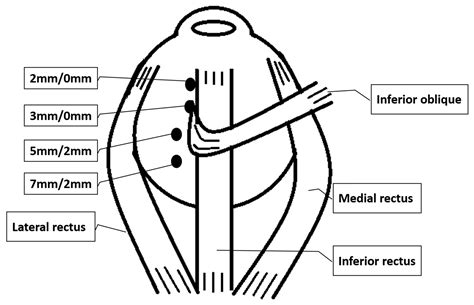

- Recession: Moving the insertion of the muscle posteriorly and laterally to decrease its effectiveness.
- Disinsertion: Detaching the muscle entirely, which is sometimes performed in specific cases to address severe overaction.
Surgical correction is generally very effective, allowing for improved ocular alignment and the restoration of binocular vision. Recovery time varies depending on the specific technique used, but most patients experience rapid improvement in both cosmetic alignment and visual comfort.
In summary, the Inferior Oblique Muscle is an indispensable component of the ocular motor system. Its unique anatomical position and functional role allow for the complex rotational and vertical movements necessary for maintaining binocular vision. From its origin on the maxilla to its insertion on the sclera, every aspect of its structure is optimized for precise control. While clinical conditions like overaction can disrupt this balance, modern diagnostic and surgical techniques provide reliable pathways to restore function. By studying the mechanics and clinical relevance of this muscle, we gain a deeper appreciation for the intricate design of the human eye and the specialized care required to maintain healthy vision throughout life.
