Relays serve as the unsung heroes of electrical systems, acting as electromagnetic switches that allow a low-power signal to control a high-power circuit. Whether you are working on automotive electronics, HVAC systems, or industrial machinery, encountering a faulty relay is a common troubleshooting hurdle. Understanding how to test relay components effectively can save you time, money, and unnecessary parts replacement. A malfunctioning relay can lead to complete system failure, intermittent operation, or blown fuses, making it a critical component to verify before assuming deeper electrical faults.
Understanding the Basics of a Relay
To master how to test relay units, you must first understand how they function internally. Most standard automotive and industrial relays consist of a coil and a set of contacts. When power is applied to the coil, it creates a magnetic field that pulls the contacts together, closing the circuit. When the power is removed, a spring pulls the contacts apart, opening the circuit.
Common relay pin configurations include:
- Pin 85 & 86: These are the coil terminals. Applying voltage here activates the electromagnet.
- Pin 30: This is the common or "power in" terminal.
- Pin 87: This is the "normally open" (NO) terminal. It completes the circuit to the device when the relay is triggered.
- Pin 87a: This is the "normally closed" (NC) terminal. It is connected to pin 30 when the relay is at rest.
Safety Precautions Before You Begin
Before you start learning how to test relay devices, safety must be your top priority. Electrical work carries inherent risks. Always ensure the power source is disconnected if possible. If you are testing a live circuit, use insulated tools and avoid touching bare wires. Wear appropriate personal protective equipment (PPE) such as safety glasses, especially if there is a risk of sparks or short circuits.
⚠️ Note: Always disconnect the vehicle battery or the main power supply before removing relays to prevent accidental short circuits or electrical shocks.
Tools Required for Relay Testing
You don't need expensive diagnostic equipment to perform a professional-grade inspection. Here are the essential tools you should have on hand:
- Digital Multimeter: Essential for checking continuity, resistance, and voltage.
- Jumper Wires: Used to bypass the relay or provide power to the coil manually.
- 12V Power Source: A battery or bench power supply to actuate the relay.
- Needle-nose Pliers: To safely remove the relay from the fuse box.

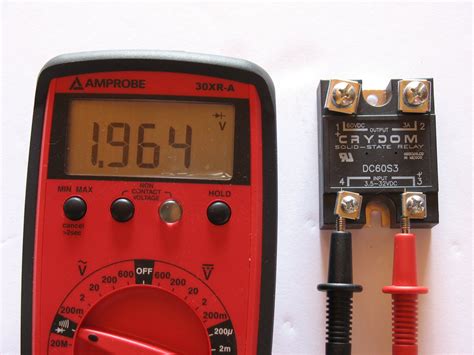

Step-by-Step Guide: How to Test Relay with a Multimeter
The most accurate way to verify a relay's health is by checking the resistance of the coil and the continuity of the switches. Follow these steps to perform a thorough check:
1. Testing the Coil Resistance
Set your digital multimeter to the Ohms (Ω) setting. Place the probes on the two coil terminals (usually pins 85 and 86). A functioning relay will show a specific resistance value—typically between 50 and 150 ohms. If the multimeter displays “OL” (Open Loop) or infinite resistance, the internal coil wire is broken, and the relay must be discarded.
2. Testing the Continuity of Contacts
Keep your multimeter in the Ohms or Continuity (beep) mode. Check pins 30 and 87a (the normally closed side). You should hear a beep or see near-zero resistance. Then, check pins 30 and 87 (the normally open side). This should show infinite resistance or no beep.
3. Actuating the Relay
This is the definitive “how to test relay” step. Use your jumper wires to connect pin 85 to ground and pin 86 to a 12V positive source. You should hear a distinct “click” sound. While the relay is powered (actuated), use your multimeter to check continuity between pins 30 and 87. You should now see near-zero resistance (a beep).
| Relay State | Pins 30 to 87 | Pins 30 to 87a |
|---|---|---|
| De-energized (No power) | Open (No continuity) | Closed (Continuity) |
| Energized (Powered) | Closed (Continuity) | Open (No continuity) |
Common Symptoms of a Failing Relay
Recognizing the signs of a failing relay can help you diagnose issues before the component completely fails. Look out for the following indicators:
- Intermittent operation: The device turns on and off sporadically.
- Clicking sound: Hearing a clicking noise but the device does not activate.
- No response: The component, such as a fuel pump or horn, remains completely silent.
- Burnt smell: Visible charring or a melted plastic casing on the relay suggests internal overheating.
⚠️ Note: If you find that a relay is physically melted, inspect the socket or relay base as well, as loose connections can cause high resistance, heat, and terminal damage.
What to Do If the Relay Is Defective
If your testing confirms the relay is faulty, do not attempt to repair it. Relays are sealed units; trying to pry them open usually results in permanent damage. Replacement is the only reliable fix. When purchasing a new relay, ensure the part number and amperage rating match the original. Installing a relay with a lower amperage rating can lead to overheating and potential fire hazards, while a higher rating may not protect your circuit appropriately.
Final Thoughts on Troubleshooting
Mastering the skill of how to test relay components empowers you to handle electrical troubleshooting with confidence. By systematically checking the coil resistance, verifying contact continuity, and manually actuating the switch, you can pinpoint the source of electrical gremlins with ease. Whether you are dealing with a car that won’t start or a fan that won’t turn on, remember to always approach the problem with patience and the right tools. Proper diagnosis not only saves you from the frustration of swapping out good parts but also deepens your understanding of the complex electrical systems that power our daily lives. With these steps, you are well-equipped to keep your electrical circuits running smoothly and safely.
