For enthusiasts of high-performance driving, the distinct, high-pitched whine emitted by a racing vehicle is often music to the ears. This iconic sound is the hallmark of a Gearbox Straight Cut setup, a design choice that prioritizes raw power transfer and durability over the hushed comfort of a daily commuter car. Unlike the helical gears found in standard passenger vehicles, straight-cut gears feature teeth that are cut parallel to the axis of the gear shaft. This fundamental engineering difference changes everything about how a vehicle accelerates, shifts, and handles the immense torque generated by tuned engines. Whether you are building a dedicated track machine or a rally-spec beast, understanding the mechanics of these transmissions is vital for optimizing your drivetrain efficiency.
The Engineering Behind the Straight-Cut Gear

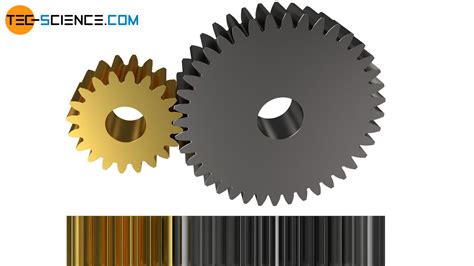

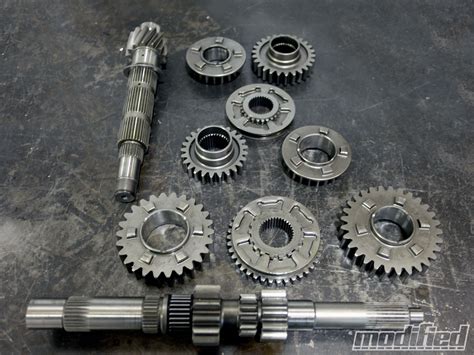

At the heart of the Gearbox Straight Cut design is the geometric simplicity of the gear teeth. In a standard helical gearbox, the gear teeth are cut at an angle to the axis of the shaft. This allows the teeth to engage gradually, which significantly reduces noise and vibration but creates a side-loading force that requires more complex bearing support. In contrast, straight-cut gears engage their entire tooth face simultaneously.
This design offers several technical advantages for performance applications:
- Increased Load Capacity: Because the gears do not generate axial (side) loads, the force is focused purely on rotational power. This allows the gear teeth to be wider and stronger, capable of handling higher horsepower without shearing.
- Reduced Friction: The absence of thrust loading means there is less energy wasted on friction within the transmission housing, leading to a more direct transfer of power to the wheels.
- Mechanical Simplicity: Straight-cut designs are inherently more robust under extreme heat and rapid shifting conditions, making them the preferred choice for sequential transmissions and dog-box setups.
Comparing Helical vs. Straight Cut Gears
To understand why a builder might choose one over the other, it is essential to look at the practical trade-offs. The following table provides a clear comparison of how these two transmission technologies stack up in various driving conditions.
| Feature | Helical Gears | Gearbox Straight Cut |
|---|---|---|
| Noise Level | Quiet/Smooth | High-pitched Whine |
| Power Efficiency | Moderate | Very High |
| Strength | Limited by tooth contact | Very High |
| Cost | Lower (Mass Produced) | Higher (Precision Machined) |
| Application | Daily Drivers | Motorsport/Racing |
Why Choose a Straight-Cut Gearbox for Racing?
The primary reason for adopting a Gearbox Straight Cut in a racing environment is pure, unadulterated efficiency. In motorsport, every fractional loss of power counts. Helical gears, while comfortable, absorb a small percentage of engine energy due to the sliding contact between gear faces. Straight-cut gears minimize this parasitic loss, ensuring that more torque reaches the tires.
Furthermore, because the gears are usually paired with a "dog-clutch" engagement mechanism rather than traditional synchronizers, gear changes can be performed almost instantaneously. This is critical during high-speed track scenarios where the driver needs to maintain engine RPMs in the power band without waiting for the transmission synchros to match the gear speeds.
⚠️ Note: Because straight-cut transmissions lack synchronizers, they require a specific driving style—typically "rev-matching" or "flat-shifting"—which can cause premature wear on the dogs if the driver is not precise with their technique.
Installation and Maintenance Considerations
Installing a Gearbox Straight Cut is not a "bolt-on and forget" upgrade. It requires careful setup by a professional technician. Since these transmissions are built with tighter tolerances and often run hotter than stock units, the choice of transmission fluid is paramount. You must use a high-quality, synthetic gear oil specifically rated for dog-engagement transmissions to prevent metal-on-metal degradation.
Maintenance steps for a racing gearbox include:
- Frequent Fluid Changes: Racing gearboxes lack the filtration systems of road cars. Metallic particles from the gear faces must be flushed out regularly to prevent internal damage.
- Dog Wear Inspection: The "dogs" (the teeth that engage the gears) will round off over time due to high-impact shifting. Periodic inspection ensures you don't lose gears mid-race.
- Shifting Geometry: Ensure your gear linkage is perfectly aligned. A sloppy shift lever can cause incomplete gear engagement, which will destroy the dogs in a single session.
⚠️ Note: Always check for debris on the transmission drain plug magnet after every track event. A significant increase in metal shavings is a clear sign that a full internal rebuild may be required sooner than scheduled.
Living with the Noise
The most commonly cited "downside" to the Gearbox Straight Cut is the noise. The signature scream is caused by the way the teeth hit each other at high velocity. While this sound is intimidating and exhilarating on the track, it can be deafening inside the cockpit during long endurance races. Most professional teams address this by using high-quality sound-dampening materials around the transmission tunnel and ensuring the driver uses proper motorsport-grade ear protection. For the enthusiast, this auditory feedback is often seen as a performance metric; if the car isn't whining, the gears aren't under load.
Final Thoughts
Integrating a straight-cut gearbox into your build is an investment in performance, durability, and responsiveness. While the noise and the requirement for precise, aggressive shifting may deter the casual driver, those seeking to push their vehicle to the limit will find the benefits of reduced friction and superior torque handling impossible to ignore. By understanding the mechanical principles, adhering to a strict maintenance schedule, and respecting the operational requirements of the system, you can unlock a new level of driving engagement. Choosing this transmission style is a commitment to the art of racing, where every component is optimized for speed, precision, and the relentless pursuit of the checkered flag.
