Gear Types

Mechanical engineering is built upon the foundational principles of motion and power transmission. At the heart of nearly every machine, from the humble mechanical watch to complex industrial turbines, lies the gear. Understanding different gear types is essential for anyone interested in mechanics, robotics, or engineering design. Gears are defined as toothed wheels that transmit torque and rotational motion from one shaft to another, often changing the speed, magnitude, or direction of that motion. By choosing the right gear for a specific application, engineers can optimize performance, reduce friction, and extend the lifespan of mechanical systems.

Table of Contents

Understanding the Fundamentals of Gear Systems

Before diving into specific designs, it is important to grasp why various gear types exist. Gears are essentially mechanical levers that rotate. When two gears of different sizes mesh, they create a mechanical advantage. A smaller gear driving a larger one increases torque while reducing speed, whereas a larger gear driving a smaller one increases speed while reducing torque. This versatility makes them indispensable in modern technology.

The efficiency of a gear system depends on several factors, including material selection, lubrication, and the precision of the gear teeth profile. Most modern gears are cut using involute profiles, which ensure smooth engagement and constant velocity ratios even if there are slight variations in the distance between shafts.

Categorizing Common Gear Types

Gears are primarily classified based on the orientation of their shafts and the shape of their teeth. Here is a breakdown of the most common configurations encountered in industry today:

Spur Gears: The most common form of gear, characterized by straight teeth cut parallel to the axis of rotation. They are highly efficient but can be noisy at high speeds.

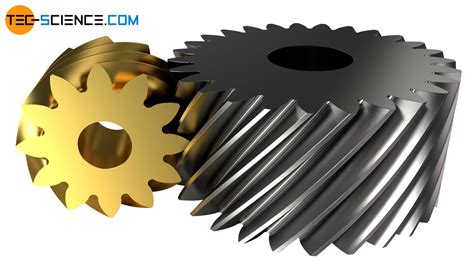

Helical Gears: These feature teeth cut at an angle to the axis. This design allows more teeth to be in contact simultaneously, resulting in quieter and smoother operation than spur gears.
Bevel Gears: Designed for transmitting motion between intersecting shafts (usually at 90 degrees). Their teeth are cut on a conical surface.
Worm Gears: Consist of a screw-like "worm" meshing with a "worm wheel." They are ideal for high gear reduction ratios in a compact space and are often self-locking.
Planetary Gears: Also known as epicyclic gearing, these consist of a central sun gear, several planet gears, and an outer ring gear. They are widely used in automatic transmissions.

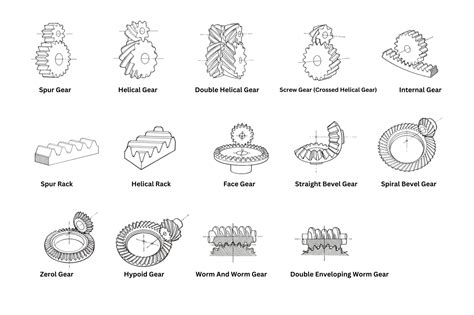

Mechanical gears

Comparison Table of Gear Characteristics

Choosing between different gear types requires analyzing the specific requirements of your project, such as space limitations, load requirements, and speed. The following table provides a quick reference guide to help you compare the primary mechanical characteristics of common gears.

Gear Type	Shaft Alignment	Efficiency	Primary Application
Spur	Parallel	High	General machinery
Helical	Parallel/Crossed	High	Automotive transmissions
Bevel	Intersecting	Medium/High	Differentials
Worm	Non-intersecting	Low	Lifts and conveyors

Applications and Material Considerations

In high-load environments, such as heavy manufacturing, hardened steel is the standard material for gear production. However, in smaller consumer electronics or lightweight robotics, plastic or nylon gears are frequently utilized. These materials are preferred for their quiet operation, lower cost, and ability to run without extensive lubrication. Regardless of the material, the gear types chosen must match the environmental conditions, including temperature, exposure to moisture, and vibration levels.

Precision is also a major factor. As technology advances, the demand for high-tolerance gear sets grows. High-speed CNC machining and gear grinding have made it possible to produce gears that mesh with incredible accuracy, minimizing energy loss and heat generation. This evolution in manufacturing has allowed engineers to push the boundaries of mechanical efficiency.

Maintenance and Longevity

Even the most robust gear types will eventually succumb to wear if not properly maintained. Regular lubrication is the single most important factor in extending the life of a gear system. Lubricants do more than just reduce friction; they also act as a coolant, dissipating heat generated by the contact pressure between teeth. Furthermore, routine inspections for pitting, scoring, or bending of teeth are necessary to prevent downtime in critical systems. Implementing a predictive maintenance schedule using vibration analysis can identify issues before a gear fails completely, saving both time and money.

Selecting the right components is the foundation of any successful mechanical design. By evaluating the specific requirements of your system—whether you prioritize high efficiency, quiet operation, or significant torque reduction—you can select from the wide array of gear designs available. From the straightforward layout of a spur gear train to the complex efficiency of a planetary system, each choice impacts the overall performance and reliability of your machinery. Whether you are a hobbyist working on a simple motorized project or a professional engineer designing industrial equipment, the principles of gear selection remain constant. By understanding how these components interact and function, you ensure that your mechanical systems perform reliably for years to come.
