Understanding the fundamental principles of electricity is essential for anyone venturing into electronics, engineering, or even basic home repairs. At the heart of these principles lies a core concept: electric current. To quantify how electricity flows through a circuit, engineers and hobbyists rely on a specific formula for current. By mastering this relationship, you gain the ability to predict circuit behavior, ensure the safety of electronic components, and troubleshoot common electrical issues effectively. This guide will walk you through the definition of current, the mathematical relationships that govern it, and how to apply them in practical scenarios.
Defining Electric Current
Electric current is the rate at which electric charge passes a specific point in a circuit. Imagine water flowing through a pipe; current is equivalent to the volume of water moving through the cross-section of that pipe over a set amount of time. In electrical terms, the charge is carried by electrons moving through a conductor. The standard unit for measuring electric current is the Ampere (commonly referred to as "Amps"), symbolized by the letter I.
To measure current accurately, it is important to understand the variables involved:
- I (Current): Measured in Amperes (A).
- Q (Charge): Measured in Coulombs (C).
- t (Time): Measured in seconds (s).
The basic formula for current, when defined by charge and time, is expressed as: I = Q / t. This equation tells us that one Ampere is equal to one Coulomb of charge flowing past a point in one second.
The Relationship Between Current, Voltage, and Resistance
In most practical applications, we rarely calculate current based on charge and time. Instead, we look at the interaction between voltage (the pressure pushing the electrons) and resistance (the opposition to that flow). This relationship is defined by Ohm’s Law, which is perhaps the most widely used formula for current in the field of electrical engineering.
Ohm’s Law states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them. The formula is expressed as:

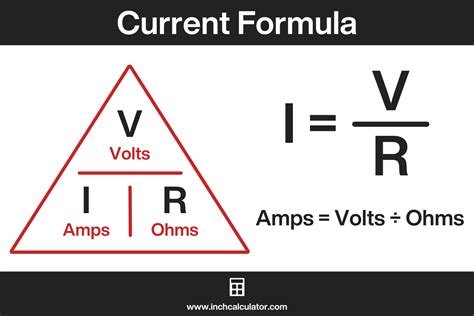

I = V / R
Where:
- I = Current (Amperes)
- V = Voltage (Volts)
- R = Resistance (Ohms, denoted by Ω)
This simple division reveals a critical design principle: if you want to increase the current in a circuit, you must either increase the voltage or decrease the resistance. Conversely, to protect sensitive components from drawing too much power, engineers often increase resistance to limit the current flow.
⚠️ Note: Always ensure your units are in the standard SI format (Volts, Amps, Ohms) before performing calculations to avoid incorrect results.
Practical Application and Comparison
To better understand how these formulas apply to different circuit configurations, consider the following table. It illustrates how changing values affect the final current output based on the formula for current using Ohm's Law.
| Voltage (V) | Resistance (Ω) | Current (A) |
|---|---|---|
| 12V | 6Ω | 2A |
| 12V | 3Ω | 4A |
| 24V | 6Ω | 4A |
| 5V | 10Ω | 0.5A |
Power, Voltage, and Current
Sometimes, you do not know the resistance of a component, but you do know the power rating. This is common when dealing with light bulbs, motors, or heaters. In these cases, we use the power formula for current. Power (measured in Watts) is the product of voltage and current.
The formula for Power is P = V × I. To rearrange this to solve for current, we get:
I = P / V
This is exceptionally useful when choosing fuses or circuit breakers. For example, if you have a 1000-Watt heater running on a 120-Volt line, you can quickly calculate the current draw: 1000 / 120 = 8.33 Amps. Knowing this helps you determine if the appliance will trip a circuit breaker rated for 10 or 15 Amps.
Step-by-Step Calculation Guide
If you find yourself needing to solve for current in a project, follow these steps to ensure accuracy:
- Identify your knowns: Are you looking at a circuit with a known voltage and resistance, or a known power consumption?
- Select the appropriate formula: Use I = V / R for basic resistive circuits or I = P / V for power-rated appliances.
- Convert units if necessary: Ensure values are in Volts, Ohms, or Watts. If you have millivolts or kilo-ohms, convert them to base units first.
- Calculate: Perform the division.
- Verify safety: Compare your result against the current-carrying capacity (ampacity) of your wires or components to prevent overheating.
💡 Note: In real-world circuits, resistance can change as components heat up. Always account for temperature coefficients in high-precision engineering tasks.
Advanced Considerations: AC vs. DC
The formula for current discussed above applies perfectly to Direct Current (DC) circuits. However, when working with Alternating Current (AC), the calculation becomes slightly more complex. In AC circuits, voltage and current oscillate over time, meaning the "Instantaneous Current" changes constantly.
For AC circuits, we typically use the Root Mean Square (RMS) value for calculations. The RMS value represents the effective current that would deliver the same amount of power as an equivalent DC current. Most multimeters are designed to measure the RMS value of current automatically, which simplifies your calculations significantly, allowing you to use the standard Ohm’s Law formulas without adjusting for the sine wave nature of the power source.
The Importance of Safety
When measuring current, always remember that an ammeter (or the current setting on a multimeter) must be placed in series with the load. Never place an ammeter in parallel with a voltage source, as this creates a low-resistance path that can cause a short circuit, damage the meter, and pose a severe safety hazard. By understanding the formula for current, you are better equipped to understand the physics of your circuit, but practical safety habits are equally vital to protecting your equipment and yourself.
Mastering the formula for current is the gateway to proficiency in electronics. Whether you are using Ohm’s Law to determine the value of a current-limiting resistor or using the power formula to check the load on a circuit, these mathematical tools allow you to move from guesswork to precision. By systematically identifying your variables and choosing the correct equation, you can troubleshoot complex circuits, design your own electronic projects, and gain a deeper appreciation for the invisible flow of electrons that powers our modern world. As you continue your study of electrical principles, keep these fundamental relationships at the forefront, as they will serve as the bedrock for all your future technical endeavors.
