Few things in the DIY world are as frustrating as a stripped screw head or a snapped bolt buried deep within a mechanical assembly. Whether you are working on a classic car restoration, fixing a household appliance, or handling delicate electronics, a broken fastener can bring your entire project to a grinding halt. This is where the Ez Out Tool becomes an absolute lifesaver. Often referred to by various names, this specialized hardware is designed to extract damaged screws and bolts that can no longer be turned using traditional screwdrivers or wrenches. By understanding how to properly use this device, you can save hours of labor and avoid costly repairs that might otherwise require a professional machine shop.
Understanding the Mechanics of an Ez Out Tool

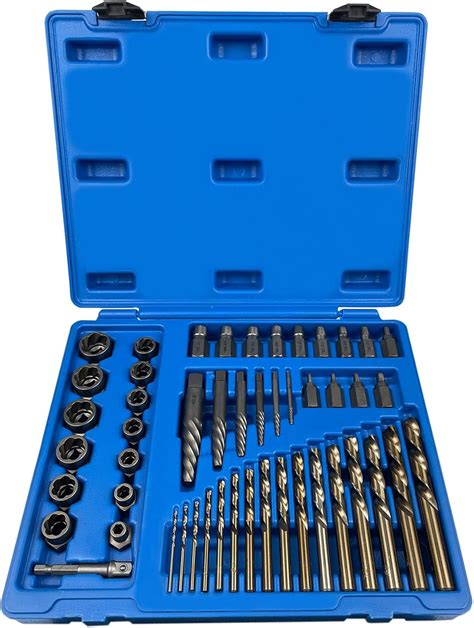

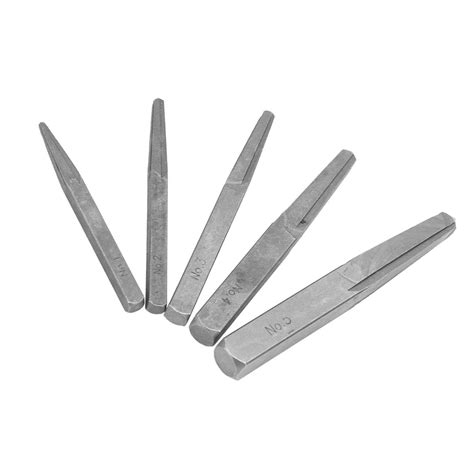

The Ez Out Tool, technically known as a screw extractor, operates on a simple but ingenious mechanical principle: reverse threading. Most standard bolts and screws are tightened by turning them clockwise. When the head is damaged, applying more force with a standard tool usually just rounds out the metal further. An extractor, however, is designed with a sharp, hardened steel thread that cuts into the interior of the damaged fastener in a counter-clockwise direction.
As you turn the tool to the left, it bites deeper into the metal. Once it seats firmly, the continued turning pressure forces the seized or broken bolt to unscrew from its housing. These tools are typically made from hardened alloy steel or tungsten carbide, allowing them to exert immense torque without snapping off inside the damaged piece.
Choosing the Right Size for Your Project
One of the most common mistakes beginners make is selecting an extractor that is either too small or too large for the job. Using the wrong size can lead to the tool slipping or, in the worst-case scenario, snapping the extractor itself inside the bolt, which creates a much more difficult problem to solve.
| Bolt/Screw Diameter | Recommended Extractor Size | Drill Bit Size |
|---|---|---|
| 1/4" to 5/16" | #1 | 1/8" |
| 5/16" to 7/16" | #2 | 3/16" |
| 7/16" to 9/16" | #3 | 1/4" |
| 9/16" to 3/4" | #4 | 5/16" |
⚠️ Note: Always verify the recommended drill bit size printed on the packaging of your specific Ez Out Tool set before drilling, as variations exist between manufacturers.
Step-by-Step Guide to Extracting a Stripped Bolt
To successfully remove a broken fastener, you need a steady hand and the right sequence of operations. Follow these steps to ensure the best results:
- Clean the Surface: Use a wire brush or compressed air to remove debris from the broken bolt head or the stump. A clean surface ensures your drill bit doesn't "walk" or slip.
- Center Punching: Using a center punch and a hammer, make a small indentation exactly in the center of the broken bolt. This prevents the drill bit from sliding off-center.
- Drilling the Pilot Hole: Use a high-quality cobalt or carbide drill bit to bore a hole into the center of the bolt. Ensure you use plenty of cutting oil to keep the bit cool.
- Insert the Ez Out Tool: Place the extractor into the newly drilled hole and tap it lightly with a hammer to ensure the threads catch the side walls.
- Extraction: Attach a tap handle or a wrench to the top of the extractor. Turn slowly and steadily in a counter-clockwise direction. The bolt should begin to back out of the hole.
💡 Note: Use slow drill speeds. High RPMs generate excessive heat, which can cause the drill bit to become dull or brittle, making it more likely to snap inside the metal.
Preventing Common Failures
Even with the best tools, problems can arise if you rush the process. The biggest risk when using an Ez Out Tool is snapping the hardened steel extractor. Because these tools are brittle, they do not handle side-to-side force very well. If you feel the tool reaching its torque limit, stop immediately. Apply a penetrating oil and let it sit for several minutes before attempting to turn again. The chemicals in the oil will help break down the corrosion between the bolt threads and the base material, making the extraction process significantly smoother.
Additionally, always ensure your drill is set to the correct rotation. If you accidentally drill in the clockwise direction, you might further tighten the bolt, making it impossible to remove. Double-check your settings before pulling the trigger on your power drill.
Best Practices for Maintenance
To keep your extraction set in peak condition, store the tools in an organized case to prevent the hardened edges from banging against each other. Since they are made of carbon steel, they are susceptible to rust in humid environments. A light coating of machine oil on the threads of each tool before storing them will go a long way in preventing oxidation. Furthermore, if you notice the cutting edge of a specific size has become dull, it is best to replace that individual piece rather than attempting to sharpen it, as losing the precise geometry will result in poor performance on your next job.
Mastering the use of this hardware is a rite of passage for any serious hobbyist or professional mechanic. By utilizing the Ez Out Tool as a part of your standard repair workflow, you regain control over your projects even when things don’t go as planned. Remember to prioritize preparation, use the right amount of lubrication, and maintain steady, controlled pressure during the extraction process. While encountering a sheared bolt is never a pleasant experience, having the right tool and the knowledge of how to deploy it correctly turns a potential project-killing disaster into a quick, manageable fix that keeps your work moving forward.
