For automotive enthusiasts, professional mechanics, and engine builders, the quest for peak performance often requires testing a powerplant outside of the vehicle chassis. This is where an Engine Run Stand becomes an indispensable piece of workshop equipment. Whether you are performing a break-in procedure, diagnosing a persistent misfire, or fine-tuning a custom fuel injection system, having your engine mounted on a secure, accessible platform changes everything. By isolating the engine from the constraints of the engine bay, you gain unparalleled access to every bolt, sensor, and accessory, allowing for safer and more efficient testing environments.
Understanding the Utility of an Engine Run Stand

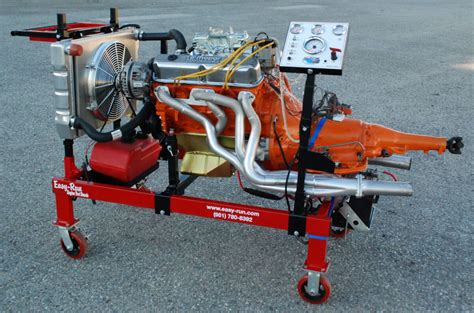

An Engine Run Stand is essentially a heavy-duty, freestanding framework designed to securely hold an engine while it is fully operational. Unlike a traditional engine stand used for assembly—which typically rotates and secures the block from the rear—a run stand supports the engine in its natural, upright position. It includes provisions for a fuel system, a cooling system (radiator), electrical components, and gauges to monitor critical vitals like oil pressure and coolant temperature.
The primary advantage of using a dedicated stand is the ability to perform a "hot run" before the engine is installed in the vehicle. This process allows you to identify leaks, verify timing, and perform necessary adjustments without the physical stress of working in a cramped engine compartment. For performance builders, it is the ultimate tool for quality assurance.
Key Components to Consider
When selecting or fabricating an Engine Run Stand, there are several structural and functional requirements that must be met to ensure safety and longevity. Because internal combustion engines generate significant vibration and torque, the stability of the stand is paramount.
- Structural Integrity: The frame should be constructed from thick-walled steel tubing. It must be capable of supporting the dead weight of the engine along with the kinetic forces generated during high-RPM testing.
- Cooling System Integration: A reliable stand includes an integrated radiator mount and hoses, ensuring the engine can maintain stable operating temperatures during prolonged testing sessions.
- Electrical Control Panel: A centralized dashboard is essential. It should feature an ignition switch, battery connections, a starter solenoid, and gauges for oil pressure, water temperature, and voltage.
- Mobility: High-quality, lockable heavy-duty casters allow you to move the stand around the shop while keeping it firmly anchored during operation.
Comparative Overview of Engine Testing Methods
| Feature | Chassis Testing | Engine Run Stand |
|---|---|---|
| Accessibility | Limited/Difficult | Excellent/360-degree |
| Safety | Moderate | High (if secured correctly) |
| Setup Time | High | Low (Modular) |
| Leak Detection | Hard to spot | Instant and easy |
Steps for Safe Operation
Once you have your Engine Run Stand set up, safety and preparation are the keys to success. Improper mounting or fuel system errors can lead to dangerous situations. Follow these steps to ensure a safe test run:
- Bolt Security: Ensure the engine is bolted to the stand using all required engine mount points. Vibration can cause loose bolts to fail under stress.
- Fluid Check: Before starting, verify that all oil and coolant levels are topped off. Inspect every fitting for potential leaks.
- Electrical Grounding: Ensure a solid ground connection between the engine block and the battery. Poor grounding is a common cause of mysterious electrical failure during testing.
- Fire Safety: Always keep a fire extinguisher rated for chemical and fuel fires within immediate reach of the stand.
- Exhaust Management: Ensure that your exhaust headers are either connected to mufflers or pointed away from the operator to prevent carbon monoxide buildup and hearing damage.
⚠️ Note: Always allow the engine to warm up gradually at idle before attempting to test higher RPM ranges. This allows internal components to expand at an even rate and ensures oil pressure is consistent throughout the entire lubrication system.
Optimizing Performance Tuning
Using an Engine Run Stand is particularly beneficial when tuning aftermarket EFI systems or carburetors. Without the distraction of the vehicle's electrical gremlins or transmission issues, you can focus entirely on the engine’s performance metrics. You can hook up a laptop to your engine management system and observe real-time data logs, adjusting ignition timing and air-fuel ratios with precision. This proactive approach ensures that when you finally drop the engine into the vehicle, you are confident that it will perform reliably and efficiently on the road or track.
Additionally, for shops that offer engine building as a service, providing a video of the engine running on a test stand serves as a professional validation of your work. It provides peace of mind to the customer, demonstrating that the engine has been thoroughly tested, broken in, and leak-checked before it ever reaches their hands. The investment in a quality stand quickly pays for itself in time saved and the prevention of post-installation troubleshooting.
When you take the time to utilize an engine run stand, you are essentially adopting a professional-grade workflow that separates hobbyist work from elite craftsmanship. By prioritizing safety, organization, and testing, you ensure that every engine build meets its full potential. The run stand acts as the final gatekeeper, filtering out potential failures before they result in costly damage or wasted effort. With the right setup, you can turn a complex build into a streamlined process, making your shop environment more productive and your mechanical results far more reliable. Ultimately, this practice enhances the longevity of your engine and guarantees a smoother transition from the workshop to the road, ensuring that your time and money are spent on achieving peak performance rather than dealing with avoidable mechanical headaches.
