Accurate Ekg placement is the cornerstone of high-quality diagnostic cardiology. Whether you are a healthcare professional performing a routine checkup or a student mastering clinical skills, understanding where to place electrodes on a patient's body is critical for obtaining a clean, reliable, and interpretable electrocardiogram tracing. Misplacement of even a single lead can lead to diagnostic errors, potentially resulting in false positives for ischemia or masked arrhythmias. This guide provides a comprehensive walkthrough of the standard 12-lead placement protocol to ensure clinical precision and patient safety.

Table of Contents

The Importance of Precision in Ekg Placement

An electrocardiogram (ECG/EKG) measures the electrical activity of the heart over a period of time. Because the heart’s electrical vectors are captured from specific angles, even minor deviations in electrode positioning can alter the waveform morphology. For instance, moving a chest lead just one intercostal space too high or too low can significantly distort the QRS complex or T-wave, potentially misleading the physician. Mastering Ekg placement ensures that the diagnostic data is reproducible, accurate, and truly representative of the patient’s cardiac health.

Equipment Preparation and Patient Positioning

Before initiating the procedure, proper preparation is essential to reduce signal artifacts—the “noise” that often obscures the ECG tracing. Start by ensuring the patient is in a comfortable, supine position (lying flat on their back) with their arms at their sides to minimize muscle tremor or interference. If the patient has significant chest hair, it may need to be clipped to ensure better electrode adhesion and conductivity. Always clean the skin sites with alcohol to remove oils or lotions, as these substances significantly increase impedance and degrade signal quality.

Standard 12-Lead Ekg Placement Locations

A standard 12-lead EKG uses ten electrodes to produce twelve views of the heart. These are divided into limb leads and precordial (chest) leads. The limb leads are generally color-coded and placed on the arms and legs, while the precordial leads must be positioned with anatomical precision on the chest wall.

Precordial Lead Landmarks

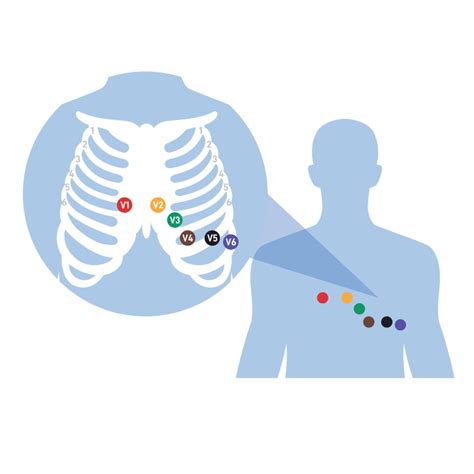

Finding the correct anatomical landmarks is the most challenging part of Ekg placement. Use the clavicle and the sternum to guide your hand. Below are the exact locations for the six chest leads:

V1: Fourth intercostal space at the right sternal border.
V2: Fourth intercostal space at the left sternal border.
V3: Midway between V2 and V4.
V4: Fifth intercostal space at the midclavicular line.
V5: Anterior axillary line, level with V4.
V6: Mid-axillary line, level with V4 and V5.

⚠️ Note: Always locate the "Angle of Louis" (the prominent ridge on the sternum) to identify the second rib. Below the second rib is the second intercostal space; count down from there to reach the fourth intercostal space.

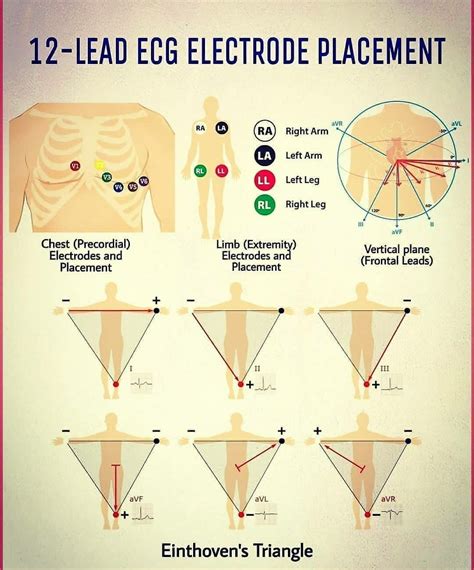

Limb Lead Configuration

The limb leads provide information on the heart in the frontal plane. While modern EKG machines automatically calculate these leads, the physical placement of the electrodes must be consistent:

Electrode	Standard Placement Location
Right Arm (RA)	Right forearm or shoulder
Left Arm (LA)	Left forearm or shoulder
Right Leg (RL)	Right lower leg (Ground electrode)
Left Leg (LL)	Left lower leg

Consistency is key. Whether placing electrodes on the wrists/ankles or the shoulders/hips, ensure they are placed symmetrically on the body. Placing the RA electrode on the shoulder while placing the LA electrode on the wrist can cause unnecessary noise and potential signal imbalance.

Troubleshooting Common Artifacts

Even with perfect Ekg placement, artifacts can occasionally occur. Understanding how to troubleshoot these can save time and prevent unnecessary repeat procedures. Common issues include:

Also read: Weatherford Regional Hospital

Baseline Wander: Often caused by the patient’s breathing or loose electrode adhesion. Ensure electrodes are pressed firmly onto clean, dry skin.
60-Cycle Interference: Looks like a thick, fuzzy baseline. This is usually due to electrical interference from nearby equipment. Ensure the EKG machine is plugged into a properly grounded outlet and that lead wires are not crossing or bunched together.
Muscle Tremor (Somatic Tremor): Appears as erratic, jagged spikes. This is caused by patient shivering or tension. Encourage the patient to relax and keep their hands flat.

💡 Note: Never place electrodes over bony prominences, as they provide poor electrical contact and are prone to motion artifact.

Clinical Considerations for Special Populations

In certain clinical scenarios, standard placement may be altered. For example, in patients with a history of dextrocardia (heart on the right side), the leads must be mirrored on the right side of the chest. Furthermore, in patients undergoing a suspected posterior myocardial infarction, clinicians may utilize “posterior leads” (V7, V8, and V9) placed along the back to capture electrical activity that the standard 12 leads might miss. Always follow institutional guidelines and physician orders when deviating from the standard 12-lead protocol.

Final Thoughts on Diagnostic Accuracy

Mastering the technique of Ekg placement is an essential skill that directly impacts patient care outcomes. By strictly adhering to anatomical landmarks and ensuring a clean, secure connection, healthcare professionals can provide the most accurate diagnostic information possible. The combination of proper preparation, precise landmark identification, and effective artifact management forms the backbone of a successful EKG procedure. As technology continues to evolve, the human element—your attention to detail and ability to correctly apply these electrodes—remains the most vital component in capturing high-fidelity cardiac data. Always double-check your lead placements before beginning the tracing, as this minor step is the most effective way to ensure clinical reliability.
