Understanding the intricacies of cardiac monitoring is essential for healthcare professionals and students alike, and at the heart of this process lies the proper application of Ekg leads. These sensors are the vital bridge between a patient's electrical cardiac activity and the diagnostic machine that records it. By capturing the electrical impulses generated by the heart muscle, these leads provide clinicians with indispensable data to identify arrhythmias, myocardial infarctions, and other critical cardiovascular conditions. Mastering the correct placement and maintenance of these components is not merely a technical skill—it is a fundamental aspect of providing safe, accurate, and life-saving patient care.
The Fundamental Role of Ekg Leads in Cardiac Diagnostics
An electrocardiogram (ECG or EKG) is one of the most common diagnostic tools used in modern medicine. The Ekg leads, often colloquially referred to as electrodes or patches, are strategically placed on the skin to detect the small electrical changes on the skin that arise from the heart muscle's electrophysiological pattern of depolarizing during each heartbeat. Without proper placement of these leads, the resulting tracing can be distorted, leading to potential misdiagnosis or inaccurate monitoring.

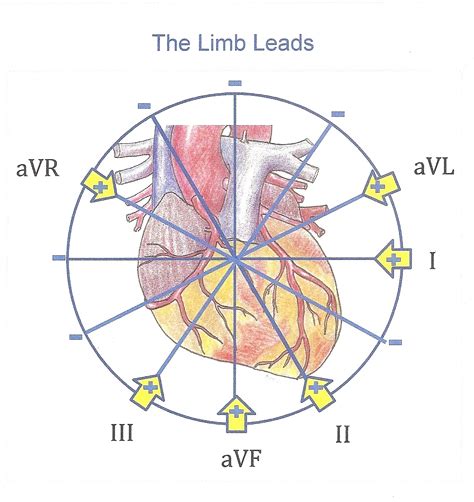

When we talk about "leads" in an ECG, it is important to distinguish between the physical electrode applied to the skin and the "lead" as a mathematical vector of the electrical activity. The 12-lead ECG provides 12 different perspectives of the heart's electrical activity. This comprehensive view is achieved by using a specific configuration of 10 physical Ekg leads (electrodes) placed on the limbs and the chest. Each perspective allows the clinician to localize potential issues, such as ischemia or infarction, to specific walls of the heart.
Understanding the Standard 12-Lead Configuration
To achieve a standard 12-lead ECG, electrodes must be placed precisely according to international guidelines. Even a slight deviation in placement can significantly alter the morphology of the ECG waveform, potentially mimicking pathology where none exists or masking a real cardiac event. The setup involves four limb leads and six precordial (chest) leads.
The limb leads are typically color-coded to ensure they are placed on the correct extremities. Meanwhile, the precordial Ekg leads are numbered V1 through V6 and must be positioned along specific anatomical landmarks of the chest wall. Achieving consistency in this placement is critical for serial ECG comparisons, which allow physicians to track changes in a patient's heart rhythm over time.
| Electrode Name | Anatomical Placement Location |
|---|---|
| V1 | 4th intercostal space, right sternal border |
| V2 | 4th intercostal space, left sternal border |
| V3 | Midway between V2 and V4 |
| V4 | 5th intercostal space, mid-clavicular line |
| V5 | 5th intercostal space, anterior axillary line |
| V6 | 5th intercostal space, mid-axillary line |
Factors Influencing Signal Quality and Artifacts
High-quality diagnostic tracings depend entirely on the integrity of the signal captured by the Ekg leads. Several factors can introduce "noise" or artifacts, which may be misinterpreted as cardiac abnormalities. Minimizing these interferences is essential for obtaining a clean, readable EKG strip.
- Skin Preparation: Oils, lotions, and dead skin cells create resistance. Cleaning the site with alcohol or using an abrasive pad ensures a better conductive interface.
- Electrode Adhesion: Poor quality or dried-out adhesive gel on the Ekg leads will prevent a stable connection, causing a "wandering baseline."
- Patient Movement: Muscle tremors or active movement can create electrical noise that obscures the cardiac signal.
- Lead Wire Integrity: Damaged or frayed wires, or loose connections at the machine end, are frequent culprits for signal interference.
💡 Note: Always ensure that the electrode adhesive is fresh and the conductive gel is not dried out; expired or low-quality electrodes are the most common cause of poor signal quality in a clinical setting.
Troubleshooting Common Technical Issues
Even with experienced staff, technical issues can arise during cardiac monitoring. When the ECG tracing appears erratic or displays unexpected noise, the technician should systematically troubleshoot the Ekg leads rather than assuming a cardiac event is occurring. A methodical approach saves time and reduces patient anxiety.
First, observe the nature of the interference. If the interference is present in all leads, the issue likely stems from the main machine connection or a common ground issue. If the interference is localized to a specific set of leads, the problem is likely one of the specific electrodes or its cable. Checking for loose connections, skin contact, and external electrical interference (such as nearby powered equipment) is the standard troubleshooting protocol.
Furthermore, ensure that the Ekg leads are not placed over significant bony prominences, where skin contact may be suboptimal, or over excessive hair, which should be clipped to ensure the electrode adheres directly to the skin for the best possible conduction.
Best Practices for Patient Safety and Hygiene
In addition to diagnostic accuracy, patient safety and comfort are paramount when managing Ekg leads. Patients may experience skin irritation from prolonged use of adhesives. Utilizing hypoallergenic electrodes for patients with sensitive skin is a necessary precaution. Furthermore, it is critical to adhere to strict infection control protocols by using disposable electrodes whenever possible and cleaning the reusable cable lead wires between patients to prevent cross-contamination.
Patient privacy should also be maintained during the placement of precordial leads, which requires exposure of the chest. Always explain the procedure clearly, provide adequate draping, and ensure the patient understands that the process is painless and essential for an accurate cardiac assessment.
The effective use of Ekg leads is a cornerstone of cardiovascular assessment, blending anatomical knowledge with technical precision. By adhering to standardized placement protocols, diligently preparing the skin for optimal signal conduction, and promptly troubleshooting artifacts, clinicians ensure that the data captured is both accurate and reliable. As technology in cardiac monitoring continues to advance, the fundamentals of proper lead application remain the most critical factor in diagnostic success. Consistency in these practices not only facilitates better clinical decision-making but ultimately enhances patient outcomes by providing a clear, unfiltered view of the heart’s electrical activity.
