Mastering Ekg interpretation is a fundamental skill for healthcare professionals, acting as a window into the electrical activity of the heart. By analyzing the patterns, intervals, and waveforms displayed on a standard 12-lead electrocardiogram, clinicians can diagnose arrhythmias, myocardial infarctions, and various conduction abnormalities. While the complexity of cardiac electrophysiology can seem daunting, breaking down the analysis into a systematic, step-by-step process makes it approachable and reliable. Whether you are a student preparing for board exams or a seasoned clinician looking to refine your skills, understanding the nuances of the ECG trace is essential for providing high-quality patient care and ensuring timely interventions.
The Basics of the Cardiac Cycle
Before diving into complex arrhythmias, it is essential to understand what the ECG is actually measuring. The heart’s electrical system initiates a contraction through a process called depolarization, followed by a recovery phase known as repolarization. On an ECG strip, these electrical events are represented by distinct waves:
- P Wave: Represents atrial depolarization.
- QRS Complex: Represents ventricular depolarization.
- T Wave: Represents ventricular repolarization.
Each segment and interval between these waves offers specific diagnostic information. For instance, the PR interval measures the time taken for the electrical impulse to travel from the atria to the ventricles, while the ST segment is a critical indicator of myocardial ischemia or injury.
A Systematic Approach to Ekg Interpretation

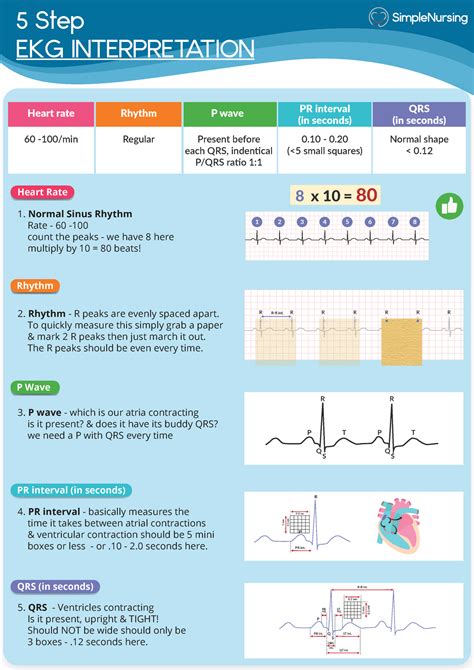

To avoid errors, practitioners should adopt a consistent methodology every time they analyze a strip. Relying on a rote, systematic approach ensures that subtle findings are not overlooked. Consider following this standard checklist for accurate assessment:
- Rate: Determine if the heart rate is normal (60-100 bpm), tachycardic, or bradycardic.
- Rhythm: Check if the rhythm is regular or irregular and identify the presence of P waves.
- Axis: Assess the direction of the electrical spread to identify potential hypertrophy or conduction blocks.
- Intervals: Measure the PR, QRS, and QT intervals to detect conduction delays.
- Waveforms: Examine the morphology of the P wave, QRS complex, and ST segment for signs of abnormality.
⚠️ Note: Always ensure the ECG machine is calibrated correctly (25 mm/s speed and 10 mm/mV amplitude) before attempting any measurements, as incorrect settings can lead to misinterpretation of intervals and amplitudes.
Common ECG Findings and Their Clinical Significance
Understanding Ekg interpretation involves recognizing patterns that correlate with specific cardiac conditions. Below is a table summarizing some common findings and their primary clinical implications.
| Finding | Characteristics | Clinical Implication |
|---|---|---|
| Sinus Tachycardia | Rate > 100 bpm, regular rhythm | Physiological stress, fever, or pain |
| Atrial Fibrillation | Irregularly irregular, no discernable P waves | Risk of stroke, heart failure |
| ST-Segment Elevation | ST segment rises above the isoelectric line | Acute Myocardial Infarction (STEMI) |
| First-Degree AV Block | PR interval > 0.20 seconds | Slowed AV node conduction, usually benign |
Analyzing Rhythm and Axis

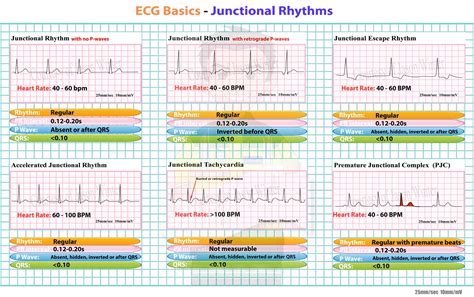

The rhythm analysis determines where the heartbeat originates. A normal heart rhythm begins in the sinoatrial (SA) node, which is characterized by a P wave preceding every QRS complex. If the P wave is absent or morphed, the electrical impulse is likely originating from an ectopic site in the atria or the AV junction. Furthermore, assessing the cardiac axis—the average direction of electrical depolarization—is critical. Left axis deviation or right axis deviation can be indicators of chamber enlargement or specific bundle branch blocks, providing essential clues for diagnosing chronic structural heart disease.
The Importance of the QT Interval
One of the most overlooked aspects of Ekg interpretation is the QT interval. This interval represents the total time for ventricular depolarization and repolarization. A prolonged QT interval is clinically significant because it can predispose patients to Torsades de Pointes, a life-threatening ventricular tachycardia. Factors contributing to QT prolongation include electrolyte imbalances (such as hypokalemia or hypomagnesemia), certain medications (e.g., antiarrhythmics, antibiotics), and congenital syndromes.
Recognizing Ischemia and Infarction
Perhaps the most critical task in acute care is identifying signs of coronary artery disease. When the myocardium is deprived of oxygen, the ECG will show changes that require immediate attention. Look for ST-segment depression as a marker for subendocardial ischemia, and ST-segment elevation for transmural injury. Pathological Q waves are also significant, as they often indicate a prior, completed myocardial infarction. Correlating these ECG changes with the patient’s presenting symptoms, such as chest pain, shortness of breath, or diaphoresis, is vital for accurate clinical decision-making.
💡 Note: Always compare the current ECG with previous tracings if available. A change from a patient’s baseline is often more diagnostically significant than a single isolated reading.
Advanced Interpretation Considerations
As you progress in your proficiency, you will encounter complex scenarios such as bundle branch blocks, Wolff-Parkinson-White syndrome, and electrolyte-induced changes. For example, hyperkalemia classically presents with “peaked T waves” that eventually widen the QRS complex, a sign that necessitates urgent medical intervention. Mastering these visual cues requires repeated practice, continuous education, and a disciplined approach to every strip analyzed. By integrating the technical data from the machine with the clinical reality of the patient, you transform a simple paper strip into a powerful diagnostic tool that can save lives.
The systematic evaluation of electrical heart patterns remains a cornerstone of modern medicine. By consistently analyzing the rate, rhythm, axis, and specific waveform morphology, clinicians can effectively navigate the complexities of cardiac diagnostics. Remember that technical proficiency is only one part of the equation; clinical correlation and the use of previous records are equally vital for ensuring accurate patient outcomes. Continued practice, combined with a meticulous approach to the standard diagnostic checklist, will improve your speed and accuracy, ultimately leading to better identification of both common arrhythmias and life-threatening emergencies.
