The corrected QT interval, commonly referred to as the QTc, is a fundamental metric in electrocardiography that clinicians use to evaluate the electrical stability of the heart. When analyzing an ECG, the time taken for ventricular depolarization and repolarization—represented by the QT interval—is influenced by the heart rate. As the heart rate increases, the QT interval naturally shortens; conversely, as the heart rate slows, it lengthens. To accurately assess whether a QT interval is truly prolonged, clinicians must normalize it to a specific heart rate, typically 60 beats per minute. This is where Ecgpedia Qtc resources become invaluable, providing the formulas and clinical context necessary to interpret this critical diagnostic marker accurately.
Understanding the Importance of the QT Interval

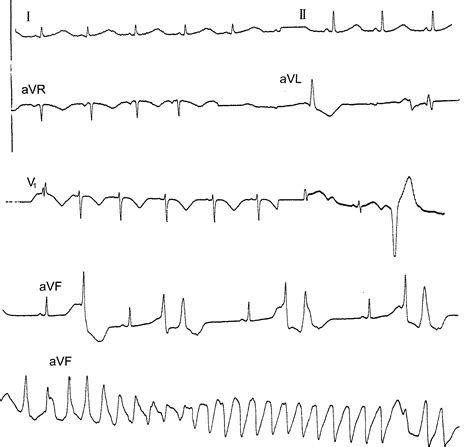

The QT interval represents the total time required for the ventricles to depolarize and repolarize. Measured from the beginning of the QRS complex to the end of the T wave, this interval serves as a window into the heart's electrical health. A prolonged QT interval is not merely a technical finding; it is a significant clinical marker that can predispose patients to life-threatening arrhythmias, most notably Torsades de Pointes, a polymorphic ventricular tachycardia that can degenerate into ventricular fibrillation.
Because the QT interval is rate-dependent, a raw measurement is insufficient. If a patient is tachycardic, a "normal" QT interval might actually be pathologically prolonged when corrected for that high heart rate. Therefore, mastering the calculation and interpretation of the Ecgpedia Qtc is essential for any healthcare provider interpreting ECGs, especially when managing patients on medications known to affect cardiac repolarization.
⚠️ Note: Always ensure that the T wave is clearly identifiable before measuring the QT interval. In cases where the T wave merges with the U wave, measurement accuracy decreases significantly.
Common Formulas for QTc Calculation
Several mathematical formulas have been developed to adjust the QT interval for heart rate. While Bazett’s formula is the most historically recognized, it has known limitations, particularly at extremes of heart rates. Modern clinical practice often utilizes alternative formulas for improved accuracy.
- Bazett’s Formula: QTc = QT / √RR (where RR is the interval between consecutive R waves in seconds). It is widely used but tends to overcorrect at high heart rates and under-correct at slow heart rates.
- Fridericia’s Formula: QTc = QT / RR^(1/3). This formula is often considered more accurate than Bazett's, particularly when heart rates deviate significantly from normal sinus rhythm.
- Framingham Formula: QTc = QT + 0.154(1 - RR). This provides another robust alternative for clinical estimation.
- Hodges Formula: QTc = QT + 1.75(heart rate - 60). This is a simpler linear adjustment often used for quick bedside assessments.
The following table summarizes the key characteristics and common usage scenarios for these primary formulas:
| Formula | Calculation Method | Clinical Utility |
|---|---|---|
| Bazett | QT / √RR | Standard, but prone to error at extreme HR |
| Fridericia | QT / RR^(1/3) | More accurate across a wider range of HR |
| Framingham | QT + 0.154(1 - RR) | Balanced accuracy, useful alternative |
| Hodges | QT + 1.75(HR - 60) | Quick, linear, bedside estimation |
Clinical Interpretation: Defining Prolongation
Once the Ecgpedia Qtc is calculated, the next step is determining whether the value falls within normal, borderline, or prolonged limits. While specific thresholds can vary slightly based on gender and age, general consensus guidelines provide clear benchmarks. A prolonged QTc is generally defined differently for men and women due to physiological differences in hormonal influence on ion channels.
Generally accepted thresholds for QTc prolongation in adults are:
- Normal QTc: Less than 440 ms for men; less than 460 ms for women.
- Borderline QTc: 440–460 ms for men; 460–480 ms for women.
- Prolonged QTc: Greater than 460 ms for men; greater than 480 ms for women.
It is vital to recognize that a single QTc measurement provides only a snapshot. The clinical context—including the patient’s medication history, electrolyte status (especially potassium, magnesium, and calcium levels), and underlying structural heart disease—must always be considered when interpreting these results.
💡 Note: Always check for "QT-prolonging drugs" in the patient’s chart. Many common medications, including certain antibiotics, antipsychotics, and antiemetics, can induce acquired long QT syndrome.
Factors Influencing QTc Measurements
Several factors can complicate the measurement and interpretation of the QTc interval. Clinicians must be aware of these pitfalls to avoid both false-positive and false-negative findings. Firstly, technique is paramount. Measurements should ideally be taken from the lead with the longest QT interval, often Lead II or V5. If the T wave is biphasic, the measurement should extend to the end of the second component, excluding the U wave unless it is fused with the T wave.
Furthermore, physiological and pathological states significantly impact QTc:
- Electrolyte Imbalances: Hypokalemia, hypomagnesemia, and hypocalcemia are classic causes of QTc prolongation.
- Cardiac Ischemia/Infarction: Acute myocardial infarction can alter repolarization patterns, leading to QTc changes.
- Autonomic Tone: Increased sympathetic activity generally shortens the QT interval, while parasympathetic activity can prolong it.
- Genetic Factors: Congenital Long QT Syndrome (LQTS) requires careful evaluation and differentiation from acquired forms.
Practical Steps for Accurate Measurement
To ensure consistent and accurate QTc determination, follow a structured approach every time you analyze an ECG strip:
- Identify a clear, representative beat. Avoid beats that follow premature ventricular contractions (PVCs) or compensatory pauses, as these will yield inaccurate rate adjustments.
- Measure the QT interval from the onset of the QRS complex to the end of the T wave. Using digital calipers on computerized ECG machines is generally reliable, but manual verification is recommended for ambiguous T waves.
- Measure the preceding RR interval (in seconds) to determine the heart rate component of the calculation.
- Apply the appropriate formula. While Bazett's is standard, if the heart rate is high or low, consider recalculating using Fridericia's formula for a more refined result.
- Correlate the numerical QTc value with the patient’s clinical presentation, current medications, and lab results.
By following these systematic steps, healthcare professionals can move beyond simply relying on computer-generated interpretations, which are frequently prone to errors, particularly in the presence of atrial fibrillation or bundle branch blocks.
Mastering the intricacies of the QTc interval is a cornerstone of safe and effective electrocardiographic interpretation. Because the QT interval is intrinsically linked to heart rate, the application of robust correction formulas is essential to avoid misdiagnosis. Whether dealing with routine screenings or assessing patients on high-risk pharmacotherapy, understanding the underlying principles and potential limitations of QTc calculations—as detailed in established cardiovascular resources—empowers clinicians to make informed decisions. By carefully measuring the interval, applying the appropriate formula for the patient’s heart rate, and critically evaluating the results within the full clinical picture, providers can effectively monitor for risks of dangerous arrhythmias and optimize patient safety.
