Understanding the anatomy of your entryway is the first step toward effective home maintenance. Whether you are dealing with a squeaky hinge, a malfunctioning lockset, or a drafty threshold, having access to a reliable Door Parts Diagram can save you time, money, and frustration. Doors are complex mechanical systems comprising several moving and stationary components that must work in perfect harmony. By learning how these parts interact, you empower yourself to perform minor repairs, improve security, and enhance the overall longevity of your home's entryways.
Deconstructing the Door: Essential Components

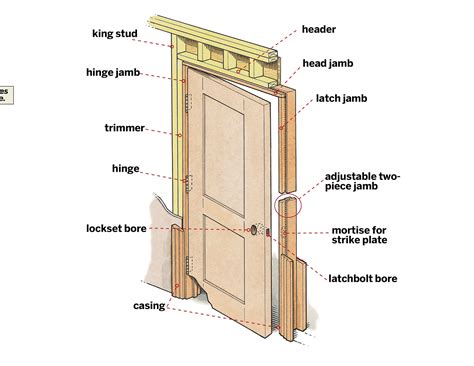

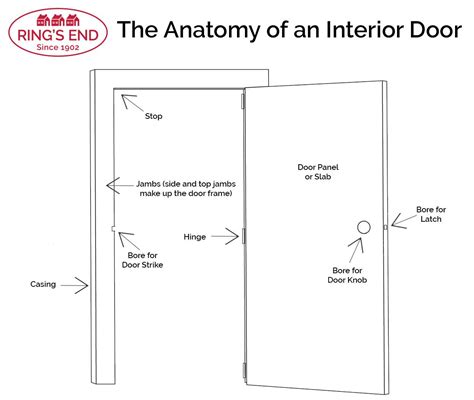

To effectively use a Door Parts Diagram, you must first familiarize yourself with the standard terminology used by professionals. Most doors are categorized as either interior or exterior units, but they share a fundamental structural foundation. A typical door assembly consists of the door slab (the moving part) and the door frame (the stationary part attached to the wall).
Here are the primary components you will encounter:

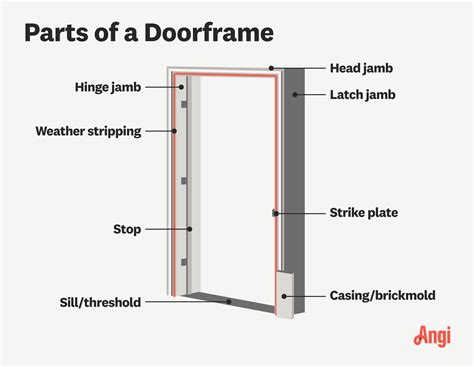

- The Jambs: These are the vertical side pieces of the door frame that support the weight of the door.
- The Header: The horizontal top piece of the frame.
- The Threshold: The bottom track of an exterior door that bridges the gap between the door and the floor to prevent water and air infiltration.
- The Door Slab: The actual panel that swings open and closed.
- Hinges: The pivot points that attach the door to the jamb, allowing for smooth movement.
- The Latch and Lockset: The mechanisms responsible for keeping the door securely closed and locked.
- Stop Molding: The thin strip of wood or metal that prevents the door from swinging through the frame.
The Anatomy of Hardware and Security

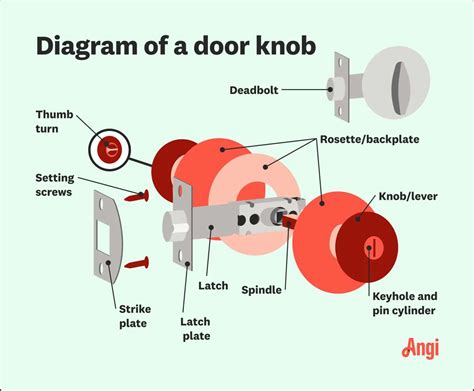

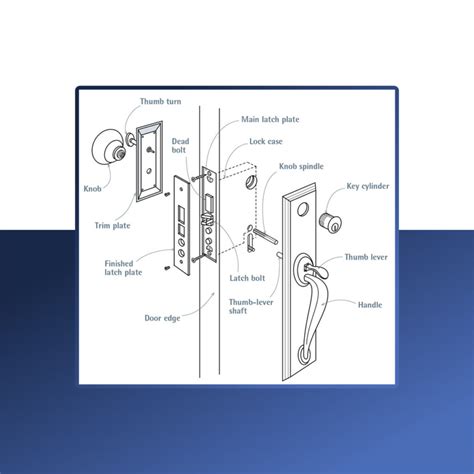

While the frame and slab provide the structure, the hardware is what makes the door functional and secure. When examining a Door Parts Diagram, you will notice that the lockset is actually a collection of smaller, intricate pieces. Understanding these is vital if you ever need to replace a handle or rekey your home.
Key hardware components include:
- The Strike Plate: A metal plate attached to the door jamb that receives the latch bolt.
- The Latch Bolt: The spring-loaded component that keeps the door held against the stop.
- The Deadbolt: A hardened steel bolt that extends deep into the jamb for high-level security.
- The Spindle: The metal rod that connects the internal mechanism to the knobs or levers on both sides of the door.
- The Rosette or Escutcheon: The decorative plate that covers the hole in the door where the handle is mounted.
| Part Name | Primary Function | Common Maintenance |
|---|---|---|
| Hinge | Allows the door to pivot | Periodic lubrication |
| Weatherstripping | Blocks drafts and water | Clean and replace if worn |
| Strike Plate | Reinforces latch housing | Tighten mounting screws |
| Sweep | Seals bottom gap | Adjustment for height |
💡 Note: Always ensure that your replacement door parts are compatible with the specific brand and model of your existing hardware, as many locksets use proprietary internal geometries.
Troubleshooting Common Issues Using Your Diagram
Most homeowners only consult a Door Parts Diagram when something goes wrong. Whether your door is dragging on the carpet or the deadbolt is failing to align with the strike plate, the diagram acts as a diagnostic map. If a door is rubbing against the frame, you don’t necessarily need to replace the entire unit. Often, the solution lies in adjusting the hinge tension or tightening the mounting screws located on the jamb side.
When the deadbolt is sticking, consult your diagram to locate the alignment of the strike plate. Often, the internal hole in the strike plate has become filled with debris, or the jamb itself has shifted due to seasonal humidity changes. By identifying the exact point of friction through the diagram, you can perform precise adjustments rather than trial-and-error sanding or planning.
Long-term Maintenance and Care
Preventative maintenance is significantly easier than replacing an entire door assembly. Using your Door Parts Diagram as a reference, you should conduct a walkthrough of all doors in your home at least once a year. Check for loose screws on the hinges—these are the most common cause of sagging doors. If you notice the finish on the lockset tarnishing or the turning mechanism becoming difficult to operate, apply a high-quality silicone-based lubricant to the interior parts.
Be particularly mindful of exterior door parts, which are exposed to the elements. Weatherstripping, which is often shown on the perimeter of the frame diagram, can become brittle over time. Replacing this simple component can drastically lower your energy bills by preventing air leaks. Remember that keeping your door components clean and aligned prevents premature wear and tear, ensuring that your home remains both comfortable and secure for years to come.
💡 Note: Avoid using petroleum-based lubricants on door locks, as they can attract dust and grime over time, eventually leading to mechanical failure inside the cylinder.
Mastering the layout of your door through a detailed Door Parts Diagram provides the confidence needed to handle routine upkeep and minor repairs. By understanding the function of the hinges, locksets, frames, and weather sealing, you can maintain your home’s security and energy efficiency with ease. Regularly inspecting these components allows you to catch small issues before they escalate into significant structural repairs. With the right knowledge and a clear view of how each part contributes to the whole, you ensure your doorways remain functional, safe, and reliable components of your living space.
