In the field of mechanical engineering and gear design, precision is paramount. Among the fundamental parameters that dictate the performance, size, and interaction of gears, the diametral pitch stands out as a cornerstone concept. Whether you are designing industrial machinery, automotive transmissions, or intricate robotics, understanding this metric is essential for ensuring that gear teeth mesh correctly and transmit power efficiently. While it may seem like just another technical term, the diametral pitch is the primary link between a gear's physical dimensions and its functional capability, acting as a universal language for engineers worldwide.
Understanding the Concept of Diametral Pitch
At its core, the diametral pitch (often abbreviated as P or DP) is a measurement of gear tooth size relative to the gear's diameter. It is defined specifically as the ratio of the number of teeth on a gear to its pitch diameter. Essentially, it tells you how many teeth exist for every inch of the pitch diameter.
The relationship is defined by the following fundamental formula:
P = N / D
- P = Diametral Pitch
- N = Number of teeth
- D = Pitch diameter (in inches)
This definition is crucial because it helps establish a standard. Because the number of teeth must be an integer, the diametral pitch directly limits the possible diameters for a gear of a specific size. If you want a gear with a specific number of teeth, changing the diametral pitch will inevitably change the gear's size. A higher diametral pitch indicates smaller, more densely packed teeth, while a lower diametral pitch indicates larger, coarser teeth.
The Critical Role of Diametral Pitch in Gear Meshing
The most important rule in gear manufacturing is that two gears must have the same diametral pitch to mesh successfully. If you attempt to mate a gear with a DP of 12 with a gear that has a DP of 16, they will not function correctly. Their tooth profiles will not align, leading to binding, excessive noise, rapid wear, or immediate mechanical failure.
This requirement ensures consistency across mechanical systems. By standardizing the pitch, engineers can source gears from different manufacturers and be confident that they will integrate seamlessly into their designs, provided the specification matches.
⚠️ Note: Always verify that both mating gears share the exact same diametral pitch. Even a small discrepancy will prevent proper operation and can damage the gear teeth.
Diametral Pitch vs. Module: Understanding the Difference
While diametral pitch is the standard unit of measurement in the United States (using the imperial system, measured in inches), much of the rest of the world uses the module (measured in millimeters). These two systems are fundamentally different ways of expressing the same concept: the sizing of gear teeth.
It is important to understand how they relate to avoid confusion when reading international design specifications:
| Feature | Diametral Pitch | Module |
|---|---|---|
| Units | Inches | Millimeters |
| Calculation | Teeth / Diameter | Diameter / Teeth |
| Relationship | DP = 25.4 / Module | Module = 25.4 / DP |
Because the diametral pitch is a ratio of teeth to inches and the module is a ratio of millimeters to teeth, they are inversely proportional. As the size of the gear teeth increases, the diametral pitch value decreases, whereas the module value increases.

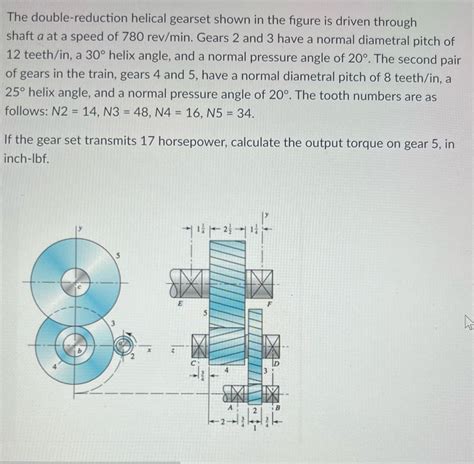

Designing with Diametral Pitch: Key Considerations
When selecting a diametral pitch for a design project, engineers must balance several competing factors. The decision is rarely arbitrary and is usually driven by the specific application requirements.
- Load Requirements: Heavier loads generally require larger gear teeth to withstand the stress. Larger teeth correspond to a lower diametral pitch.
- Space Constraints: If your design is compact, you may need smaller teeth, which means a higher diametral pitch.
- Smoothness and Noise: Generally, smaller teeth (higher DP) provide smoother, quieter operation because there are more teeth in contact at any given time, leading to a more consistent power transfer.
- Manufacturing Capabilities: Smaller teeth can be harder to machine to high precision, while very large teeth may require specialized equipment.
Engineers often start with the torque requirements and the available space envelope, then iterate through standard diametral pitch values to find the optimal balance between durability and compactness.
How to Calculate Diametral Pitch in Practice
In real-world scenarios, you might encounter a gear of unknown specifications. Calculating the diametral pitch is a standard procedure during reverse engineering or maintenance.
If you have the gear in hand, follow these steps:
- Count the total number of teeth (N) on the gear.
- Measure the outer diameter (OD) of the gear accurately using calipers.
- Use the standard formula, adjusting for the fact that you measured the OD rather than the pitch diameter: P = (N + 2) / OD.
The "N+2" in the numerator accounts for the addendum (the height of the tooth above the pitch circle), which is added to both sides of the diameter. By adding 2 to the number of teeth and dividing by the measured outside diameter, you can very accurately determine the nominal diametral pitch.
ℹ️ Note: Precision is vital when measuring the outside diameter. Even a tiny error in measurement, especially on smaller gears, can lead to calculating the wrong pitch.
Common Applications and Standards
The diametral pitch is not a random number; it adheres to established standards to ensure availability and interchangeability. In industrial applications, you will frequently encounter common values such as 4, 8, 12, 16, 24, 32, 48, and 64 DP.
Applications ranging from heavy construction machinery to high-precision aerospace components rely on these standards. For example, a heavy-duty gearbox in a mining vehicle might utilize a very low diametral pitch (large teeth) to handle immense torque, while a precision timing mechanism in a clock might utilize a very high diametral pitch (fine teeth) to ensure smooth, accurate motion without requiring significant load-bearing capacity.
Selecting the correct pitch is about more than just the math; it is about matching the engineering requirements to the physical constraints of the mechanical system, ensuring that the final product is both functional and reliable over its intended service life.
By mastering the principles of diametral pitch, engineers and designers gain a powerful tool for controlling gear behavior. This metric is far more than a simple numerical ratio; it is the fundamental parameter that defines the balance between structural integrity and spatial efficiency in mechanical systems. When you properly understand how the diametral pitch influences tooth size, load capacity, and meshing compatibility, you elevate your design capabilities, ensuring that your machinery performs at its peak. Whether troubleshooting an existing system or designing a new one from scratch, this foundational knowledge remains indispensable for anyone working with gears.
