Dens Axis Anatomy

The human cervical spine is a masterpiece of evolutionary engineering, designed to balance the weight of the skull while allowing for an expansive range of motion. At the heart of this complex structure lies the second cervical vertebra, commonly referred to as the axis (C2). A defining feature of this bone is the dens axis anatomy, also known as the odontoid process. This peg-like projection acts as a pivotal anchor, facilitating the complex rotational movements of the head. Understanding the structural integrity and clinical significance of the dens is crucial for medical professionals, students, and anyone interested in the biomechanics of the human neck.

Table of Contents

Understanding the Cervical Spine Hierarchy

To grasp the significance of the dens, one must first look at the unique arrangement of the upper cervical spine. Unlike the rest of the spinal column, the first two vertebrae—the atlas (C1) and the axis (C2)—possess specialized shapes to accommodate the skull. The atlas, lacking a vertebral body, sits atop the axis. It is the dens axis anatomy that protrudes superiorly from the body of the axis, extending into the ring of the atlas to create the atlanto-axial joint. This joint is the primary site for approximately 50% of all cervical rotation, highlighting why the dens is not just a passive bone, but a dynamic pivot point for cranial movement.

Cervical spine visualization

The Morphology of the Dens Axis

The dens axis anatomy is characterized by several distinct regions that serve specific tethering and stabilizing functions. Anatomically, the dens is divided into three primary components:

The Apex (Tip): The superior-most part of the dens, which serves as the attachment point for the apical ligament. This ligament connects the dens to the anterior margin of the foramen magnum.
The Body (Shaft): The vertical portion that stands within the atlas ring. It features a smooth articular facet on its anterior surface that glides against the inner surface of the anterior arch of the atlas.
The Base: The junction where the dens merges with the body of the axis. This area is a common site for fractures due to the transition between the cancellous bone of the dens and the more rigid cortical bone of the axis body.

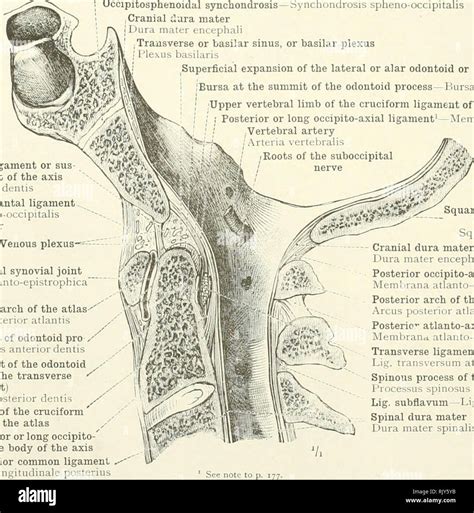

Furthermore, the dens is held in position by a series of powerful ligaments. The transverse ligament of the atlas is arguably the most vital, as it arches behind the dens to maintain its position against the anterior arch of the atlas, preventing posterior displacement that could compromise the spinal cord.

Comparative Structural Stability Table

The following table outlines the key stabilizers of the atlanto-axial complex and their primary function in relation to the dens:

Ligament	Primary Function
Transverse Ligament	Prevents posterior displacement of the dens
Alar Ligaments	Limits rotation of the head to prevent over-torsion
Apical Ligament	Provides minor stabilization at the apex
Tectorial Membrane	Continuous with the posterior longitudinal ligament; limits flexion

Clinical Implications and Pathologies

The dens axis anatomy is medically significant due to its vulnerability to trauma. When the neck is subjected to extreme forces—such as in high-impact motor vehicle accidents or falls—the dens is susceptible to fractures. These are broadly categorized into three types based on the Anderson and D'Alonzo classification system:

Type I: An avulsion fracture of the tip of the dens. While generally stable, it requires careful monitoring.
Type II: A fracture at the base of the dens. This is the most common and clinically dangerous type because the base has poor vascular supply, which can lead to non-union of the bone.
Type III: A fracture that extends into the cancellous body of the axis. These usually have a better prognosis for healing due to the higher degree of blood flow in the vertebral body.

💡 Note: Any suspected injury to the cervical spine, particularly involving the dens, necessitates immediate immobilization using a rigid cervical collar and urgent imaging via CT or MRI to prevent neurological damage.

Biomechanical Movement and Constraints

The range of motion provided by the dens axis anatomy is essential for daily human function. Because the dens acts as a central pivot, the atlas rotates around it while the skull moves in unison with the atlas. The alar ligaments, which attach to the sides of the dens and run laterally to the skull base, serve as the "check-reins" of this movement. They are responsible for tensioning during rotation, ensuring that the head does not rotate beyond physiological limits. Should these ligaments become lax or torn, the integrity of the entire upper cervical spine is compromised, leading to instability and potential spinal cord compression.

Developmental Aspects

Interestingly, the dens axis anatomy evolves significantly from childhood to adulthood. In infants, the dens is separated from the body of the axis by a cartilaginous plate known as the synchondrosis. This plate typically fuses by the age of six. Misunderstanding this developmental stage can sometimes lead to misdiagnoses in pediatric radiology, where the open synchondrosis might be incorrectly identified as a fracture. Surgeons and radiologists must maintain a high index of suspicion and deep knowledge of age-related anatomical changes when evaluating cervical trauma in younger patients.

💡 Note: Always cross-reference patient age with imaging findings when analyzing the cervical spine to distinguish between normal developmental anatomy and pathological fractures.

Final Reflections on Cervical Complexity

The intricacy of the dens axis anatomy serves as a profound example of how form dictates function within the human body. As the central pillar of the neck, this small bony projection is tasked with the monumental responsibility of balancing the head while facilitating our most critical movements. From the structural support provided by the transverse ligaments to the complex classification systems used to treat its fractures, the dens remains a focal point of orthopedic and neurological study. Recognizing the importance of this structure enhances our understanding of spinal health and the careful balance required to keep our upper cervical column functioning smoothly throughout a lifetime of movement.
