In the vast realm of inorganic chemistry and molecular spectroscopy, the study of symmetry serves as a foundational pillar for understanding the physical properties of molecules. When chemists and physicists delve into the complexities of molecular orbitals, vibrational modes, and electronic transitions, they frequently rely on group theory to simplify these complex problems. Central to this mathematical framework is the D4h Character Table, a vital tool used to categorize molecular symmetry and predict the behavior of molecules with square planar or tetragonal geometry. By breaking down the complex wave functions into manageable representations, the character table allows scientists to solve Schrödinger's equation with significantly greater efficiency.
Understanding the D4h Point Group
The D4h point group describes the symmetry of molecules that possess a four-fold axis of rotation perpendicular to four two-fold axes, along with a horizontal mirror plane. A classic example of a molecule exhibiting this symmetry is the square planar complex, such as the tetrachloroplatinate ion ([PtCl4]²⁻) or even the simple xenon tetrafluoride (XeF4) molecule. The "D" in the name signifies the dihedral symmetry, "4" represents the four-fold rotational axis, and "h" indicates the presence of a horizontal reflection plane.
To fully grasp how the D4h character table functions, one must first identify the symmetry elements present within these molecules. These elements include:
- The identity operation (E)
- A principal four-fold rotational axis (C4)
- Two-fold rotational axes (C2)
- Vertical and dihedral mirror planes (σv and σd)
- An inversion center (i)

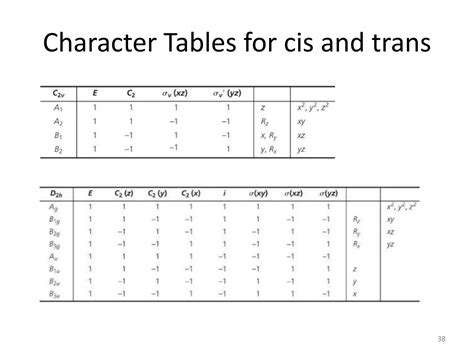

The Anatomy of the D4h Character Table
The character table itself is a matrix that maps how different symmetry operations affect the various wave functions of the molecule. Each row represents an irreducible representation (often denoted by Mulliken symbols like A1g, B2u, or Eg), while the columns correspond to the symmetry operations of the point group. The numbers within the table represent the "character" of the transformation—essentially indicating how the function changes under a specific symmetry operation.
| D4h | E | 2C4 | C2 | 2C2' | 2C2'' | i | 2S4 | σh | 2σv | 2σd |
|---|---|---|---|---|---|---|---|---|---|---|
| A1g | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| A2g | 1 | 1 | 1 | -1 | -1 | 1 | 1 | 1 | -1 | -1 |
| B1g | 1 | -1 | 1 | 1 | -1 | 1 | -1 | 1 | 1 | -1 |
| B2g | 1 | -1 | 1 | -1 | 1 | 1 | -1 | 1 | -1 | 1 |
| Eg | 2 | 0 | -2 | 0 | 0 | 2 | 0 | -2 | 0 | 0 |
| A1u | 1 | 1 | 1 | 1 | 1 | -1 | -1 | -1 | -1 | -1 |
| A2u | 1 | 1 | 1 | -1 | -1 | -1 | -1 | -1 | 1 | 1 |
| B1u | 1 | -1 | 1 | 1 | -1 | -1 | 1 | -1 | -1 | 1 |
| B2u | 1 | -1 | 1 | -1 | 1 | -1 | 1 | -1 | 1 | -1 |
| Eu | 2 | 0 | -2 | 0 | 0 | -2 | 0 | 2 | 0 | 0 |
Practical Applications in Chemistry
Why is this table so crucial? Researchers utilize the D4h character table to predict the outcomes of molecular orbital interactions. For instance, in transition metal chemistry, the splitting of d-orbitals in a square planar field is directly informed by the symmetry labels provided in the table. By assigning these labels to the orbitals (such as dx²-y² or dz²), chemists can determine which electronic transitions are "allowed" or "forbidden" by the Laporte selection rule.
Furthermore, vibrational spectroscopy relies heavily on this information. When infrared (IR) or Raman spectra are generated, the number of observable peaks corresponds to the symmetry of the vibrational modes. By applying the character table to the Cartesian coordinates of the atoms, one can deduce exactly which vibrations will result in a change in dipole moment (IR active) or polarizability (Raman active).
💡 Note: Always ensure you correctly identify the point group of your molecule before referencing a character table, as a slight misclassification can lead to entirely incorrect spectroscopic predictions.
Simplifying Complex Calculations
The beauty of using the D4h character table lies in its ability to reduce heavy mathematical lifting. Instead of performing complex integration across three-dimensional space, chemists can use the Great Orthogonality Theorem and simple matrix multiplication. These procedures help in determining if the direct product of two symmetry representations contains the totally symmetric representation (A1g). If it does, the transition or interaction is physically possible under the constraints of quantum mechanics.
This process is highly beneficial in:
- Predicting the geometric stability of coordination complexes.
- Constructing qualitative molecular orbital diagrams.
- Interpreting UV-Vis absorption spectra for metal complexes.
- Analyzing the degeneracy of electronic energy levels.
Mastering Symmetry Labeling
The symbols found in the left-hand column of the table follow specific conventions. Labels starting with 'A' or 'B' are one-dimensional, meaning they correspond to non-degenerate states. Labels starting with 'E' are two-dimensional, indicating degenerate states. The subscripts 'g' and 'u' refer to "gerade" (even) and "ungerade" (odd) parity, which describe how the function behaves under the inversion operation. Understanding these conventions is essential for anyone aiming to use the D4h character table for advanced chemical research.
💡 Note: If a character in the table is 2, it indicates that the specific operation acts on a degenerate set of wave functions, confirming that the state is doubly degenerate.
As we wrap up our exploration of this topic, it becomes clear that the D4h character table is an indispensable instrument for understanding molecular behavior. By translating abstract symmetry operations into quantitative data, it provides researchers with the clarity needed to navigate the complexities of structural chemistry. Whether you are analyzing vibrational spectroscopy or mapping out electronic states, the ability to utilize these tables effectively will provide profound insights into the nature of chemical bonds and molecular architecture. Mastering these group theory tools empowers chemists to predict properties and behaviors with a level of precision that would be otherwise unattainable, cementing the importance of symmetry in the modern scientific landscape.
