The smooth operation of your vehicle relies on a complex network of components working in harmony, and among the most critical, yet often overlooked, parts is the Cv Joint Axle. Whether you are driving a front-wheel-drive sedan, an all-wheel-drive SUV, or a performance vehicle, these components are responsible for transferring the power from the transmission to the wheels while allowing for the necessary suspension movement and steering angles. Understanding how this system works, how to spot signs of failure, and how to maintain it can save you significant money in repair costs and ensure your safety on the road.
What is a Cv Joint Axle?

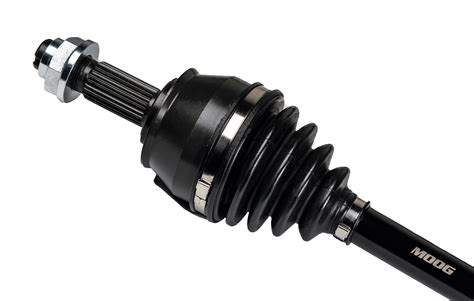

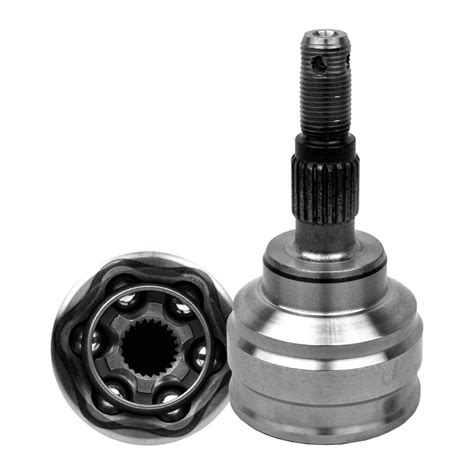

The term Cv Joint Axle refers to a Constant Velocity (CV) joint integrated into the drive axle assembly. Unlike traditional universal joints that may cause vibrations or speed fluctuations when operating at an angle, constant velocity joints are engineered to transmit power at a constant rotational speed, even while the joint is operating at varying angles. This is essential for modern vehicles where the wheels must move up and down with the suspension and steer left and right while being driven by the engine.
Most vehicles use two types of joints within the axle assembly:
- Inboard Joints: Located near the transmission or differential, these joints account for the suspension movement of the vehicle.
- Outboard Joints: Located at the wheel hub, these joints manage both the suspension movement and the articulation required for steering.
Signs of a Failing Cv Joint Axle
Because the Cv Joint Axle is hidden behind the wheels and protected by rubber boots, failures often go unnoticed until they become severe. However, your car will usually provide distinct warning signs if you know what to look and listen for.
If you notice any of the following, it is time to have your vehicle inspected by a professional:
- Clicking Noises: A rhythmic clicking or popping sound when turning the steering wheel sharply is the most common indicator of a worn-out outboard joint.
- Grease on the Inner Wheel: If a CV boot tears, it will sling thick, black grease onto the inside of the rim and suspension components.
- Vibrations During Acceleration: If you feel a shudder or excessive vibration through the chassis or steering wheel while accelerating, an inboard joint may be failing.
- Clunking Sounds: A loud clunk when you shift from park to drive or during initial acceleration often points to excessive play within the joint assembly.
⚠️ Note: If you spot grease leaking from the axle area, address it immediately. A torn boot is the leading cause of joint failure, as the grease keeps the internal bearings lubricated and prevents debris from causing premature wear.
Comparison of Common Axle Issues
| Symptom | Likely Culprit | Recommended Action |
|---|---|---|
| Clicking while turning | Outer CV Joint | Replace Axle Assembly |
| Grease on the rim | Torn Boot | Replace Boot or Axle |
| Vibration at speed | Imbalance or Worn Joint | Inspect and Replace |
Preventative Maintenance and Inspection
The lifespan of a Cv Joint Axle can vary significantly based on your driving style and road conditions. While there is no set mileage interval for replacement, regular visual inspections are highly recommended. During every oil change or tire rotation, ask your mechanic to take a quick look at the axles.
Focus your attention on the CV boots. These are the accordion-shaped rubber covers that protect the precision-engineered joints from road salt, water, and grit. Once the rubber cracks or pinches, the protective grease escapes and contaminants enter. Without lubrication, the internal metal components will grind against each other, leading to total failure in a matter of weeks.
Steps for Axle Replacement
Replacing an axle is a labor-intensive task that requires mechanical knowledge and the right tools. If you choose to perform this task yourself, follow these general steps:
- Secure the vehicle on jack stands and remove the wheel to access the axle nut.
- Remove the axle nut and disconnect the steering knuckle from the lower control arm or strut.
- Carefully pull the wheel hub outward to release the outboard end of the axle.
- Use a pry bar to release the inboard joint from the transmission or differential housing.
- Install the new Cv Joint Axle, ensuring the splines are aligned perfectly to avoid damaging the transmission seals.
💡 Note: Always use a torque wrench to tighten the axle nut to the manufacturer’s specified settings. Failure to do so can lead to wheel bearing failure or the axle backing out while driving.
Choosing the Right Replacement Parts
When it comes time to replace your axle, you have several choices regarding the parts you purchase. Opting for high-quality components is essential, as the stress placed on these parts during tight turns and high-speed maneuvers is substantial. You should look for parts that feature durable, high-temperature rubber boots and precision-machined steel joints.
Rebuilt axles are often available and can be a cost-effective solution. However, ensure that the rebuilder follows strict quality control standards. If you are planning to keep your vehicle for many years, a new, high-quality aftermarket or original equipment manufacturer (OEM) axle is generally the better investment to ensure long-term reliability and performance.
Taking care of your vehicle’s drivetrain components is an essential part of responsible car ownership. The Cv Joint Axle plays a vital role in keeping your car moving smoothly, and catching early signs of wear can prevent more costly repairs down the road. By paying attention to unusual sounds, regularly inspecting the condition of your CV boots, and acting promptly when you notice grease leakage or vibration, you can significantly extend the life of your axle assembly. Whether you are performing the repair yourself or seeking professional assistance, prioritizing quality parts and correct installation procedures will ensure that your vehicle remains safe, reliable, and smooth-running for many miles to come.
