In the world of structural engineering and metal fabrication, the integrity of a connection is paramount to the safety and longevity of any build. Among the various techniques used to join metal components, Complete Joint Penetration Welding (often abbreviated as CJP) stands out as the gold standard for high-strength applications. Unlike partial penetration welds, which may leave an unwelded gap in the center of the joint, a CJP weld ensures that the weld metal extends through the entire thickness of the joint, creating a structural bond that is effectively as strong as—or stronger than—the base metal itself.
Understanding the Mechanics of Complete Joint Penetration Welding
At its core, Complete Joint Penetration Welding is defined by the complete fusion of weld metal and base metal throughout the depth of the joint. This technique is typically utilized in critical joints where structural failure is not an option, such as in bridge construction, skyscraper skeletons, pressure vessels, and heavy machinery. To achieve this level of penetration, welders must utilize precise edge preparation, specific joint geometries, and stringent heat control.
When a joint is prepared for CJP, the edges of the plates are often beveled or grooved. These configurations allow the welding arc to reach the root of the joint, ensuring that the molten metal flows into every crevice, eliminating voids or "lack of fusion" defects. Because the weld fully integrates with the base material, the resulting connection can handle extreme tensile, compressive, and fatigue loads, which is essential for projects subject to heavy vibrations or seismic activity.
Key Advantages and Applications
Choosing to implement Complete Joint Penetration Welding provides a level of security that other methods simply cannot match. By ensuring there is no "root opening" or internal discontinuity, engineers can treat the joint as a continuation of the structural member. This simplifies the design process by allowing the use of the full strength of the plates being joined.
Primary benefits include:
- Structural Integrity: By eliminating internal voids, the weld is less susceptible to crack propagation under cyclic loading.
- Design Efficiency: Engineers can calculate loads based on the strength of the base metal rather than a reduced effective weld area.
- Compliance: Many international building codes (such as AWS D1.1) mandate CJP welds for critical joints in primary load-bearing members.
Typical applications for this welding method include:
- Building columns and beam-to-column moment connections.
- Offshore oil platform structural components.
- Heavy-duty axle and chassis manufacturing.
- Nuclear containment and specialized pressure vessel fabrication.
Comparison Table: CJP vs. PJP Welding
To better understand why professionals choose one method over the other, it is helpful to contrast CJP with Partial Joint Penetration (PJP) welds.
| Feature | Complete Joint Penetration (CJP) | Partial Joint Penetration (PJP) |
|---|---|---|
| Penetration Depth | Through the entire thickness | Less than the full thickness |
| Strength | Equal to base metal | Dependent on weld size |
| Preparation | Significant beveling required | Minimal to moderate |
| Cost | Higher due to labor and inspection | Lower |
| Primary Use | Critical/Heavy load-bearing | Secondary/Static load-bearing |
Steps for Achieving High-Quality CJP Welds
Achieving a perfect Complete Joint Penetration Welding result requires a systematic approach. The process must be strictly managed from the preparation phase to the final inspection. Quality control is not optional; it is the backbone of the process.
Standard workflow requirements:
- Joint Preparation: Ensure the steel plates are cleaned of mill scale, rust, and oil. The bevel angle must be accurate according to the Welding Procedure Specification (WPS).
- Root Opening Alignment: Precise root openings are critical. If the gap is too narrow, the arc won't reach the bottom; if it is too wide, it increases the risk of burn-through.

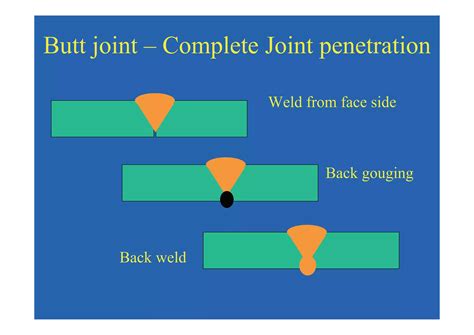

- Backing Bars or Back Gouging: To ensure the root is fully fused, operators either use a steel backing bar or perform back gouging (removing the root pass from the back side and welding over it).
- Strict Welding Parameters: Adhere to the current, voltage, and travel speed defined in your WPS to maintain the proper heat input.
- Nondestructive Testing (NDT): Since CJP welds are critical, they must undergo Ultrasonic Testing (UT) or Radiographic Testing (RT) to ensure no internal defects exist.
⚠️ Note: Always verify that your welding equipment is calibrated and that the welder is certified for the specific thickness and position required by the project specifications.
Challenges and Considerations
While Complete Joint Penetration Welding is the gold standard, it is not without challenges. It is significantly more time-consuming than fillet welds or PJP welds. The demand for skilled labor is high, as the welder must maintain consistent fusion while dealing with the heat buildup that can occur during multiple passes. Additionally, the inspection process can be costly and may cause delays if defects are found and require repair. Repairing a CJP weld is often more complex than the initial weld itself, as it involves carbon arc gouging or grinding to remove the defective material without compromising the surrounding base metal.
Final Thoughts
The reliance on Complete Joint Penetration Welding remains a cornerstone of modern construction and industrial engineering. By ensuring that the connection between two materials is as robust as the materials themselves, engineers create structures that are durable, safe, and capable of withstanding the rigors of their operational environments. While the process demands rigorous preparation, specialized skill, and comprehensive testing, the assurance of structural integrity is an invaluable return on investment. Professionals who master the nuances of CJP welding contribute directly to the safety standards that define our built environment, making this method an essential tool in any high-stakes fabrication repertoire.
