Cathode Ray Oscilloscope

In the vast landscape of electrical engineering and physics education, few instruments hold as much historical and practical significance as the Cathode Ray Oscilloscope (CRO). Often considered the cornerstone of the laboratory bench, this device allows engineers, technicians, and students to visualize the invisible world of electrical signals. By converting time-varying voltages into a two-dimensional graphical representation on a screen, the CRO provides a real-time window into the behavior of circuits, making it an indispensable tool for diagnostics, research, and design. Whether you are troubleshooting a complex electronic system or studying the fundamental properties of wave propagation, understanding the mechanics of an oscilloscope is a rite of passage for any serious practitioner in the field.

Table of Contents

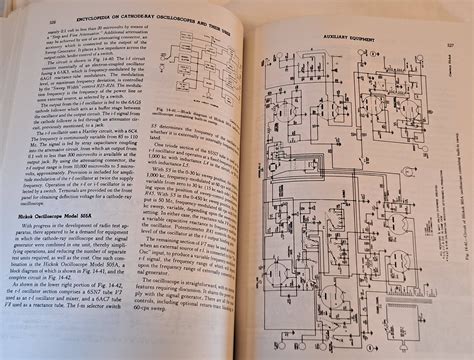

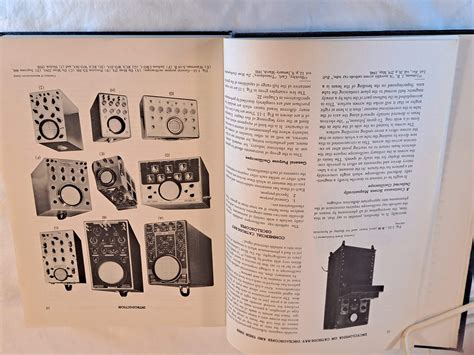

The Evolution and Working Principle of the Cathode Ray Oscilloscope

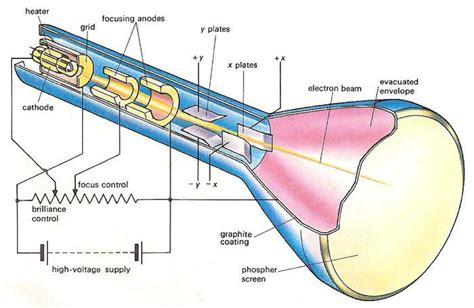

The core mechanism of a Cathode Ray Oscilloscope relies on the precise manipulation of an electron beam. Inside the vacuum tube of the device, an electron gun generates a stream of high-velocity electrons directed toward a phosphor-coated screen. As these electrons strike the screen, they produce a visible point of light. To create a waveform, the device utilizes two primary deflection systems:

Vertical Deflection System: This channel processes the input voltage, amplifying it and passing it through vertical deflection plates, which move the electron beam up and down in proportion to the signal's amplitude.
Horizontal Deflection System: Also known as the "time base," this system generates a sawtooth wave that sweeps the beam across the screen from left to right at a controlled, constant speed.

By combining these two movements, the Cathode Ray Oscilloscope paints a graph of voltage versus time. When the signal is periodic, the electron beam repeatedly traces the same path, resulting in a stable image that the human eye perceives as a stationary waveform.

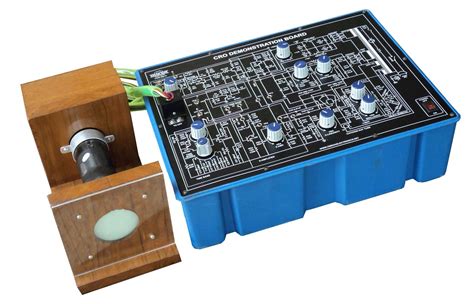

Key Components of a CRO

To master the use of this instrument, one must be familiar with its primary internal components. Each part plays a specific role in ensuring the accuracy and clarity of the displayed signal. The following table provides a quick reference to the essential parts and their specific functions:

Component	Primary Function
Cathode Ray Tube (CRT)	The main vacuum tube housing the electron gun and screen.
Vertical Amplifier	Increases the strength of low-voltage signals for display.
Time Base Generator	Controls the horizontal sweep speed of the electron beam.
Trigger Circuit	Ensures the horizontal sweep starts at the same point in the waveform.
Delay Line	Provides a slight delay to the vertical signal so the trigger has time to act.

Steps to Operate a Cathode Ray Oscilloscope

Setting up a Cathode Ray Oscilloscope for a measurement session requires a methodical approach to ensure both the safety of the user and the accuracy of the readings. Follow these steps for a standard operation:

Power and Calibration: Connect the device to a stable power source and verify the trace by adjusting the intensity and focus knobs. Ensure the "Cal" output is working correctly.
Probe Connection: Attach the probe to the desired channel (Channel 1 or Channel 2). Ensure the probe attenuation matches the setting on the scope (e.g., 1x or 10x).
Signal Coupling: Decide between AC or DC coupling. Use DC coupling to see the total voltage (AC + DC) and AC coupling to block the DC component and focus purely on the ripple or oscillation.
Vertical Scaling: Adjust the Volts/Div knob to fit the signal within the vertical bounds of the screen.
Horizontal Scaling: Use the Time/Div knob to adjust how many wave cycles are visible. A lower setting zooms in on the frequency, while a higher setting allows observation of long-term signal trends.
Triggering: Adjust the Trigger Level knob to stop the waveform from "running" across the screen. This locks the visual starting point of the cycle.

💡 Note: Always ensure the probe ground lead is connected to a common ground point in your circuit to prevent electrical noise and potential damage to the input circuitry of the oscilloscope.

Advanced Applications in Modern Electronics

While digital storage oscilloscopes (DSOs) have become common in high-end industrial settings, the Cathode Ray Oscilloscope remains the preferred choice in many educational and analog-centric environments. Its ability to show high-frequency signals without the aliasing artifacts sometimes found in digital sampling makes it a reliable reference. Engineers often use a Cathode Ray Oscilloscope to perform tasks such as:

Analyzing noise levels in power supply designs.
Verifying the output of oscillators and signal generators.
Measuring the phase shift between two different signals using Lissajous patterns.
Diagnosing timing issues in digital logic pulses.

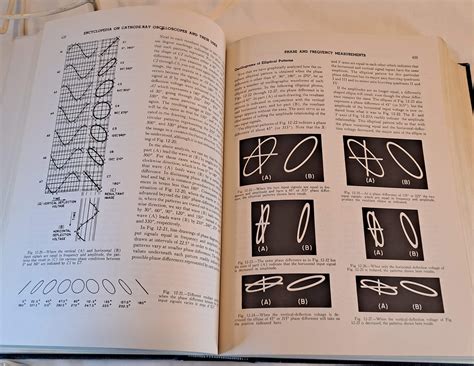

When observing Lissajous figures, the oscilloscope is set to X-Y mode. Instead of using the internal time base, one signal is applied to the horizontal plates and another to the vertical plates. This method is incredibly powerful for comparing frequencies and phase differences between two sources, offering a level of intuitive feedback that is difficult to replicate with numerical-only displays.

Maintenance and Calibration Best Practices

Because a Cathode Ray Oscilloscope contains high-voltage components within its CRT assembly, proper maintenance is vital for longevity. Over time, the phosphor on the internal screen can burn if the beam intensity is left too high for extended periods while the signal is stationary. To maintain your equipment, keep the intensity at the minimum level required for clear viewing and ensure the device is stored in a clean, dust-free environment to protect the sensitive knobs and internal switches from oxidation.
