Car Suspension Diagram

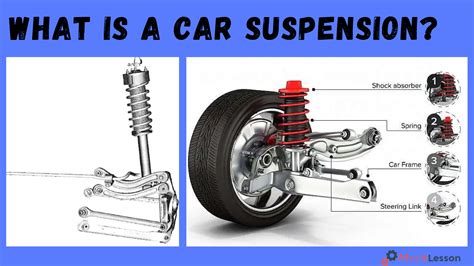

When you are driving down a winding road, the smooth handling of your vehicle often feels like second nature. However, beneath the chassis lies a complex system of interconnected parts working in perfect harmony to absorb road shocks, maintain tire contact with the asphalt, and ensure steering precision. Understanding this mechanism is significantly easier when you refer to a Car Suspension Diagram, which maps out how components like springs, dampers, and linkages interact. Whether you are a DIY enthusiast looking to perform repairs or a curious driver wanting to know why your car handles the way it does, having a clear mental image of these components is essential for vehicle maintenance and performance tuning.

Table of Contents

The Core Components of a Suspension System

A typical automotive suspension setup consists of several critical parts. By visualizing a Car Suspension Diagram, you can identify the primary elements that dictate ride quality. The system is fundamentally designed to balance three factors: comfort, control, and safety. Below are the primary components found in most modern vehicles:

Springs: These act as the primary energy absorbers, compressing and expanding to cushion the impact of bumps or potholes.
Shock Absorbers (Dampers): While springs handle the weight, dampers control the energy released by the springs, preventing the vehicle from bouncing uncontrollably.
Control Arms: These are the hinges that connect the wheel hubs to the frame, allowing the wheels to move up and down while maintaining vertical alignment.
Ball Joints: Pivot points that allow the wheels to turn and move independently according to the road surface.
Bushings: Rubber or polyurethane cushions that prevent metal-on-metal contact, reducing vibrations and noise.
Anti-Roll Bars (Sway Bars): Bars that connect opposite wheels to reduce the amount of body roll when taking corners.

Analyzing Different Suspension Layouts

Not all suspension systems are built the same. Depending on the vehicle's design goals—whether for high-speed performance, heavy-duty hauling, or fuel-efficient commuting—the Car Suspension Diagram will differ significantly. Manufacturers choose between independent and dependent systems, each offering unique benefits.

Suspension Type	Common Usage	Primary Advantage
MacPherson Strut	Front suspension in compact cars	Space-saving and cost-effective
Double Wishbone	Performance and luxury vehicles	Excellent handling and camber control
Solid Axle	Trucks and off-road vehicles	Superior durability and load capacity
Multi-Link	Modern sedans and SUVs	Balanced comfort and road-holding

Interpreting Your Car Suspension Diagram

When looking at a schematic, the first thing to note is the relationship between the wheel assembly and the vehicle frame. A well-detailed Car Suspension Diagram will show you the pivot points—specifically the control arms—which determine the "geometry" of the car. This geometry is what professional technicians adjust during a wheel alignment service.

If you are attempting to diagnose a noise or a handling issue, use the diagram to track the path of kinetic energy. For instance, if you hear a clunking sound when hitting a bump, the diagram will point you toward the bushings or the sway bar end links, which are the most frequent culprits for such wear-and-tear issues.

Signs of Suspension Wear

Your vehicle will often communicate through "symptoms" when the suspension parts need attention. If you consult your Car Suspension Diagram, you can pinpoint the general area where these symptoms originate. Common warning signs include:

Uneven Tire Wear: Often indicates an alignment issue or a damaged control arm bushing.
Excessive Bouncing: A clear sign that the shock absorbers have lost their internal seal pressure and are no longer damping effectively.
Vehicle Pulling: If the car drifts to one side, it may indicate a damaged tie rod or an alignment specification that has shifted.
Nose Diving: If the front end dips significantly when braking, your struts are likely at the end of their service life.

The Importance of Regular Inspection

Maintaining the suspension is not just about ride comfort; it is a critical safety matter. Worn shocks increase the stopping distance of your vehicle by nearly 20% in some scenarios because the tires lose proper contact with the road. By keeping a Car Suspension Diagram handy during your routine maintenance checks, you can visually compare the integrity of your components against the factory standards.

Also read: Emo Haircut For Men

Most experts recommend inspecting your suspension system every 15,000 to 20,000 miles. During these inspections, check for leaking fluid around the shock bodies, torn rubber in the bushings, or excessive play in the ball joints. Catching these small issues early prevents the "domino effect," where one worn part causes excessive stress on other, more expensive components like wheel bearings or steering racks.

💡 Note: When replacing suspension parts, it is highly recommended to replace them in pairs (both left and right sides) to ensure the handling characteristics remain balanced and predictable on the road.

Mastering the layout of your vehicle’s undercarriage provides a profound advantage in maintaining your car’s longevity and your personal safety. By utilizing a Car Suspension Diagram, you transform from a passive driver into an informed owner capable of identifying potential mechanical failures before they become expensive breakdowns. Remember that the suspension is a system of interconnected parts; when one component wears out, it puts added strain on the rest of the assembly. Regular inspections and a solid grasp of how these components interact are the keys to a smooth, responsive, and safe driving experience for years to come. Whether you choose to handle minor maintenance yourself or take your vehicle to a professional, having this knowledge ensures that your car remains a reliable machine that performs exactly as the manufacturer intended.
