Upgrading your car audio system is one of the most rewarding DIY projects you can undertake. Whether you are replacing a faulty factory unit or installing a high-end aftermarket receiver with Bluetooth and Apple CarPlay, the process often feels daunting due to the complex web of wires behind the dashboard. Understanding your Car Stereo Wiring Diagram is the foundational step that ensures your speakers produce crystal-clear sound, your memory settings remain saved, and—most importantly—you do not blow a fuse or damage your vehicle's electrical system. This guide will walk you through the essential color codes, tools, and best practices to ensure your installation is professional, safe, and efficient.
Understanding Standard Wiring Color Codes
While vehicle manufacturers may occasionally use proprietary harnesses, there is an industry-standard color-coding system that most aftermarket stereo companies follow. Familiarizing yourself with these colors is crucial before you start splicing any wires. Using the correct Car Stereo Wiring Diagram prevents the common "no sound" or "unit won't power on" scenarios that plague amateur installers.

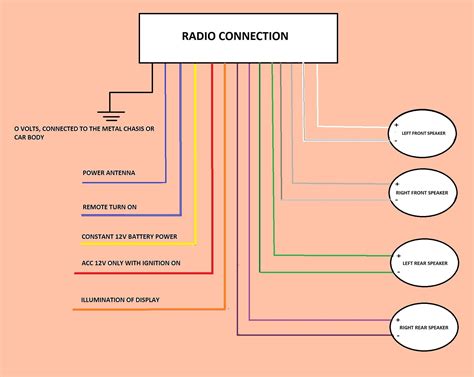

Most aftermarket wire harnesses utilize the following standard color conventions:
- Yellow: Constant 12V Power (Battery) - This wire keeps your station presets and clock settings saved.
- Red: Switched 12V Power (Accessory) - This triggers the radio to turn on only when the ignition is in the 'On' or 'Accessory' position.
- Black: Ground - Should be connected to a clean, unpainted metal surface or the factory ground wire.
- Blue/White: Remote Turn-On/Amp Trigger - Sends a signal to power on your external amplifier.
- Orange: Illumination/Dimmer - Dims the radio display when you turn on your headlights.
- Purple/Green/White/Gray: Speaker wires - These come in pairs, one solid color and one with a black stripe, representing positive (+) and negative (-) terminals.
Common Speaker Wiring Configurations

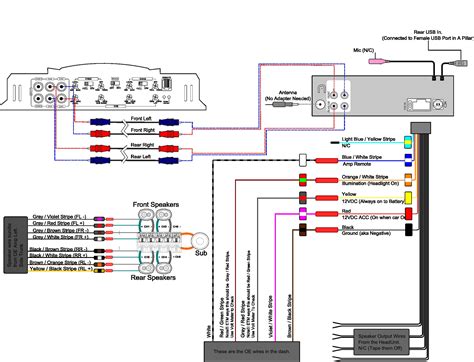

When looking at a Car Stereo Wiring Diagram, you will notice that speaker wires are always paired. Mixing up the positive and negative terminals will result in "out-of-phase" audio, which causes poor bass response and a hollow, thin sound. To keep your system optimized, refer to the following standard pairing logic:
| Speaker Position | Positive (+) Color | Negative (-) Color |
|---|---|---|
| Left Front | White | White/Black |
| Right Front | Gray | Gray/Black |
| Left Rear | Green | Green/Black |
| Right Rear | Purple | Purple/Black |
Essential Tools for a Successful Installation
Before you begin the physical installation, ensure you have the right equipment. Using the wrong tools, such as improper crimpers or loose electrical tape, can lead to intermittent audio failures or electrical shorts. A clean installation requires the following:
- Wire Strippers/Crimpers: Essential for stripping insulation without damaging the copper strands.
- Butt Connectors or Solder: Use insulated butt connectors for a secure, semi-permanent hold, or solder and heat-shrink tubing for a professional-grade, vibration-resistant connection.
- Digital Multimeter: The most important tool to verify voltage if your unit fails to power up.
- Plastic Pry Tools: Use these to remove dashboard panels without scratching or damaging the interior trim.
- Vehicle-Specific Wiring Harness Adapter: Buying a harness that plugs directly into your factory connector is highly recommended to avoid cutting original factory wires.
⚠️ Note: Always disconnect the negative terminal of your car battery before beginning the wiring process to prevent short-circuiting the electrical system or blowing the radio's internal fuse.
Step-by-Step Wiring Process
Once you have gathered your tools and identified the wires using your Car Stereo Wiring Diagram, follow these steps to assemble your new system:
- Prepare the Harness: Connect the wires from your new stereo's harness to the vehicle-specific harness adapter by matching colors (Yellow to Yellow, Red to Red, etc.).
- Secure Connections: Use crimp connectors or solder every wire securely. Do not rely on electrical tape alone, as it will dry out and lose its grip over time.
- Test Before Assembly: Before pushing the unit back into the dash, connect it to the vehicle's plug, reconnect the battery, and test all functions: power, volume, fade/balance, and station memory.
- Cable Management: Use zip ties to bundle loose wires together. This prevents rattles inside the dashboard and keeps the area behind the unit organized.
💡 Note: If your vehicle has a factory-installed amplifier, you may need a specialized harness interface to maintain audio signal compatibility; verify this requirement before attempting a standard wiring installation.
Troubleshooting Common Wiring Issues
If you encounter issues during or after the installation, don't panic. The vast majority of problems are related to the ground or the power wires. If the unit does not turn on, check the Car Stereo Wiring Diagram again to ensure the Red and Yellow wires are receiving the correct voltage. Use your multimeter to check that the Red wire only has voltage when the key is turned, and the Yellow wire always has voltage. If you hear sound coming from only one side of the car, check the speaker wire connections for a loose crimp or a short against the vehicle frame.
Properly wiring your car stereo is more than just connecting colors; it is about ensuring the longevity and quality of your mobile audio experience. By taking the time to crimp or solder every connection correctly and utilizing a vehicle-specific harness, you protect your car’s electrical integrity while enjoying superior sound. Always double-check your connections against your specific model’s Car Stereo Wiring Diagram before finalizing the install. With patience and attention to detail, you will achieve a factory-finished look and performance that lasts for years to come.
